Transmission

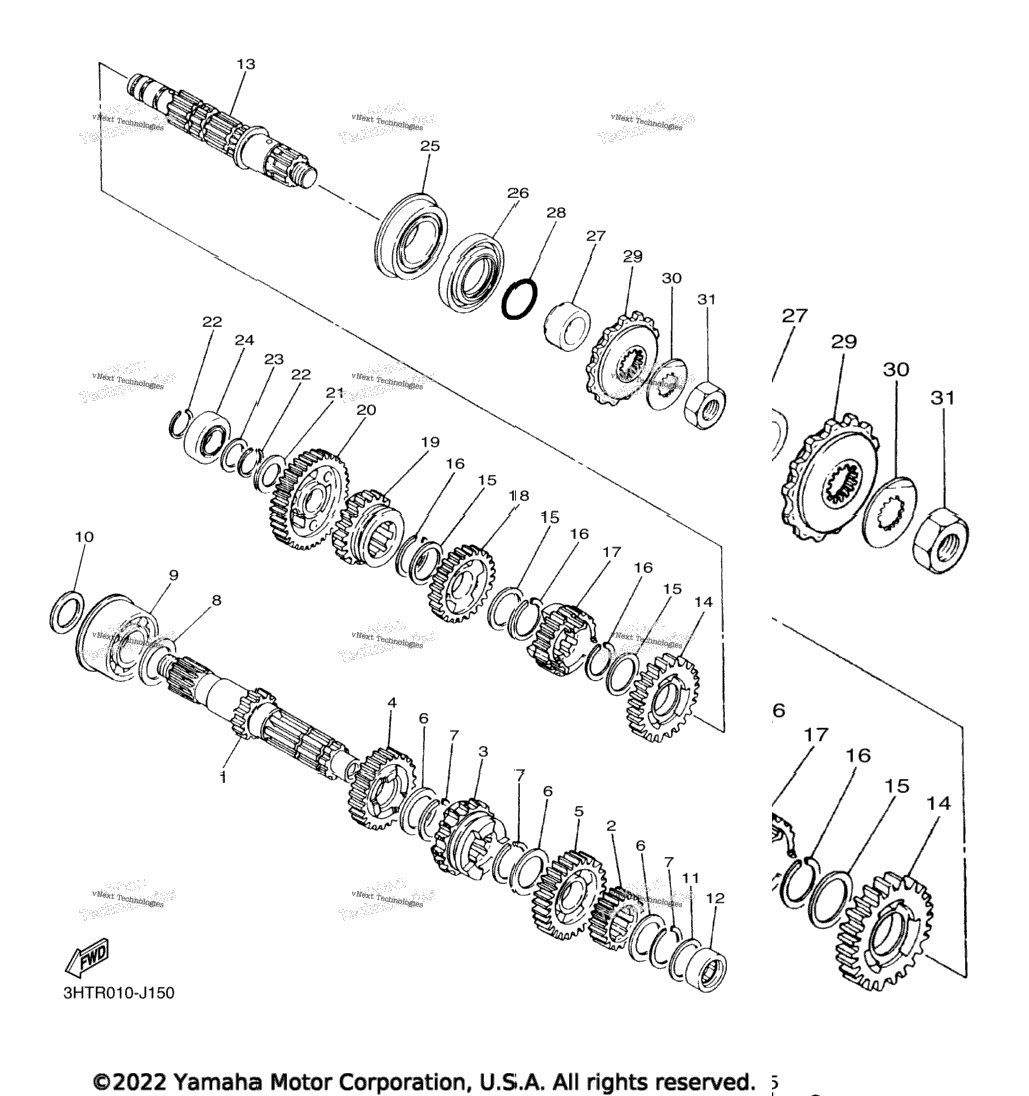

Схема Transmission
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 3HT-17411-00-00 | Axle, Main (14T) | 1 шт. | — | |
|
| 2 | 583-17121-00-00 | Gear, 2Nd Pinion (18T) | 1 шт. | — | |
|
| 3 | 3GW-17131-00-00 | Gear, 3Rd Pinion (21T) | 1 шт. | — | |
|
| 4 | 583-17141-00-00 | Gear, 4Th Pinion (24T) | 1 шт. | — | |
|
| 5 | 3GW-17151-00-00 | Gear, 5Th Pinion (27T) | 1 шт. | — | |
|
| 6 | 90201-253K0-00 | Washer, Plate (T=1.0) | 3 шт. | — | |
|
| 7 | 93440-25020-00 | Circlip | 3 шт. | — | |
|
| 8 | 168-17428-01-00 | Shim 2 | 1 шт. | — | |
|
| 9 | 93306-20546-00 | Bearing | 1 шт. | — | |
|
| 10 | 90201-252A4-00 | Washer, Plate | 1 шт. | — | |
|
| 11 | 90201-20266-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 12 | 93311-42077-00 | Bearing | 1 шт. | — | |
|
| 13 | 3HT-17402-R0-00 | Drive Axle Assy | 1 шт. | — | |
|
| 14 | 583-17221-00-00 | Gear, 2Nd Wheel (28T) | 1 шт. | — | |
|
| 15 | 90201-253K0-00 | Washer, Plate (T=1.0) | 3 шт. | — | |
|
| 16 | 93440-25020-00 | Circlip | 3 шт. | — | |
|
| 17 | 3GW-17251-00-00 | Gear, 5Th Wheel (21T) | 1 шт. | — | |
|
| 18 | 3GW-17231-00-00 | Gear, 3Rd Wheel (25T) | 1 шт. | — | |
|
| 19 | 583-17241-00-00 | Gear, 4Th Wheel (22T) | 1 шт. | — | |
|
| 20 | 583-17211-00-00 | Gear, 1St Wheel (33T) | 1 шт. | — | |
|
| 21 | 90201-20278-00 | Washer, Plate | 1 шт. | — | |
|
| 22 | 93410-20038-00 | Circlip | 2 шт. | — | |
|
| 23 | 90201-20266-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 24 | 93313-32008-00 | Bearing | 1 шт. | — | |
|
| 25 | 93306-30517-00 | Bearing | 1 шт. | — | |
|
| 26 | 93102-35469-00 | Oil Seal | 1 шт. | — | |
|
| 27 | 90387-250V7-00 | Collar | 1 шт. | — | |
|
| 28 | 93210-22298-00 | O-Ring | 1 шт. | — | |
|
| 29 | 3FH-17460-00-00 | Sprocket, Drive (19T) | 1 шт. | — | |
|
| 30 | 90215-21256-00 | Washer, Lock | 1 шт. | — | |
|
| 31 | 90179-18003-00 | Nut | 1 шт. | — | |
|
