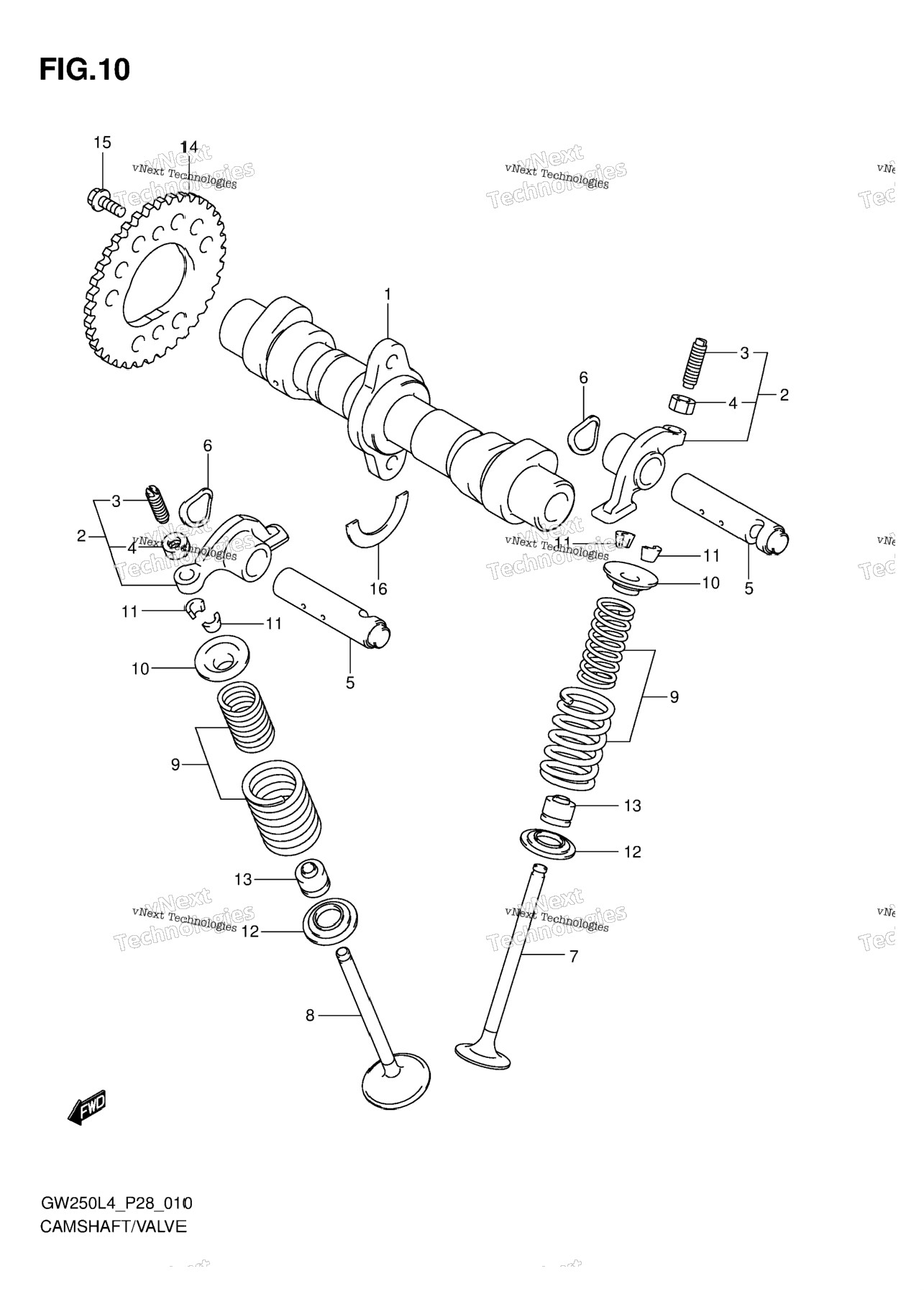

| 1 | 12710-48H00 | CAMSHAFT | 0 шт. | — | |
|
| 2 | 12840-20H10 | ARM, VALVE ROCKER | 4 шт. | — | |
|
| 3 | 12842-49220 | SCREW, TAPPET ADJUSTING | 0 шт. | — | |
|
| 4 | 12843-27A10 | NUT, TAPPET ADJUSTING | 0 шт. | — | |
|
| 5 | 12861-48H00 | SHAFT, VALVE ROCKER ARM | 4 шт. | — | |
|
| 6 | 09164-12018 | WASHER | 4 шт. | — | |
|
| 7 | 12911-20H10 | VALVE, INTAKE | 2 шт. | — | |
|
| 8 | 12912-20H10 | VALVE, EXHAUST | 2 шт. | — | |
|
| 9 | 12920-48H00 | SPRING SET, VALVE | 4 шт. | — | |
|
| 10 | 12931-27A30 | RETAINER, VALVE SPRING | 4 шт. | — | |
|
| 11 | 12932-27A10 | COTTER, VALVE | 8 шт. | — | |
|
| 12 | 12933-81410 | SEAT, VALVE SPRING | 4 шт. | — | |
|
| 13 | 09289-05016 | OIL SEAL (5X10X8) | 0 шт. | — | |
|
| 14 | 12741-48H00 | SPROCKET, CAMSHAFT (NT:38) | 1 шт. | — | |
|
| 15 | 09111-06027 | BOLT (6X12.5) | 2 шт. | — | |
|
| 16 | 09390-22002 | C RING | 1 шт. | — | |
|
