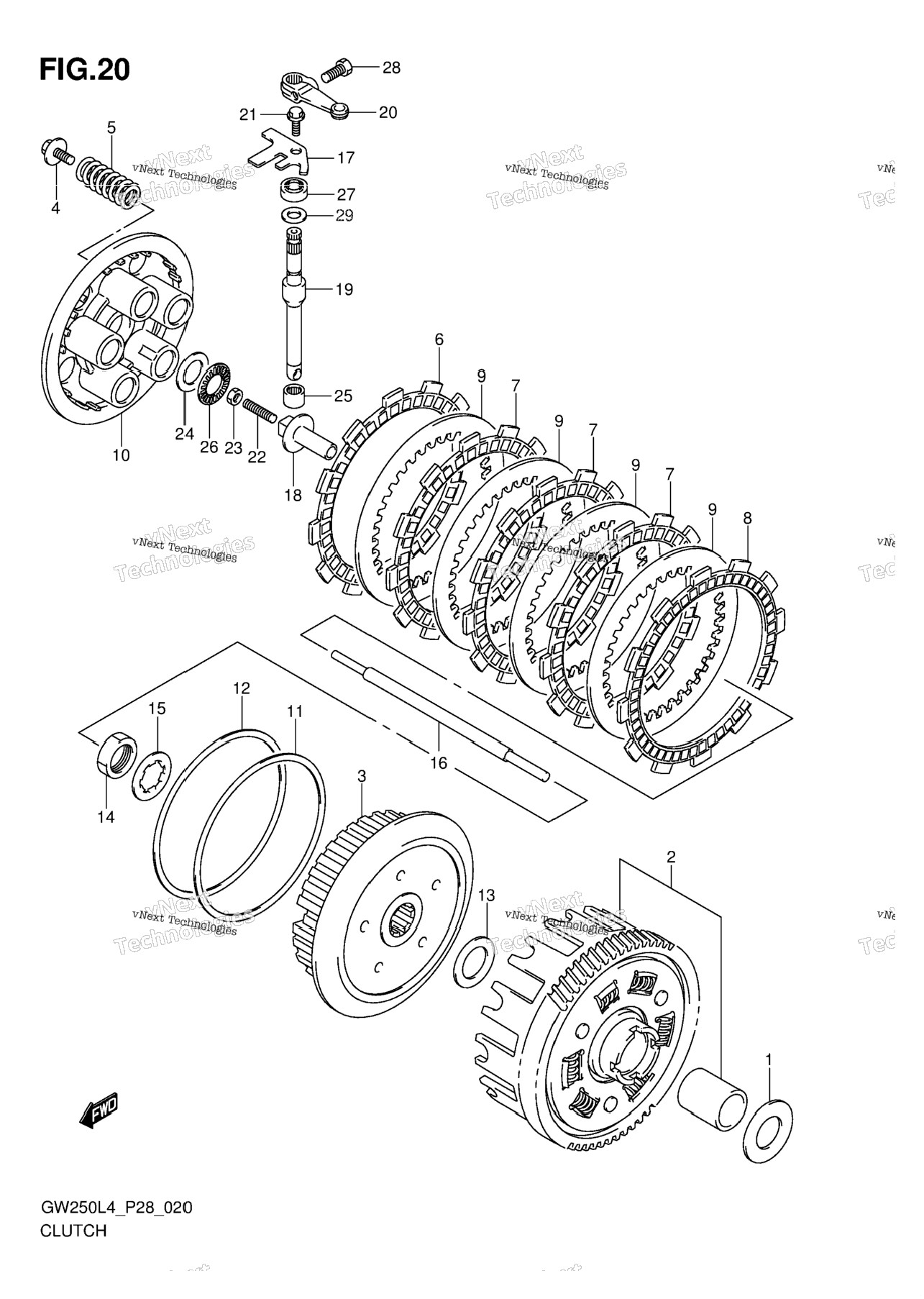

| 1 | 08211-22363 | WASHER | 1 шт. | — | |
|
| 2 | 21200-48880 | GEAR ASSY, PRIMARY DRIVEN (NT:68) | 1 шт. | — | |
|
| 3 | 21411-48H00 | HUB, CLUTCH SLEEVE | 1 шт. | — | |
|
| 4 | 21412-48H00 | BOLT, CLUTCH SPRING | 5 шт. | — | |
|
| 5 | 21413-48H00 | SPRING, CLUTCH | 5 шт. | — | |
|
| 6 | 21441-48H00 | PLATE, CLUTCH DRIVE NO.1 (T:3.0) | 1 шт. | — | |
|
| 7 | 21441-48H10 | PLATE, CLUTCH DRIVE NO.2 (T:3.0) | 3 шт. | — | |
|
| 8 | 21442-48H00 | PLATE, CLUTCH DRIVE NO.3 (T:3.5) | 1 шт. | — | |
|
| 9 | 21451-48H00 | PLATE, CLUTCH DRIVEN (T:2.0) | 4 шт. | — | |
|
| 10 | 21462-48H00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 11 | 21471-48H00 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 12 | 21472-48H00 | WASHER, CLUTCH SLEEVE HUB WAVE | 1 шт. | — | |
|
| 13 | 21252-48H00 | WASHER, THRUST | 1 шт. | — | |
|
| 14 | 09140-22005 | NUT | 1 шт. | — | |
|
| 15 | 09167-22029 | WASHER | 1 шт. | — | |
|
| 16 | 23110-48H00 | ROD, CLUTCH PUSH | 1 шт. | — | |
|
| 17 | 23117-48H00 | RETAINER, CL RELEASE OIL SEAL | 0 шт. | — | |
|
| 18 | 23121-48H00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 19 | 23122-48H02 | CAMSHAFT, CLUTCH RELEASE | 0 шт. | — | |
|
| 20 | 23271-48H00 | ARM, CLUTCH RELEASE | 0 шт. | — | |
|
| 21 | 09103-06233 | BOLT (6X12) | 1 шт. | — | |
|
| 22 | 09134-06018 | SCREW | 1 шт. | — | |
|
| 23 | 09140-06023 | NUT | 1 шт. | — | |
|
| 24 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 25 | 09263-10L01 | BEARING (10X14X10) | 1 шт. | — | |
|
| 26 | 09263-15L01 | BEARING (15X28X2) | 1 шт. | — | |
|
| 27 | 09285-10L01 | OIL SEAL | 1 шт. | — | |
|
| 28 | 01500-0616A | BOLT | 1 шт. | — | |
|
| 29 | 09160-12119 | WASHER (12.5X17X1) | 1 шт. | — | |
|
