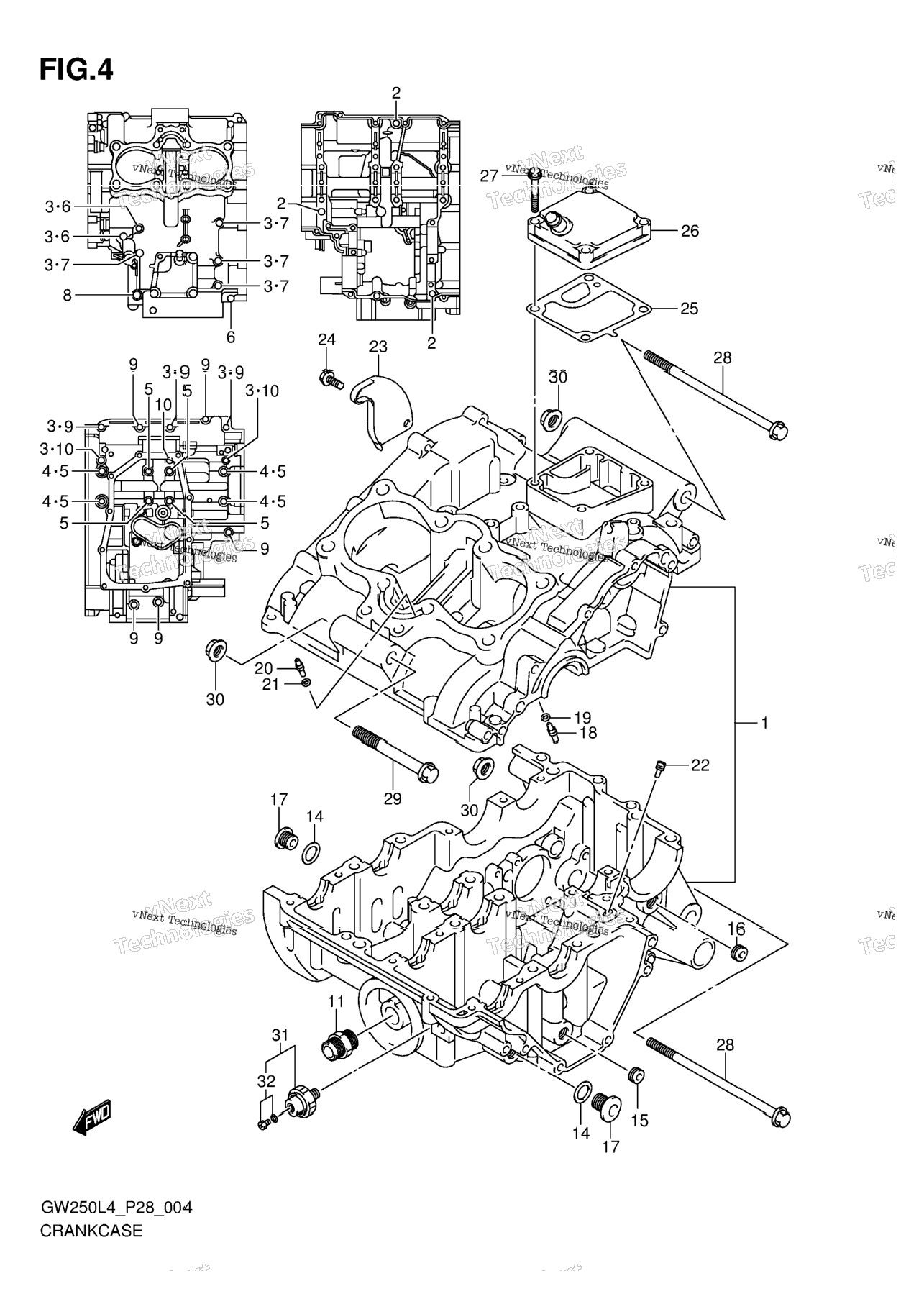

| 1 | 11300-48871 | CRANKCASE SET | 0 шт. | — | |
|
| 2 | 04211-11169 | .PIN | 3 шт. | — | |
|
| 3 | 09168-06L04 | GASKET (5.8X13X1.8) | 0 шт. | — | |
|
| 4 | 09168-08035 | GASKET (8.2X14X1) | 0 шт. | — | |
|
| 5 | 09103-08133 | BOLT (8X105) | 0 шт. | — | |
|
| 7 | 01547-0655A | BOLT | 4 шт. | — | |
|
| 8 | 01550-0855A | BOLT | 1 шт. | — | |
|
| 9 | 01547-0635A | BOLT | 3 шт. | — | |
|
| 9 | 01547-0635A | BOLT | 8 шт. | — | |
|
| 10 | 01547-0690A | .BOLT | 3 шт. | — | |
|
| 11 | 16591-48H00 | UNION, OIL FILTER STAND | 1 шт. | — | |
|
| 13 | 12228-17E00-0J0 | BEARING,CRANK THRUST (BROWN) | 0 шт. | — | |
|
| 13 | 12228-17E00-0L0 | BEARING,CRANK THRUST (NO COLOR) | 0 шт. | — | |
|
| 13 | 12228-17E00-0G0 | BEARING,CRANK THRUST (ORANGE) | 0 шт. | — | |
|
| 13 | 12228-17E00-0H0 | BEARING,CRANK THRUST (PINK) | 0 шт. | — | |
|
| 13 | 12228-17E00-0K0 | BEARING,CRANK THRUST (PURPLE) | 0 шт. | — | |
|
| 13 | 12228-17E00-0F0 | BEARING,CRANK THRUST (WHITE) | 1 шт. | — | |
|
| 13 | 12228-17E00-0E0 | BEARING,CRANK THRUST (YELLOW) SEE ILLUSTRATION ON FIG.7 | 1 шт. | — | |
|
| 13 | 12228-17E00-0E0 | BEARING,CRANK THRUST (YELLOW) SEE ILLUSTRATION ON FIG.7 | 1 шт. | — | |
|
| 14 | 09168-14L01 | GASKET (14X18.3X4.8) | 3 шт. | — | |
|
| 15 | 11322-48H00 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 16 | 09246-06001 | PLUG (1/4PT, H:7.5) | 0 шт. | — | |
|
| 17 | 09248-14013 | PLUG (14X12) | 3 шт. | — | |
|
| 18 | 11390-48H00 | JET, PISTON COOLING | 0 шт. | — | |
|
| 20 | 11329-48H00 | JET, OIL GALLERY CYLINDER | 0 шт. | — | |
|
| 21 | 09280-04004 | O RING (D:1.2,ID:4) | 2 шт. | — | |
|
| 21 | 09280-04004 | O RING (D:1.2,ID:4) | 1 шт. | — | |
|
| 22 | 11313-48H00 | JET, T/M COOLING | 0 шт. | — | |
|
| 23 | 11317-48H00 | PLATE, OIL SEPARATOR | 0 шт. | — | |
|
| 24 | 01547-0612A | BOLT | 2 шт. | — | |
|
| 25 | 11318-48H00 | GASKET, BREATHER COVER | 1 шт. | — | |
|
| 26 | 11330-48H00 | COVER, BREATHER | 0 шт. | — | |
|
| 27 | 01547-0630A | BOLT | 4 шт. | — | |
|
| 28 | 09103-10115 | BOLT (10X155) | 2 шт. | — | |
|
| 29 | 09103-10445 | BOLT (10X85) | 1 шт. | — | |
|
| 30 | 09159-10L06 | NUT | 3 шт. | — | |
|
| 31 | 37820-33D10 | SWITCH ASSY, OIL PRESSURE | 1 шт. | — | |
|
| 32 | 37822-33D00 | .BOLT,OIL PRESSURE SWITCH | 1 шт. | — | |
|
