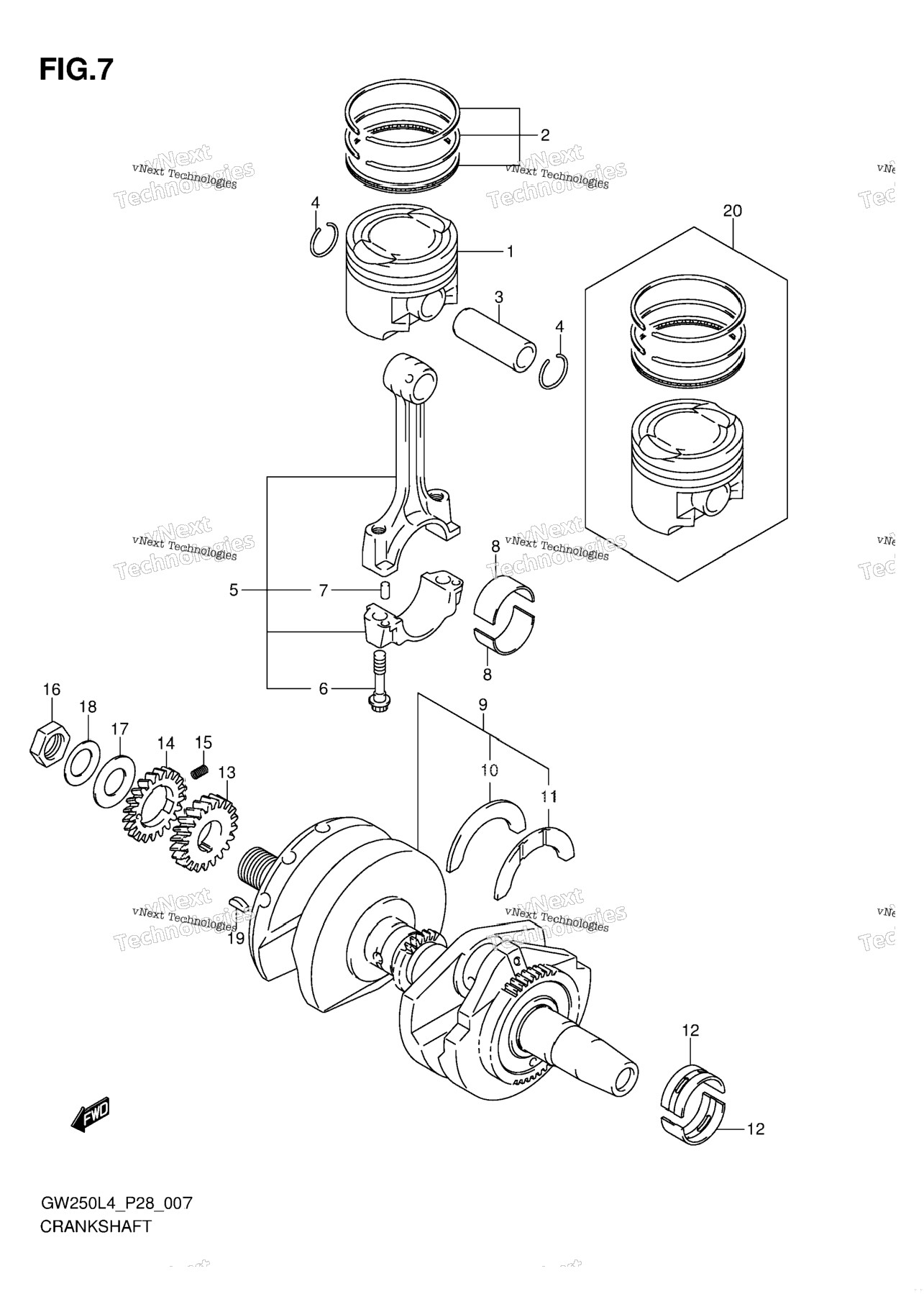

| 1 | 12111-48H00-0F0 | PISTON (YELLOW) | 0 шт. | — | |
|
| 2 | 12140-48H00 | RING SET, PISTON | 0 шт. | — | |
|
| 3 | 12151-48H00 | PIN, PISTON | 2 шт. | — | |
|
| 4 | 09381-15001 | CIRCLIP | 4 шт. | — | |
|
| 5 | 12160-48H00 | CONNROD ASSY | 2 шт. | — | |
|
| 6 | 12163-35F00 | BOLT, CONNROD | 4 шт. | — | |
|
| 7 | 04221-04089 | .PIN | 4 шт. | — | |
|
| 8 | 12164-39F00-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 8 | 12164-39F00-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 8 | 12164-39F00-0A0 | BEARING, CRANK PIN (GREEN) | 4 шт. | — | |
|
| 8 | 12164-39F00-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
| 9 | 12200-48840 | CRANKSHAFT SET CZHS | 0 шт. | — | |
|
| 9 | 12200-48830 | CRANKSHAFT SET SMC | 1 шт. | — | |
|
| 11 | 12228-17E00-0E0 | BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 11 | 12228-17E00-0J0 | BEARING, THRUST RH (BROWN) | 0 шт. | — | |
|
| 11 | 12228-17E00-0L0 | BEARING, THRUST RH (NO COLOR) | 0 шт. | — | |
|
| 11 | 12228-17E00-0G0 | BEARING, THRUST RH (ORANGE) | 0 шт. | — | |
|
| 11 | 12228-17E00-0H0 | BEARING, THRUST RH (PINK) | 0 шт. | — | |
|
| 11 | 12228-17E00-0K0 | BEARING, THRUST RH (PURPLE) | 0 шт. | — | |
|
| 11 | 12228-17E00-0F0 | BEARING, THRUST RH (WHITE) | 1 шт. | — | |
|
| 11 | 12228-17E00-0E0 | BEARING, THRUST RH (YELLOW) | 1 шт. | — | |
|
| 12 | 12229-48H10-0B0 | BEARING, CRANKSHAFT (BLACK) | 8 шт. | — | |
|
| 12 | 12229-48H10-0C0 | BEARING ,CRANKSHAFT (BROWN) | 8 шт. | — | |
|
| 12 | 12229-48H10-0A0 | BEARING, CRANKSHAFT (GREEN) | 8 шт. | — | |
|
| 12 | 12229-48H10-0D0 | BEARING, CRANKSHAFT (YELLOW) | 8 шт. | — | |
|
| 13 | 21111-48H00 | GEAR, PRIMARY DRIVE (NT:21) | 0 шт. | — | |
|
| 14 | 21112-48H00 | GEAR, PRIMARY DRIVE NO.2 (NT:21) | 1 шт. | — | |
|
| 15 | 21114-35C00 | SPRING, PRI DRIVE GEAR | 3 шт. | — | |
|
| 16 | 09140-18023 | NUT | 0 шт. | — | |
|
| 17 | 09160-18039 | WASHER (18X36X1.5) | 1 шт. | — | |
|
| 18 | 09164-18012 | WASHER | 1 шт. | — | |
|
| 19 | 09420-04008 | KEY | 1 шт. | — | |
|
| 20 | 12100-48H00-050 | PISTON SET (OS:0.5) OPT | 2 шт. | — | |
|
