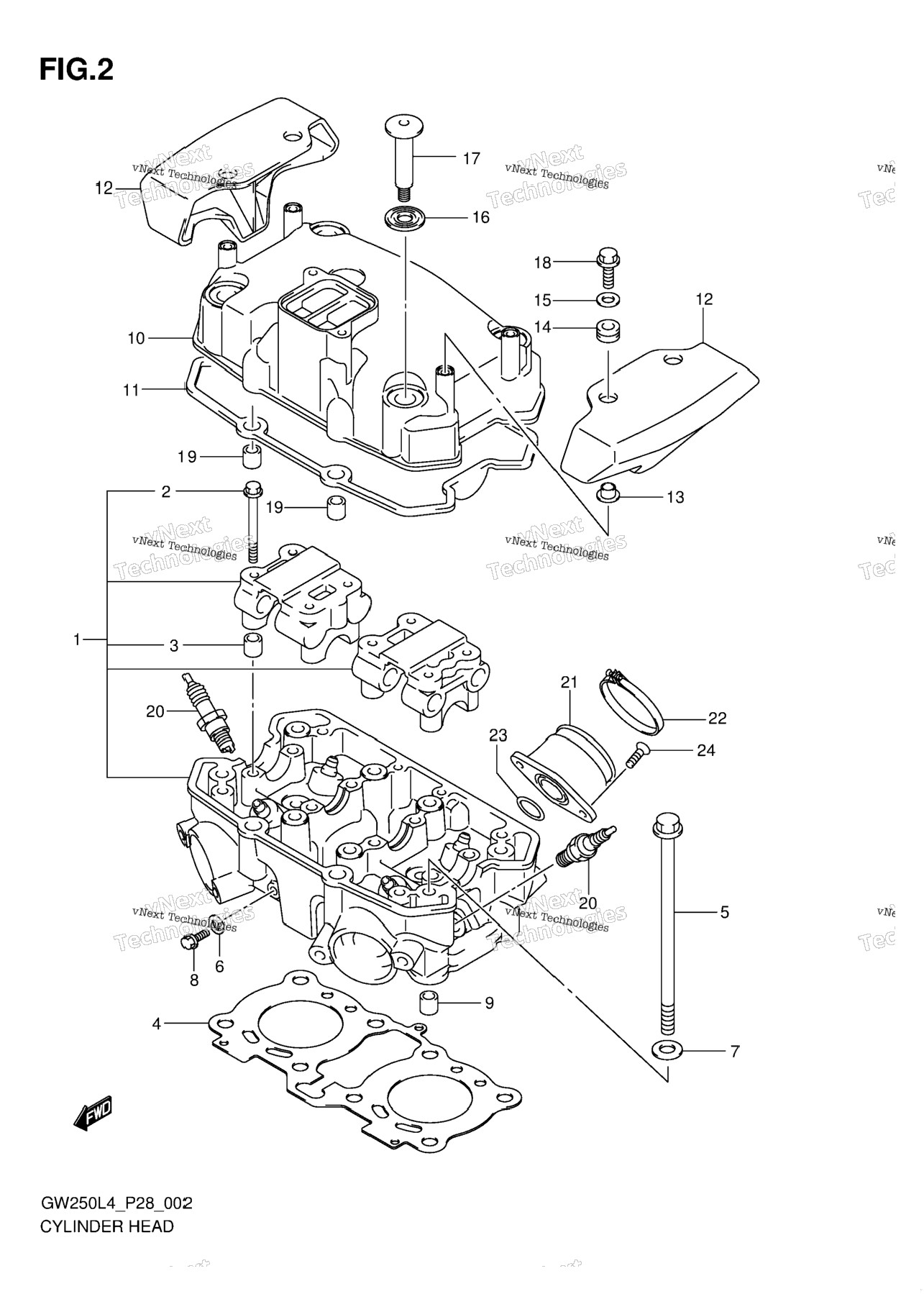

| 1 | 11100-48H00 | HEAD ASSY, CYLINDER | 0 шт. | — | |
|
| 2 | 09103-06220 | BOLT (6X60) | 8 шт. | — | |
|
| 3 | 09206-08011 | PIN (8X11) | 4 шт. | — | |
|
| 4 | 11141-48H00 | GASKET, CYLINDER HEAD | 1 шт. | — | |
|
| 5 | 09103-08449 | BOLT (8X165) | 8 шт. | — | |
|
| 6 | 09168-06L04 | GASKET (5.8X13X1.8) | 0 шт. | — | |
|
| 7 | 09168-08036 | GASKET (8.5X17X2.3) | 8 шт. | — | |
|
| 8 | 01550-0612A | BOLT | 2 шт. | — | |
|
| 10 | 11171-48H00 | COVER, CYLINDER HEAD | 0 шт. | — | |
|
| 11 | 11173-48H00 | GASKET, CYLINDER HEAD COVER | 1 шт. | — | |
|
| 12 | 11174-48H00 | CAP, CYLINDER HEAD COVER | 2 шт. | — | |
|
| 13 | 11177-48H00 | SPACER, HEAD COVER CAP | 4 шт. | — | |
|
| 14 | 11181-48H00 | CUSHION, HEAD COVER CAP | 0 шт. | — | |
|
| 15 | 09160-06077 | WASHER (6.5X20X1.2) | 4 шт. | — | |
|
| 16 | 11191-27E60 | WASHER, CYLINDER HEAD COVER | 4 шт. | — | |
|
| 17 | 09106-07022 | BOLT (7X57) | 4 шт. | — | |
|
| 18 | 01547-0620A | BOLT | 4 шт. | — | |
|
| 19 | 04211-11129 | PIN | 2 шт. | — | |
|
| 19 | 04211-11129 | PIN | 2 шт. | — | |
|
| 20 | 09482-00516 | SPARK PLUG (CR7E) NGK | 2 шт. | — | |
|
| 20 | 09482-00515 | SPARK PLUG (U22ESR-N) DENSO | 2 шт. | — | |
|
| 21 | 13110-48H00 | PIPE, INTAKE | 2 шт. | — | |
|
| 22 | 13170-48H00 | CLAMP, INTAKE PIPE | 2 шт. | — | |
|
| 23 | 09280-30L01 | O RING (D:2.3,ID:29.7) | 2 шт. | — | |
|
| 24 | 02122-0616A | SCREW | 4 шт. | — | |
|
