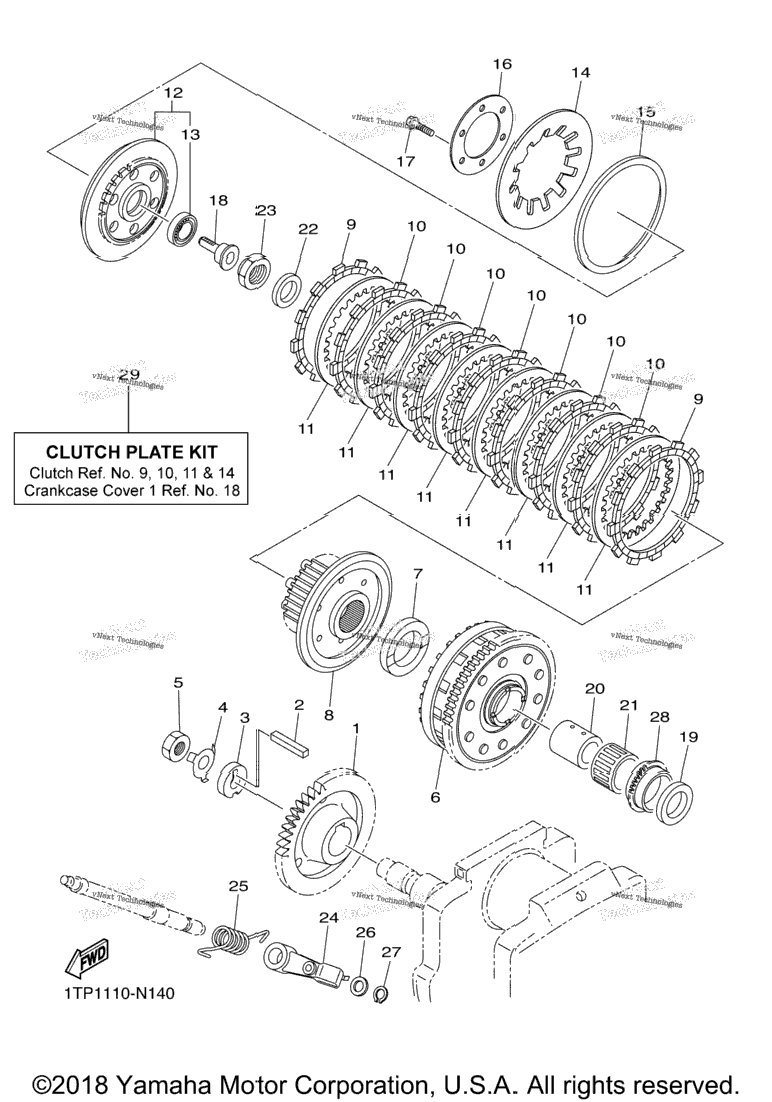

| 1 | 5S7-16111-00-00 | Gear, Primary Drive | 1 шт. | — | |
|
| 2 | 4WM-16193-00-00 | Key, Feather | 1 шт. | — | |
|
| 3 | 3D8-16181-10-00 | Spacer 1 | 1 шт. | — | |
|
| 4 | 90215-18003-00 | Washer, Lock | 1 шт. | — | |
|
| 5 | 90170-18008-00 | Nut | 1 шт. | — | |
|
| 6 | 1TP-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 7 | 5YU-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 8 | 3D8-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 9 | 341-16321-20-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 2 шт. | — | |
|
| 10 | 5JW-16321-10-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 11 | 2H7-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH PLATE KIT | 8 шт. | — | |
|
| 12 | 3D8-16350-00-00 | Pressure Plate Assy | 1 шт. | — | |
|
| 13 | 93306-00304-00 | . Bearing | 1 шт. | — | |
|
| 14 | 5S7-16334-00-00 | Spring, Clutch 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 15 | 36Y-16335-00-00 | Housing, Spring | 1 шт. | — | |
|
| 16 | 1TX-16352-00-00 | Plate, Pressure 2 | 1 шт. | — | |
|
| 17 | 97002-06025-00 | Bolt | 6 шт. | — | |
|
| 18 | 4XV-16356-01-00 | Rod, Push 1 | 1 шт. | — | |
|
| 19 | 3D8-16164-10-00 | Plate, Thrust 2 | 1 шт. | — | |
|
| 20 | 90387-26006-00 | Collar | 1 шт. | — | |
|
| 21 | 93310-33560-00 | Bearing | 1 шт. | — | |
|
| 22 | 90208-20001-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 23 | 90179-20007-00 | Nut | 1 шт. | — | |
|
| 24 | 5S7-16340-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 25 | 90508-18040-00 | Spring, Torsion | 1 шт. | — | |
|
| 26 | 90201-10029-00 | Washer, Plate | 1 шт. | — | |
|
| 27 | 99009-10400-00 | Circlip | 1 шт. | — | |
|
| 28 | 3D8-13354-10-00 | Sprocket, Drive | 1 шт. | — | |
|
| 29 | 1TP-W001G-00-00 | Clutch Plate Kit NOT SHOWN | 1 шт. | — | |
|
