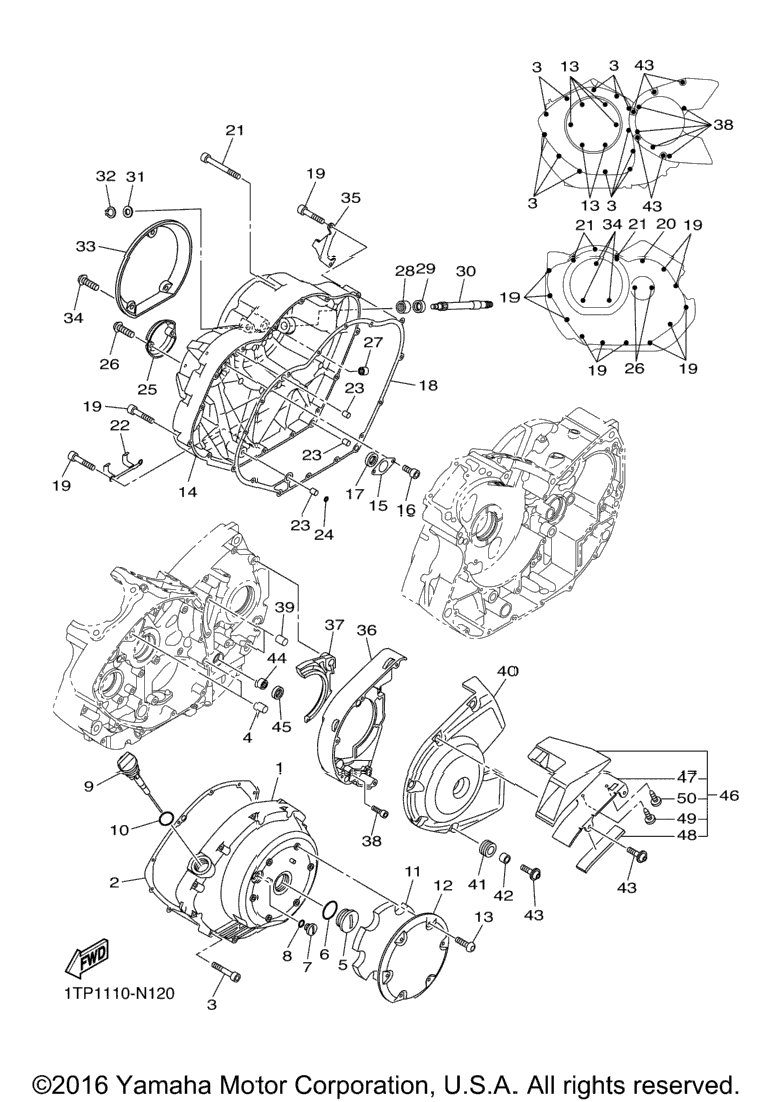

| 1 | 5S7-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 3D8-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 5 | 90340-36078-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 6 | 93210-357A3-00 | O-Ring | 1 шт. | — | |
|
| 7 | 90340-14117-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 8 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 9 | 5S7-15362-10-00 | Plug, Oil Level | 1 шт. | — | |
|
| 10 | 93210-27370-00 | O-Ring | 1 шт. | — | |
|
| 11 | 5S7-1542A-00-00 | Damper 1 | 1 шт. | — | |
|
| 12 | 1TP-15492-00-00 | Cover | 1 шт. | — | |
|
| 14 | 5S7-15421-01-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 15 | 3D8-15388-00-00 | Plate, Bearing Cover | 1 шт. | — | |
|
| 16 | 90110-06182-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 17 | 93101-14102-00 | Oil Seal | 1 шт. | — | |
|
| 18 | 3D8-15461-00-00 | Gasket, Crankcase Cover 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 19 | 90110-06086-00 | Bolt, Hexagon Socket Head | 11 шт. | — | |
|
| 19 | 90110-06086-00 | Bolt, Hexagon Socket Head | 12 шт. | — | |
|
| 20 | 90110-06311-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 21 | 90110-06334-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 22 | 1TP-81845-00-00 | Plate | 1 шт. | — | |
|
| 23 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 23 | 99530-08012-00 | Pin, Dowel | 3 шт. | — | |
|
| 24 | 93210-07135-00 | O-Ring | 1 шт. | — | |
|
| 25 | 1TP-15423-00-00 | Cover 2 | 1 шт. | — | |
|
| 27 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 28 | 93315-31502-00 | Bearing | 1 шт. | — | |
|
| 29 | 93102-15212-00 | .Oil Seal | 1 шт. | — | |
|
| 30 | 3D8-16382-00-00 | Axle, Push Lever | 1 шт. | — | |
|
| 31 | 92902-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 32 | 99002-07600-00 | Circlip (E) | 1 шт. | — | |
|
| 33 | 1TP-15415-01-00 | Cover, 1 | 1 шт. | — | |
|
| 34 | 92014-06014-00 | Bolt, Button Head | 2 шт. | — | |
|
| 34 | 92014-06014-00 | Bolt, Button Head | 3 шт. | — | |
|
| 34 | 92014-06014-00 | Bolt, Button Head | 6 шт. | — | |
|
| 35 | 3D8-15441-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 36 | 3D8-1541A-01-00 | Stay, Crankcase Cover 1 | 1 шт. | — | |
|
| 37 | 3D8-15337-02-00 | Damper 4 | 1 шт. | — | |
|
| 38 | 91312-08035-00 | Bolt, Hexagon Socket Head | 5 шт. | — | |
|
| 39 | 99590-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 40 | 1TP-15426-00-00 | Cover, Oil Pump 2 | 1 шт. | — | |
|
| 41 | 90480-13018-00 | Grommet | 5 шт. | — | |
|
| 42 | 90387-06286-00 | Collar | 5 шт. | — | |
|
| 43 | 90149-06302-00 | Screw | 5 шт. | — | |
|
| 44 | 93317-11287-00 | Bearing | 1 шт. | — | |
|
| 45 | 93102-12106-00 | .Oil Seal (Sd 12-22-5 Hs) | 1 шт. | — | |
|
| 46 | 1TP-15470-00-00 | Air Duct Assy | 1 шт. | — | |
|
| 47 | 1TP-15113-00-00 | . .Plate | 1 шт. | — | |
|
| 48 | 5S7-15316-00-00 | . .Damper 1 | 1 шт. | — | |
|
| 49 | 97702-40014-00 | . .Screw, Tapping | 2 шт. | — | |
|
| 50 | 97702-40010-00 | . .Screw, Tapping | 1 шт. | — | |
|
