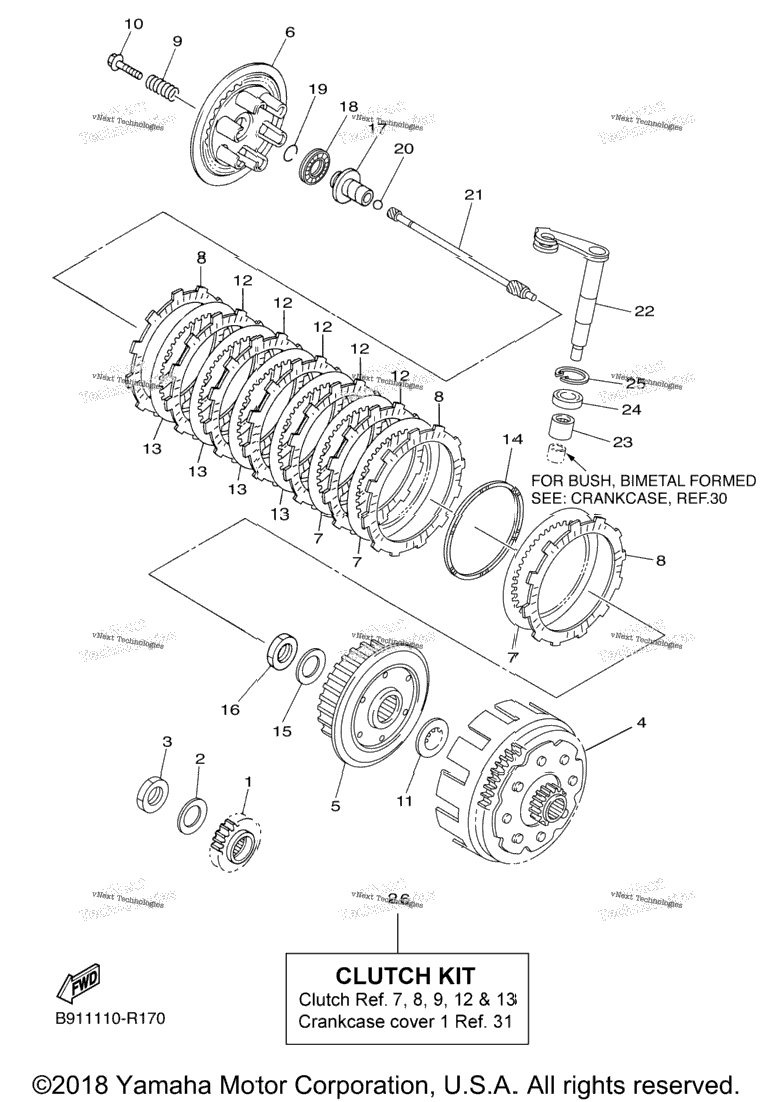

| 1 | 2S2-16111-60-00 | Gear, Primary Drive | 1 шт. | — | |
|
| 4 | B11-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 5 | 5TA-16371-20-00 | Boss, Clutch | 1 шт. | — | |
|
| 6 | 5JG-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 7 | 4X7-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH PLATE KIT | 3 шт. | — | |
|
| 8 | 5TA-16321-00-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 3 шт. | — | |
|
| 9 | 90501-230E4-00 | Spring, Compression INCL. IN CLUTCH PLATE KIT | 6 шт. | — | |
|
| 10 | 90159-06010-00 | Screw, With Washer | 6 шт. | — | |
|
| 11 | 5XD-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 12 | 5VY-16321-00-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 5 шт. | — | |
|
| 13 | 1TA-16325-00-00 | Plate, Clutch 2 INCL. IN CLUTCH PLATE KIT | 4 шт. | — | |
|
| 14 | 2GC-16383-00-00 | Spring, Cushion | 1 шт. | — | |
|
| 15 | 90208-20008-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 15 | 90208-20008-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 16 | 90170-20255-00 | Nut | 1 шт. | — | |
|
| 16 | 90170-20255-00 | Nut | 1 шт. | — | |
|
| 17 | 33D-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 18 | 93340-21209-00 | Bearing | 1 шт. | — | |
|
| 19 | 93440-10085-00 | .Circlip | 1 шт. | — | |
|
| 20 | 93511-32027-00 | Ball | 1 шт. | — | |
|
| 21 | 1SL-16357-10-00 | Rod, Push 2 | 1 шт. | — | |
|
| 22 | 2GC-16381-10-00 | Push Lever Comp | 1 шт. | — | |
|
| 23 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 24 | 93102-10008-00 | Oil Seal | 1 шт. | — | |
|
| 25 | 99009-18500-00 | Circlip | 1 шт. | — | |
|
| 26 | 2GC-W001G-00-00 | Clutch Kit NOT SHOWN | 1 шт. | — | |
|
