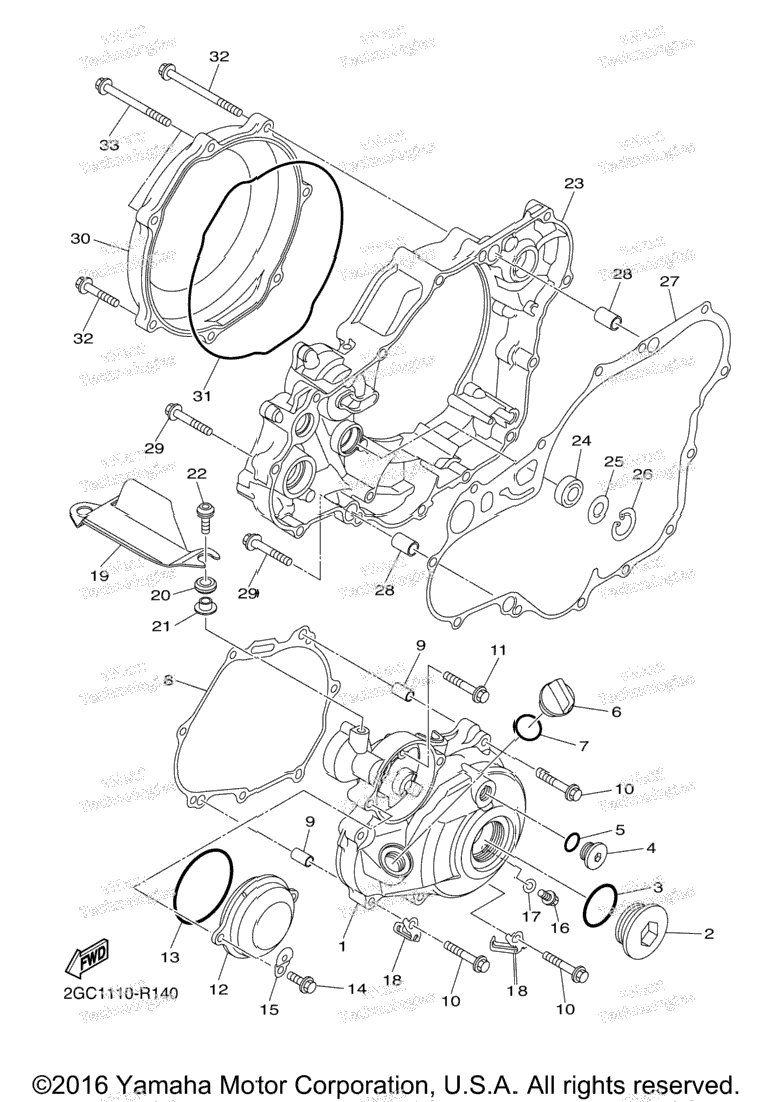

| 1 | 2GC-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-36002-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-357A3-00 | O-Ring | 1 шт. | — | |
|
| 4 | 90340-14011-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 5 | 93210-14369-00 | O-Ring | 1 шт. | — | |
|
| 6 | 3Y1-15363-10-00 | Plug, Oil | 1 шт. | — | |
|
| 7 | 93210-19123-00 | O-Ring | 1 шт. | — | |
|
| 8 | 1SL-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 9 | 99530-08016-00 | Pin, Dowel | 2 шт. | — | |
|
| 11 | 95022-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 12 | 5TJ-1549B-30-00 | Cover Assy 2 | 1 шт. | — | |
|
| 13 | 93210-58346-00 | O-Ring | 1 шт. | — | |
|
| 14 | 95022-06014-00 | Bolt, Flange | 2 шт. | — | |
|
| 15 | 2GC-15199-00-00 | Bracket | 1 шт. | — | |
|
| 16 | 95022-06012-00 | .Bolt, Flange | 1 шт. | — | |
|
| 17 | 90430-06014-00 | Gasket | 1 шт. | — | |
|
| 18 | 90465-08062-00 | Clamp | 2 шт. | — | |
|
| 19 | 2GC-15436-00-00 | Cover, Starting Motor | 1 шт. | — | |
|
| 20 | 90480-12581-00 | Grommet | 2 шт. | — | |
|
| 21 | 90387-06142-00 | Collar | 2 шт. | — | |
|
| 22 | 90111-06116-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 23 | 1SL-15431-00-00 | Cover, Crankcase 3 | 1 шт. | — | |
|
| 24 | 93101-14164-00 | Oil Seal | 1 шт. | — | |
|
| 25 | 90201-15701-00 | Washer, Plate (T=1.0) | 1 шт. | — | |
|
| 26 | 99009-22500-00 | Circlip | 1 шт. | — | |
|
| 27 | 1SL-15462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 28 | 99530-12016-00 | Pin, Dowel | 2 шт. | — | |
|
| 29 | 95022-06030-00 | Bolt, Flange | 6 шт. | — | |
|
| 29 | 95022-06030-00 | Bolt, Flange | 11 шт. | — | |
|
| 30 | 33D-15415-10-00 | Cover, 1 | 1 шт. | — | |
|
| 31 | 33D-15453-00-00 | Gasket INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 32 | 95022-06025-00 | Bolt, Flange | 5 шт. | — | |
|
| 33 | 95022-06070-00 | Bolt, Flange | 2 шт. | — | |
|
