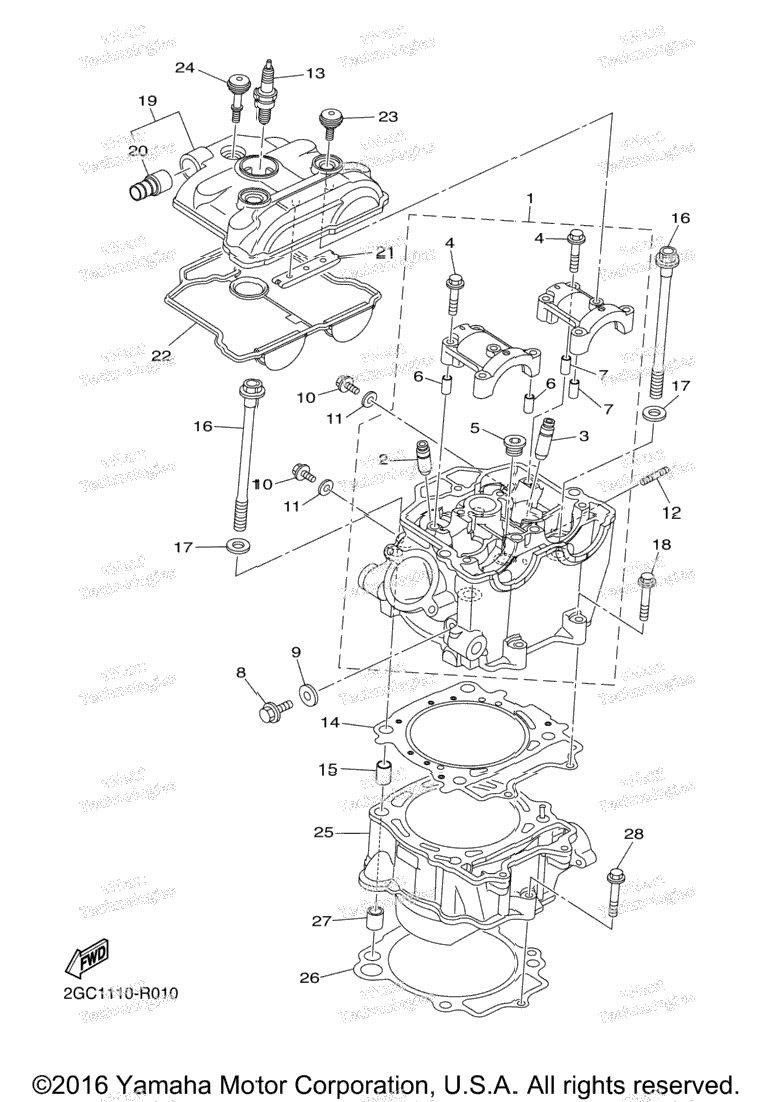

| 1 | 1SL-11102-00-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 2 | 5PS-11133-10-00 | . .Guide, Valve 1 | 2 шт. | — | |
|
| 3 | 5PS-11134-10-00 | . .Guide, Valve 2 | 2 шт. | — | |
|
| 4 | 90105-06027-00 | . .Bolt, Flange | 8 шт. | — | |
|
| 5 | 90340-12007-00 | . .Plug, Straight Screw | 1 шт. | — | |
|
| 7 | 91808-16023-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 7 | 91808-16023-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 8 | 95022-08012-00 | .Bolt, Flange | 1 шт. | — | |
|
| 9 | 90430-08119-00 | Gasket | 1 шт. | — | |
|
| 10 | 95022-06010-00 | Bolt, Flange | 2 шт. | — | |
|
| 11 | 90430-06014-00 | Gasket | 2 шт. | — | |
|
| 12 | 90116-06037-00 | Bolt, Stud | 3 шт. | — | |
|
| 13 | 94701-00411-00 | Plug, Spark (Ngk R Cr8e) STD | 1 шт. | — | |
|
| 13 | 94701-00410-00 | Plug, Spark (Ngk R Cr9e) AP | 1 шт. | — | |
|
| 14 | 33D-11181-00-00 | Gasket, Cylinder Head 1 INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 15 | 93612-16254-00 | Pin, Dowel | 2 шт. | — | |
|
| 16 | 90105-10367-00 | Bolt, Flange | 4 шт. | — | |
|
| 17 | 90201-10025-00 | Washer, Plate | 4 шт. | — | |
|
| 19 | 33D-11190-39-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 20 | 2GC-1117J-10-00 | . .Pipe, 7 | 1 шт. | — | |
|
| 21 | 5BE-12241-00-00 | Guide, Stopper 2 INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 22 | 33D-11193-01-00 | Gasket, Head Cover 1 | 1 шт. | — | |
|
| 23 | 5UM-1119E-00-00 | Bolt, Cover Head | 2 шт. | — | |
|
| 24 | 33D-1119E-00-00 | Bolt, Cover Head | 1 шт. | — | |
|
| 25 | 1SL-11311-00-00 | Cylinder 1 | 1 шт. | — | |
|
| 26 | 1SL-11351-00-00 | Gasket, Cylinder INCL. IN TOP END GASKET KIT | 1 шт. | — | |
|
| 27 | 99530-14016-00 | Pin, Dowel | 2 шт. | — | |
|
| 28 | 95022-06035-00 | Bolt, Flange | 2 шт. | — | |
|
| 28 | 95022-06035-00 | Bolt, Flange | 1 шт. | — | |
|
