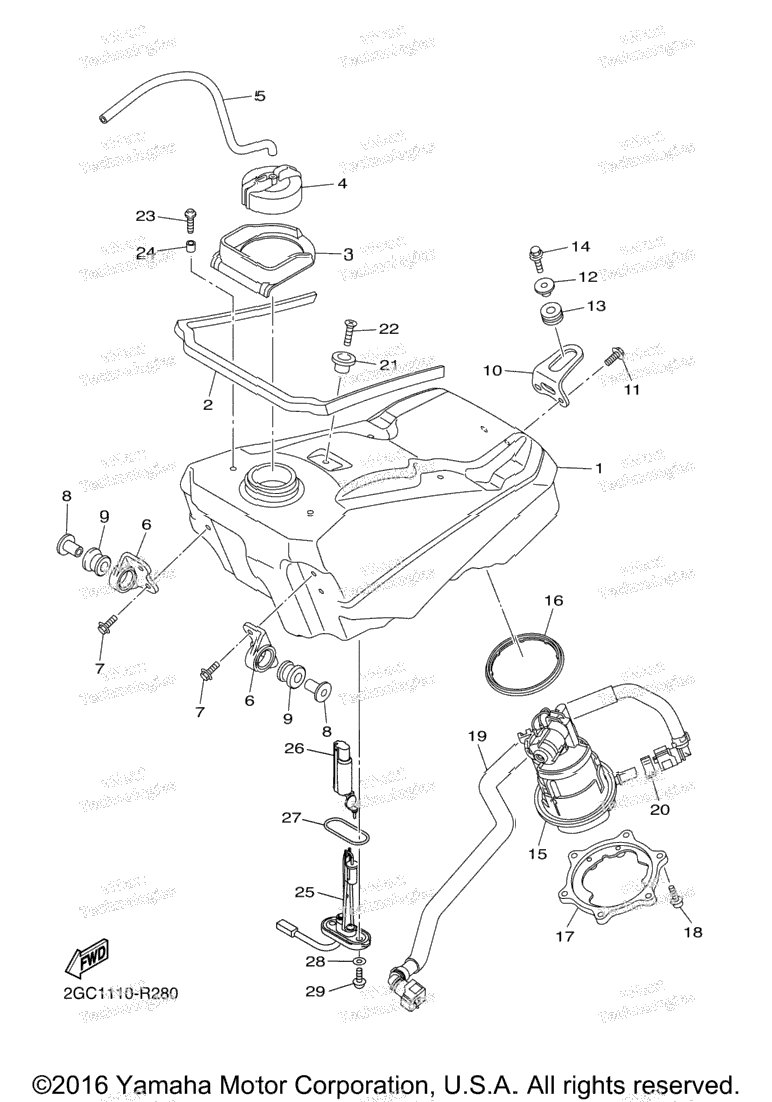

| 1 | 2GB-24110-00-00 | Fuel Tank Comp | 1 шт. | — | |
|
| 2 | 1S4-2414J-00-00 | Damper, Plate 2 | 3 шт. | — | |
|
| 3 | 1SL-24188-00-00 | Mold, Fuel Tank | 1 шт. | — | |
|
| 4 | 1SL-24610-01-00 | Cap Assy | 1 шт. | — | |
|
| 5 | 90445-09008-00 | Hose (L470) | 1 шт. | — | |
|
| 6 | 1SL-24115-00-00 | Stay, Fuel Tank 1 | 2 шт. | — | |
|
| 7 | 90105-06170-00 | Bolt, Flange | 4 шт. | — | |
|
| 8 | 90387-06091-00 | Collar | 2 шт. | — | |
|
| 9 | 90480-18549-00 | Grommet | 2 шт. | — | |
|
| 10 | 1SL-2419A-00-00 | Holder | 1 шт. | — | |
|
| 11 | 90105-06170-00 | Bolt, Flange | 2 шт. | — | |
|
| 12 | 90387-066Y6-00 | Collar | 1 шт. | — | |
|
| 13 | 90480-10289-00 | Grommet | 1 шт. | — | |
|
| 14 | 95022-06020-00 | Bolt, Flange | 1 шт. | — | |
|
| 15 | 33D-13907-01-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 16 | 33D-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 17 | 33D-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 18 | 90110-05058-00 | Bolt, Hexagon Socket Head | 6 шт. | — | |
|
| 19 | 1SL-13971-01-00 | Pipe, Fuel 1 | 0 шт. | — | |
|
| 20 | 33D-24135-00-00 | Clamp 1 | 1 шт. | — | |
|
| 21 | 4EW-2412F-00-00 | Bracket, Seat | 1 шт. | — | |
|
| 22 | 98707-06025-00 | Screw, Flat Head | 1 шт. | — | |
|
| 23 | 90111-06149-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 24 | 90387-06284-00 | Collar | 2 шт. | — | |
|
| 25 | 2GB-85752-00-00 | Sender Unit Assy, Fuel Meter | 1 шт. | — | |
|
| 26 | 1DX-24474-00-00 | Cover | 1 шт. | — | |
|
| 27 | 1DX-85753-00-00 | Gasket, Sender Unit | 1 шт. | — | |
|
| 28 | 90202-05193-00 | Washer, Plate | 2 шт. | — | |
|
| 29 | 90149-06108-00 | Screw | 2 шт. | — | |
|
