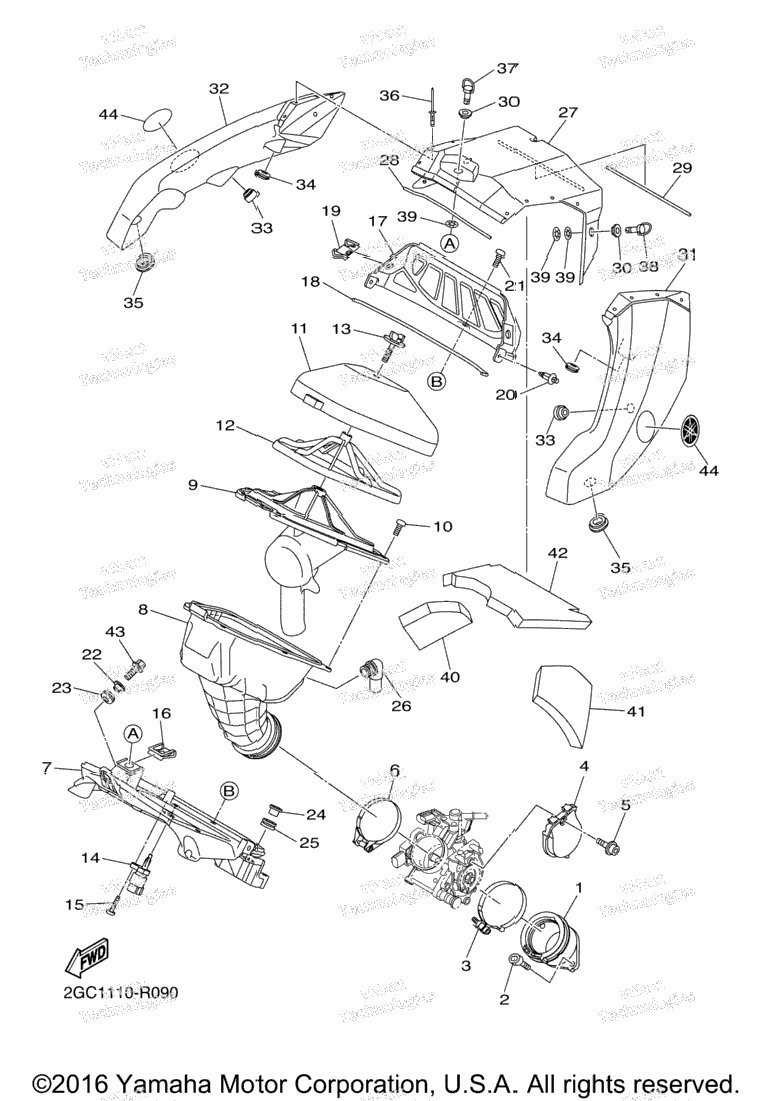

| 1 | 33D-13597-10-00 | Joint, Carburetor 3 | 1 шт. | — | |
|
| 2 | 91312-06020-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 3 | 90450-60004-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 4 | 1SL-14293-00-00 | Cover 1 | 1 шт. | — | |
|
| 5 | 90110-05066-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 6 | 90450-58007-00 | Hose Clamp Assy | 1 шт. | — | |
|
| 7 | 1SL-14411-00-00 | Case, Air Cleaner 1 | 1 шт. | — | |
|
| 8 | 2GC-14453-00-00 | Joint, Air Cleaner 1 | 1 шт. | — | |
|
| 9 | 2GB-14459-00-00 | Holder, Guide | 1 шт. | — | |
|
| 10 | 98502-05014-00 | Screw, Pan Head | 8 шт. | — | |
|
| 11 | 1SL-14451-00-00 | Element, Air Cleaner | 1 шт. | — | |
|
| 12 | 1SL-14458-00-00 | Guide | 1 шт. | — | |
|
| 13 | 1SL-14428-00-00 | Bolt | 1 шт. | — | |
|
| 14 | 8FP-85886-00-00 | Sensor, Air Temperature | 1 шт. | — | |
|
| 15 | 97702-50520-00 | Screw, Tapping | 1 шт. | — | |
|
| 16 | 4XV-2177L-01-00 | Plate, Spring | 1 шт. | — | |
|
| 17 | 1SL-14422-00-00 | Cap, Cleaner Case 2 | 1 шт. | — | |
|
| 18 | 1SL-14462-00-00 | Seal | 1 шт. | — | |
|
| 19 | 4XV-2177L-01-00 | Plate, Spring | 2 шт. | — | |
|
| 20 | 90269-06008-00 | Rivet | 2 шт. | — | |
|
| 21 | 98502-05014-00 | Screw, Pan Head | 1 шт. | — | |
|
| 22 | 90387-087L0-00 | Collar | 1 шт. | — | |
|
| 23 | 90480-12237-00 | Grommet | 1 шт. | — | |
|
| 24 | 1SL-14442-00-00 | Spacer | 2 шт. | — | |
|
| 25 | 90480-01027-00 | Grommet | 2 шт. | — | |
|
| 26 | 5TJ-14419-00-00 | Pipe | 1 шт. | — | |
|
| 27 | 1SL-14412-01-00 | Cap, Cleaner Case 1 | 1 шт. | — | |
|
| 28 | 1SL-14452-00-00 | Seal | 1 шт. | — | |
|
| 29 | 1SL-14457-00-00 | Seal | 1 шт. | — | |
|
| 30 | 90387-07045-00 | Collar | 3 шт. | — | |
|
| 31 | 1SL-14437-01-00 | Duct | 1 шт. | — | |
|
| 32 | 1SL-1443A-01-00 | Duct | 1 шт. | — | |
|
| 33 | 90480-11298-00 | Grommet | 2 шт. | — | |
|
| 34 | 90480-12237-00 | Grommet | 2 шт. | — | |
|
| 35 | 90480-01558-00 | Grommet | 2 шт. | — | |
|
| 36 | 90267-41004-00 | Rivet, Blind | 12 шт. | — | |
|
| 37 | 3FV-28386-00-00 | Head | 1 шт. | — | |
|
| 38 | 1SL-28386-00-00 | Head | 2 шт. | — | |
|
| 39 | 5TJ-21757-00-00 | Washer, Special 1 | 5 шт. | — | |
|
| 40 | 2GB-14425-00-00 | Damper 1 | 1 шт. | — | |
|
| 41 | 2GB-14426-00-00 | Damper 2 | 1 шт. | — | |
|
| 42 | 2GB-1442G-00-00 | Damper 3 | 1 шт. | — | |
|
| 43 | 90105-06203-00 | Bolt, Flange | 3 шт. | — | |
|
| 44 | 1SL-2175C-00-00 | Tuning Fork Mark | 2 шт. | — | |
|
