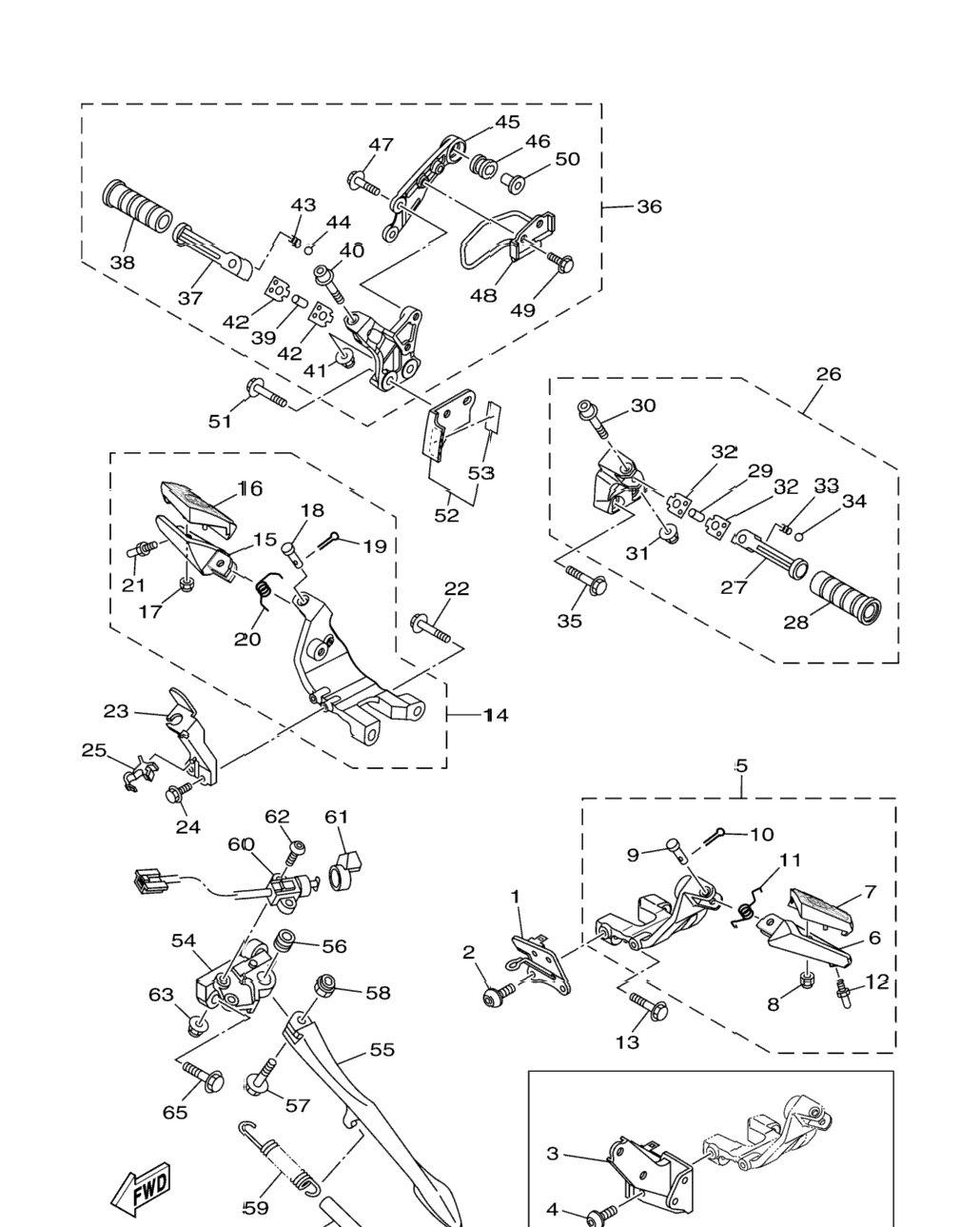

| 1 | 5C7-2134L-00-00 | Bracket, Horn 2 FOR U49 | 1 шт. | — | |
|
| 2 | 90111-06038-00 | Bolt, Hex. Socket Button FOR U49 | 2 шт. | — | |
|
| 3 | 5C7-2742L-00-00 | Bracket 5 FOR CAL | 0 шт. | — | |
|
| 4 | 90149-06022-00 | Screw FOR CAL | 0 шт. | — | |
|
| 5 | 5C7-27410-01-00 | Front Footrest Assy (Left) | 1 шт. | — | |
|
| 6 | 5C7-27451-01-00 | . .Footrest | 1 шт. | — | |
|
| 7 | 5C7-27413-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 8 | 95602-05200-00 | . Nut, Self-Locking | 2 шт. | — | |
|
| 9 | 91701-08035-00 | . .Pin | 1 шт. | — | |
|
| 10 | 91401-25015-00 | . Pin, Cotter | 1 шт. | — | |
|
| 11 | 90508-18080-00 | . .Spring, Torsion | 1 шт. | — | |
|
| 12 | 5C7-27435-00-00 | . .Bolt | 1 шт. | — | |
|
| 13 | 90105-10126-00 | Bolt, Flange | 2 шт. | — | |
|
| 14 | 5C7-27420-01-00 | Front Footrest Assy (Right) | 1 шт. | — | |
|
| 15 | 5C7-27461-01-00 | . .Footrest | 1 шт. | — | |
|
| 16 | 5C7-27423-00-00 | . .Cover, Footrest | 1 шт. | — | |
|
| 17 | 95602-05200-00 | . Nut, Self-Locking | 2 шт. | — | |
|
| 18 | 91701-08035-00 | . .Pin | 1 шт. | — | |
|
| 19 | 91401-25015-00 | . Pin, Cotter | 1 шт. | — | |
|
| 20 | 90508-18087-00 | . .Spring, Torsion | 1 шт. | — | |
|
| 21 | 5C7-27435-00-00 | . .Bolt | 1 шт. | — | |
|
| 22 | 90105-10126-00 | Bolt, Flange | 2 шт. | — | |
|
| 23 | 5C7-2741L-00-00 | Bracket 4 | 1 шт. | — | |
|
| 24 | 90105-06050-00 | Bolt, Flange | 2 шт. | — | |
|
| 25 | 90464-08189-00 | Clamp | 1 шт. | — | |
|
| 26 | 5C7-27430-00-00 | Rear Footrest Assy 1 | 1 шт. | — | |
|
| 27 | 5C4-27431-00-00 | . .Footrest, Rear 1 | 1 шт. | — | |
|
| 28 | 4WM-27433-00-00 | . .Cover, Rear Footrest | 1 шт. | — | |
|
| 29 | 90387-06554-00 | . Collar | 1 шт. | — | |
|
| 30 | 90109-06016-00 | . .Bolt | 1 шт. | — | |
|
| 31 | 95604-06200-00 | . .Nut, U Flange | 1 шт. | — | |
|
| 32 | 1D7-27437-00-00 | . .Washer, Special | 2 шт. | — | |
|
| 33 | 90501-15001-00 | . Spring, Compression | 1 шт. | — | |
|
| 34 | 93501-04011-00 | . Ball | 1 шт. | — | |
|
| 35 | 90105-10292-00 | Bolt, Flange | 2 шт. | — | |
|
| 36 | 5C7-27440-00-00 | Rear Footrest Assy 2 | 1 шт. | — | |
|
| 37 | 1D7-27441-00-00 | . .Footrest, Rear 2 | 1 шт. | — | |
|
| 38 | 4WM-27433-00-00 | . .Cover, Rear Footrest | 1 шт. | — | |
|
| 39 | 90387-06554-00 | . Collar | 1 шт. | — | |
|
| 40 | 90109-06016-00 | . .Bolt | 1 шт. | — | |
|
| 41 | 95604-06200-00 | . .Nut, U Flange | 1 шт. | — | |
|
| 42 | 1D7-27437-00-00 | . .Washer, Special | 2 шт. | — | |
|
| 43 | 90501-15001-00 | . Spring, Compression | 1 шт. | — | |
|
| 44 | 93501-04011-00 | . Ball | 1 шт. | — | |
|
| 45 | 5C7-21446-00-00 | . .Stay, Muffler 2 | 1 шт. | — | |
|
| 46 | 2C0-14747-00-00 | . Damper, Muffler | 1 шт. | — | |
|
| 47 | 95024-08020-00 | . Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 48 | 5C7-27267-00-00 | . .Guide, Wire | 1 шт. | — | |
|
| 49 | 95022-08012-00 | . Bolt, Flange | 2 шт. | — | |
|
| 50 | 90387-08021-00 | . Collar | 1 шт. | — | |
|
| 51 | 90105-10155-00 | Bolt, Flange | 2 шт. | — | |
|
| 52 | 5C7-2171G-00-00 | Bracket, Stopper Steeering | 1 шт. | — | |
|
| 53 | 5C7-2174X-00-00 | . .Damper | 1 шт. | — | |
|
| 54 | 5C7-27321-00-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 55 | 1D7-27311-00-00 | Stand, Side | 0 шт. | — | |
|
| 56 | 90387-12031-00 | Collar | 1 шт. | — | |
|
| 57 | 90105-12018-00 | Bolt, Flange | 1 шт. | — | |
|
| 58 | 90185-12119-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 59 | 90506-35005-00 | Spring, Tension | 1 шт. | — | |
|
| 60 | 3D8-82566-B0-00 | Switch, Side Stand | 1 шт. | — | |
|
| 61 | 4WM-8252U-00-00 | Cover | 1 шт. | — | |
|
| 62 | 92017-05025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 63 | 95607-05200-00 | Nut, S/L Flange | 2 шт. | — | |
|
| 64 | 90445-22327-00 | Hose (L70) | 1 шт. | — | |
|
| 65 | 90105-10157-00 | Bolt, Flange | 2 шт. | — | |
|
