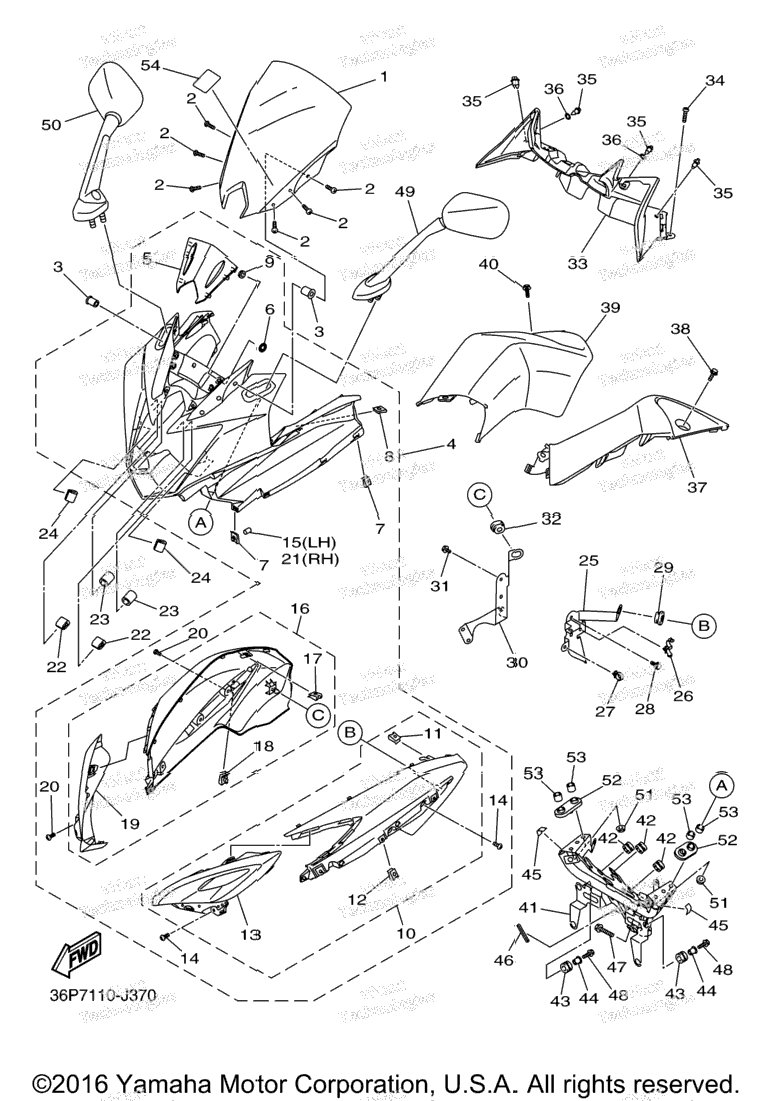

| 1 | 36P-28381-00-00 | Windshield | 1 шт. | — | |
|
| 2 | 90150-05023-00 | .Screw, Round Head | 6 шт. | — | |
|
| 3 | 90179-05523-00 | .Nut | 6 шт. | — | |
|
| 4 | 36P-W283G-30-P9 | Body, Front Upper 1 MS1 | 1 шт. | — | |
|
| 5 | 36P-83559-00-00 | . .Cover, Meter | 1 шт. | — | |
|
| 6 | 90183-05M02-00 | . Nut, Spring | 4 шт. | — | |
|
| 7 | 90183-05042-00 | . Nut, Spring | 8 шт. | — | |
|
| 9 | 5SL-84753-00-00 | . Damper | 4 шт. | — | |
|
| 10 | 36P-2830N-01-00 | . .Box Sub Assy | 1 шт. | — | |
|
| 13 | 36P-2837N-00-00 | . . ..Grill, Air Intake 1 | 1 шт. | — | |
|
| 16 | 36P-2830R-01-00 | . .Box Sub Assy | 1 шт. | — | |
|
| 17 | 90183-05076-00 | . . Nut, Spring | 1 шт. | — | |
|
| 17 | 90183-05076-00 | . . Nut, Spring | 1 шт. | — | |
|
| 17 | 90183-05076-00 | . Nut, Spring | 2 шт. | — | |
|
| 18 | 90183-05008-00 | . . Nut, Spring | 3 шт. | — | |
|
| 18 | 90183-05008-00 | . . Nut, Spring | 3 шт. | — | |
|
| 19 | 36P-2837R-00-00 | . . ..Grill, Air Intake 2 | 1 шт. | — | |
|
| 20 | 97702-50016-00 | . Screw, Tapping | 4 шт. | — | |
|
| 20 | 97702-50016-00 | . Screw, Tapping | 4 шт. | — | |
|
| 21 | 90445-070K7-00 | . Hose (L10) | 2 шт. | — | |
|
| 21 | 90445-070K7-00 | . Hose (L10) | 2 шт. | — | |
|
| 22 | 20S-28376-00-00 | Trim | 2 шт. | — | |
|
| 23 | 90445-05003-00 | Hose | 2 шт. | — | |
|
| 24 | 1FK-2171M-00-00 | Mole, Side Cover 2 | 2 шт. | — | |
|
| 25 | 36P-2172R-01-00 | Bracket 5 | 1 шт. | — | |
|
| 26 | 90464-16006-00 | Clamp | 1 шт. | — | |
|
| 27 | 90464-15157-00 | Clamp | 1 шт. | — | |
|
| 30 | 36P-2172T-01-00 | Brkt 6 | 1 шт. | — | |
|
| 31 | 95802-06012-00 | Bolt, Flange | 0 шт. | — | |
|
| 31 | 95802-06012-00 | Bolt, Flange | 0 шт. | — | |
|
| 32 | 90480-01558-00 | Grommet | 1 шт. | — | |
|
| 32 | 90480-01558-00 | Grommet | 1 шт. | — | |
|
| 33 | 36P-2836K-00-00 | Panel, Inner 1 | 1 шт. | — | |
|
| 35 | 90269-06008-00 | Rivet | 4 шт. | — | |
|
| 36 | 90202-06004-00 | Washer, Plate | 2 шт. | — | |
|
| 37 | 36P-2836L-00-00 | Panel, Inner 2 | 1 шт. | — | |
|
| 39 | 36P-2836M-00-00 | Panel, Inner 3 | 1 шт. | — | |
|
| 40 | 90111-05034-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 40 | 90111-05034-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 40 | 90111-05034-00 | Bolt, Hex. Socket Button | 2 шт. | — | |
|
| 41 | 36P-28356-01-00 | Stay 1 | 1 шт. | — | |
|
| 42 | 3C3-83513-00-00 | Damper | 3 шт. | — | |
|
| 43 | 90480-14004-00 | Grommet | 4 шт. | — | |
|
| 44 | 90387-07391-00 | .Collar | 4 шт. | — | |
|
| 45 | 36P-2837J-00-00 | Damper 5 | 2 шт. | — | |
|
| 46 | 2S3-28348-00-00 | Mole 4 | 1 шт. | — | |
|
| 47 | 95822-08035-00 | Bolt, Flange | 2 шт. | — | |
|
| 48 | 95822-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 49 | 36P-26280-00-00 | Rear View Mirror Assy (Left) | 1 шт. | — | |
|
| 50 | 36P-26290-00-00 | Rear View Mirror Assy (Right) | 1 шт. | — | |
|
| 51 | 95702-06500-00 | Nut, Flange | 4 шт. | — | |
|
| 52 | 3C3-26298-00-00 | Plate, Mirror Fitting 1 | 2 шт. | — | |
|
| 53 | 90387-064T3-00 | Collar | 4 шт. | — | |
|
| 54 | 4B5-2815K-00-00 | .Label, Notice Windshield 1 | 1 шт. | — | |
|
