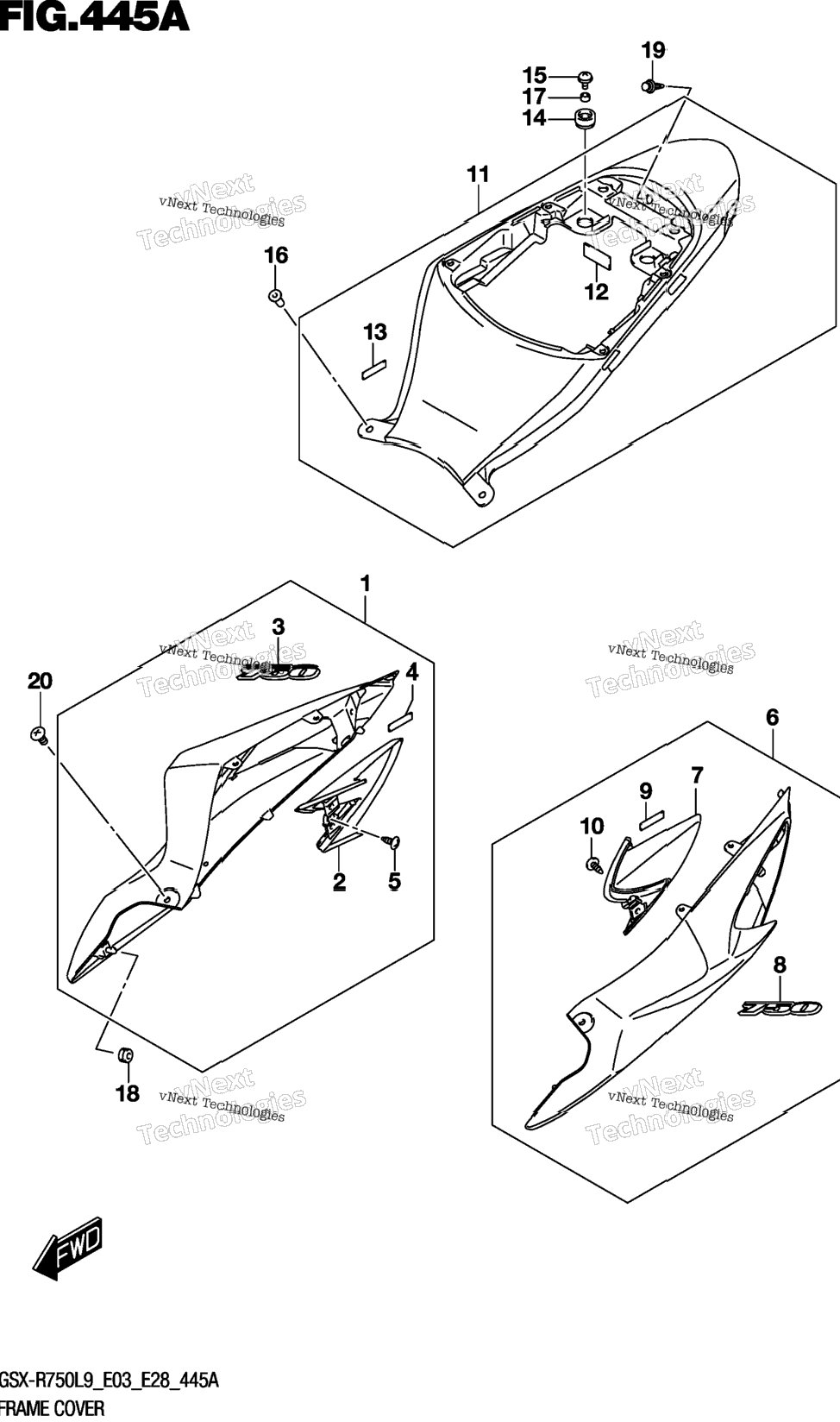

| 1-1 | 47100-15J10-AHX | COVER, FRAME RH (WHITE) FOR AGT | 1 шт. | — | |
|
| 1-2 | 47100-15J10-YKV | COVER, FRAME RH (BLACK) FOR KGL | 1 шт. | — | |
|
| 2 | 47611-14J00 | .COVER,FRAME REAR RH | 1 шт. | — | |
|
| 6-1 | 47200-15J10-AHX | COVER, FRAME LH (WHITE) FOR AGT | 1 шт. | — | |
|
| 6-2 | 47200-15J10-YKV | COVER, FRAME LH (BLACK) FOR KGL | 1 шт. | — | |
|
| 7 | 47621-14J00 | .COVER,FRAME REAR LH | 1 шт. | — | |
|
| 8-1 | 68131-15J00-BV7 | .EMBLEM "750" (RED/WHITE) FOR AHX | 1 шт. | — | |
|
| 8-1 | 68131-15J00-BV7 | .EMBLEM "750" (RED/WHITE) FOR AHX | 1 шт. | — | |
|
| 8-2 | 68131-15J00-BFK | .EMBLEM "750" (RED/BLACK) FOR YKV | 1 шт. | — | |
|
| 8-2 | 68131-15J00-BFK | .EMBLEM "750" (RED/BLACK) FOR YKV | 1 шт. | — | |
|
| 10 | 03541-0512A | SCREW | 1 шт. | — | |
|
| 10 | 03541-0512A | SCREW | 1 шт. | — | |
|
| 11 | 47300-14J00 | COVER, FRAME CENTER (BLUEE) | 1 шт. | — | |
|
| 12 | 48128-14FA0 | CUSHION (10X24X1) | 1 шт. | — | |
|
| 13 | 94443-06G00 | TAPE (6X25X0.13) | 2 шт. | — | |
|
| 13 | 94443-06G00 | TAPE (6X25X0.13) | 2 шт. | — | |
|
| 13 | 94443-06G00 | TAPE (6X25X0.13) | 2 шт. | — | |
|
| 14 | 47312-37H00 | CUSHION,FRAME COVER REAR (10X | 2 шт. | — | |
|
| 15 | 09136-06056 | SCREW (6X16) | 2 шт. | — | |
|
| 16 | 09159-05019 | NUT (M5) | 2 шт. | — | |
|
| 17 | 09180-06283 | SPACER (6.5X10X7) | 2 шт. | — | |
|
| 18 | 09320-06504 | CUSHION (6X18X6) | 2 шт. | — | |
|
| 19 | 09409-06314-5PK | CLIP (5.9X20.5,BLACK) | 8 шт. | — | |
|
| 20 | 02142-1520B | SCREW | 2 шт. | — | |
|
| 21 | SPECIAL NOTE | COLOR:KEL=YVB(BLACK)/YSF(BLUE) AGT=YVB(BLACK),YWW(WHITE) | 0 шт. | — | |
|
| 21 | SPECIAL NOTE | COLOR:KEL=YVB(BLACK)/YSF(BLUE) COLOR : | 0 шт. | — | |
|
| 21 | SPECIAL NOTE | COLOR:KEL=YVB(BLACK)/YSF(BLUE) KGL=YKV(BLACK),YVB(BLACK) | 0 шт. | — | |
|
