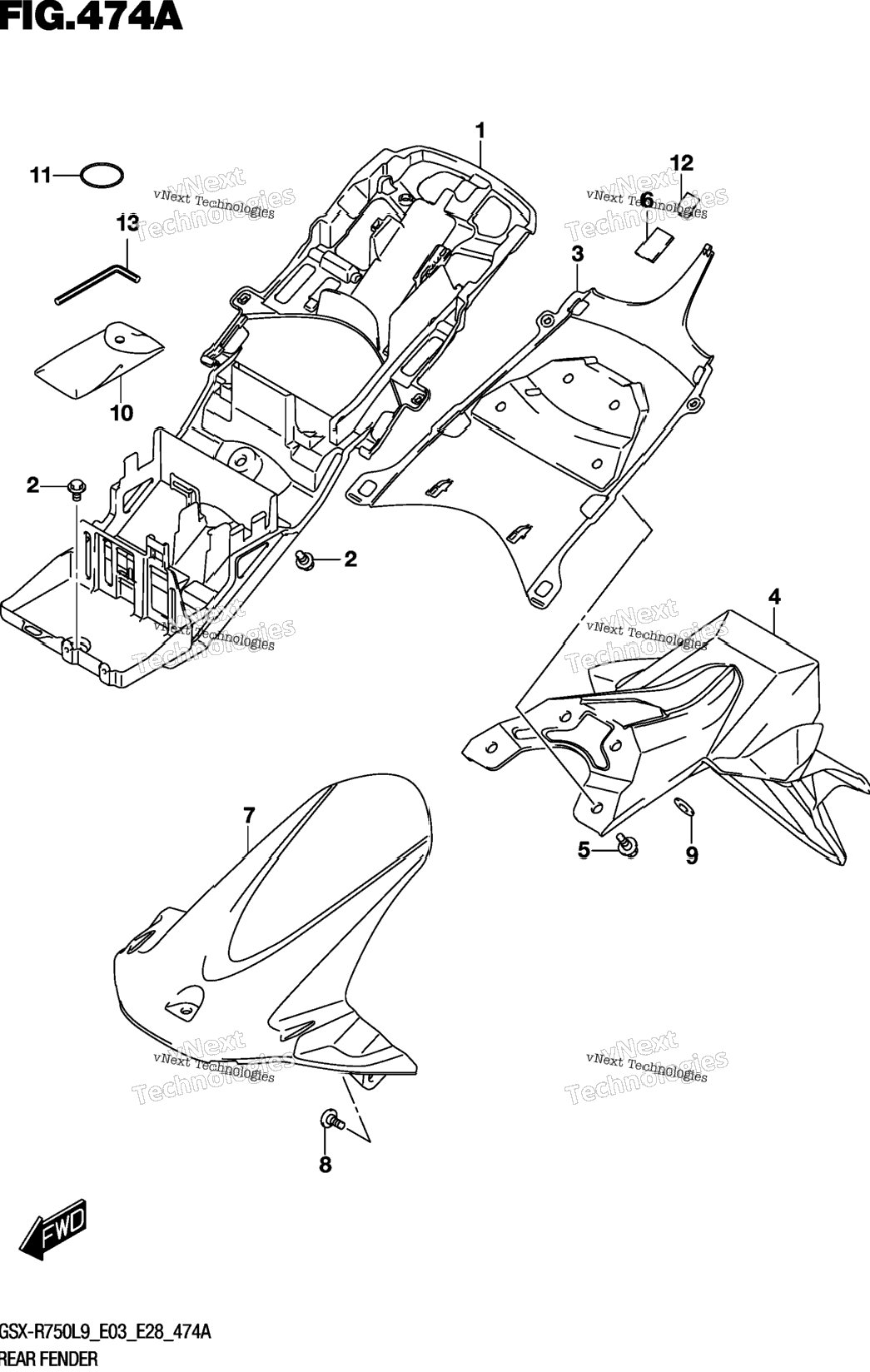

| 1 | 63111-14J00 | FENDER,REAR FRONT | 1 шт. | — | |
|
| 2 | 09111-06107 | BOLT (6X12) | 2 шт. | — | |
|
| 3 | 63112-14J01 | COVER, FENDER FRONT | 1 шт. | — | |
|
| 4 | 63113-14J01 | FENDER,REAR REAR | 1 шт. | — | |
|
| 5 | 09111-06072 | BOLT (6X17.8) | 4 шт. | — | |
|
| 6 | 44556-33H00 | CUSHION (20X30X2) | 1 шт. | — | |
|
| 7 | 63114-14J01 | FENDER,REAR LOWER | 1 шт. | — | |
|
| 8 | 09139-06158 | SCREW (6X16) | 3 шт. | — | |
|
| 9 | 09160-06077 | WASHER (6.5X20X1.2) | 2 шт. | — | |
|
| 10 | 09800-21056 | TOOL ASSY | 1 шт. | — | |
|
| 11 | 09280-57003 | O-RING (D:3.5,ID:56.5) | 0 шт. | — | |
|
| 12 | 44572-37H00 | FASTENER, COWLING (20X15X0.8) | 2 шт. | — | |
|
| 13 | 09816-00059 | SPANNER,HEXAGON (5) | 1 шт. | — | |
|
