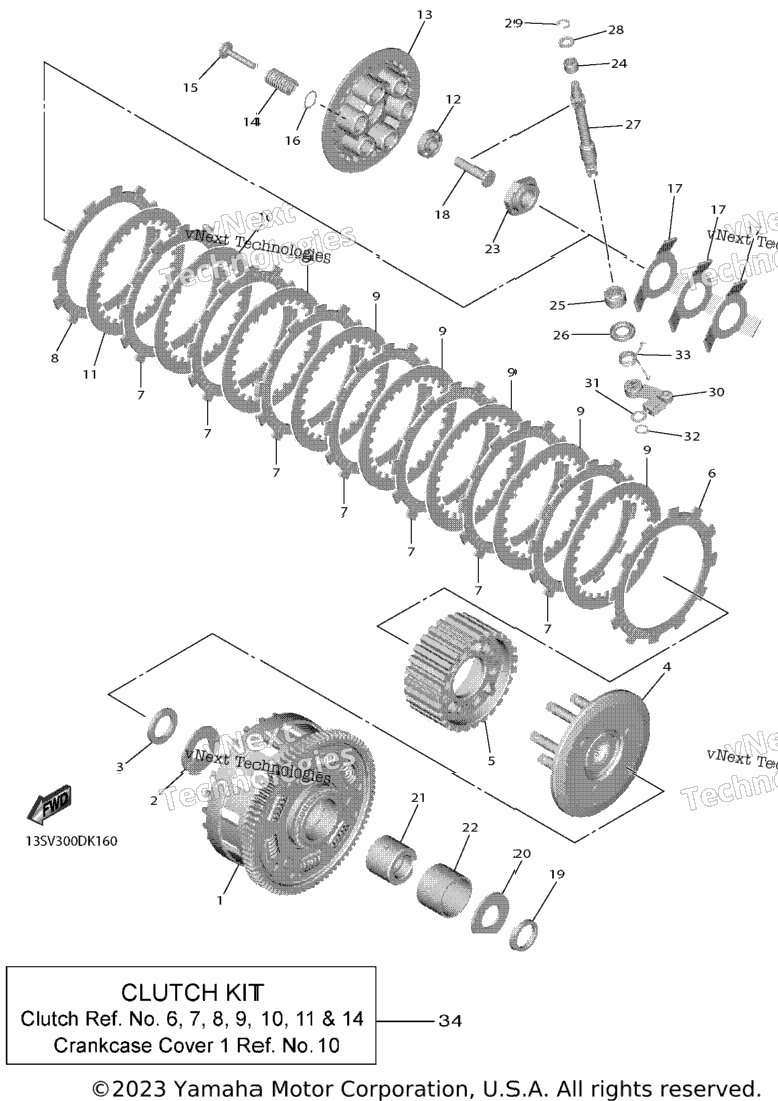

| 1 | 2C0-16150-10-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 2 | 2C0-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 3 | 90208-25002-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 4 | 13S-16360-00-00 | Pressure Plate Assy 2 | 1 шт. | — | |
|
| 5 | 13S-16370-00-00 | Clutch Boss Assy | 1 шт. | — | |
|
| 6 | 5SL-16321-00-00 | Plate, Friction INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 7 | 5LV-16321-20-00 | Plate, Friction INCL. IN CLUTCH KIT | 7 шт. | — | |
|
| 8 | 4FN-16321-00-00 | Plate, Friction INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 11 | 3J2-16324-00-00 | Plate, Clutch 1 (T=2.0) INCL. IN CLUTCH KIT | 6 шт. | — | |
|
| 11 | 3J2-16324-00-00 | Plate, Clutch 1 (T=2.0) UR INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 11 | 3J2-16324-00-00 | Plate, Clutch 1 (T=2.0) UR INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 11 | 168-16324-00-00 | Plate, Clutch 1 (T=2.3) UR INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 11 | 168-16324-00-00 | Plate, Clutch 1 (T=2.3) UR INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 11 | 168-16325-00-00 | Plate, Clutch 2 (T=1.6) UR INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 12 | 93306-00106-00 | Bearing | 1 шт. | — | |
|
| 13 | 2C0-16351-00-00 | Plate, Pressure 1 | 1 шт. | — | |
|
| 14 | 90501-220A2-00 | Spring, Compression INCL. IN CLUTCH KIT | 6 шт. | — | |
|
| 15 | 90159-06024-00 | Screw, With Washer | 6 шт. | — | |
|
| 16 | 2C0-16384-00-00 | Plate, Seat | 6 шт. | — | |
|
| 17 | 2S3-16539-00-00 | Spring | 3 шт. | — | |
|
| 18 | 2C0-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 19 | 2C0-16164-00-00 | Plate, Thrust 2 | 1 шт. | — | |
|
| 20 | 1AE-16164-00-00 | Plate, Thrust 2 | 1 шт. | — | |
|
| 21 | 90387-25024-00 | Collar | 1 шт. | — | |
|
| 22 | 93310-340N8-00 | Bearing | 1 шт. | — | |
|
| 23 | 2C0-16377-00-00 | Nut, Lock | 1 шт. | — | |
|
| 24 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 25 | 93315-21570-00 | Bearing | 1 шт. | — | |
|
| 26 | 93102-15212-00 | Oil Seal | 1 шт. | — | |
|
| 27 | 2C0-16382-00-00 | Axle, Push Lever | 1 шт. | — | |
|
| 28 | 92907-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 29 | 99001-07600-00 | Circlip | 1 шт. | — | |
|
| 30 | 2C0-16340-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 31 | 90201-10029-00 | Washer, Plate | 1 шт. | — | |
|
| 32 | 99009-10400-00 | Circlip | 1 шт. | — | |
|
| 33 | 90508-16052-00 | Spring, Torsion | 1 шт. | — | |
|
| 34 | 2C0-W001G-00-00 | Clutch Kit | 1 шт. | — | |
|
