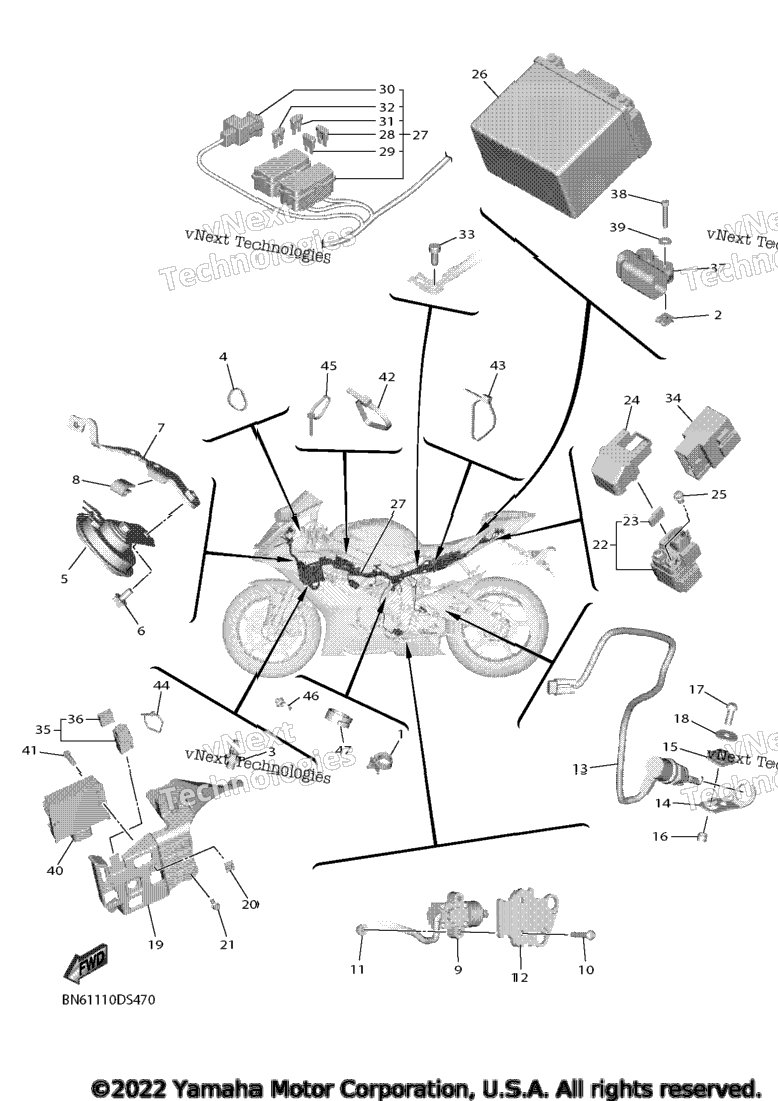

| 1 | 90464-17008-00 | Clamp | 1 шт. | — | |
|
| 2 | 90183-04039-00 | Nut, Spring | 2 шт. | — | |
|
| 3 | 90464-30010-00 | Clamp | 1 шт. | — | |
|
| 4 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 5 | B67-83371-00-00 | Horn | 1 шт. | — | |
|
| 6 | 95D32-06012-00 | Bolt, Flange Deep Recess | 1 шт. | — | |
|
| 7 | BN6-23377-00-00 | Bracket, Horn | 1 шт. | — | |
|
| 8 | 5RU-2139X-00-00 | Damper | 1 шт. | — | |
|
| 9 | BN6-82566-00-00 | Switch, Side Stand | 1 шт. | — | |
|
| 10 | 92012-05025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 11 | 95602-05200-00 | .Nut, Self-Locking | 2 шт. | — | |
|
| 12 | 2C0-27961-00-00 | Bracket, Sensor 1 | 1 шт. | — | |
|
| 13 | BN6-82530-00-00 | Stop Switch Assy | 1 шт. | — | |
|
| 14 | 13S-2144G-00-00 | Stay, Stop Switch | 1 шт. | — | |
|
| 15 | 90480-12607-00 | Grommet | 1 шт. | — | |
|
| 16 | 90387-06023-00 | Collar | 1 шт. | — | |
|
| 17 | 92017-06016-00 | Bolt, Button Head | 1 шт. | — | |
|
| 18 | 90201-06380-00 | Washer Plain | 1 шт. | — | |
|
| 19 | BN6-2836H-00-00 | Bracket 5 | 1 шт. | — | |
|
| 20 | 90183-06069-00 | Nut, Spring | 2 шт. | — | |
|
| 21 | 95D02-06014-00 | Bolt, Flange Deep Recess | 2 шт. | — | |
|
| 22 | 2CR-81940-00-00 | Starter Relay Assy | 1 шт. | — | |
|
| 23 | 1AE-82151-00-00 | . .Fuse (30A-Bl) | 2 шт. | — | |
|
| 24 | 5SL-82119-10-00 | Cover, Lead Wire | 1 шт. | — | |
|
| 25 | 95022-06008-00 | Bolt, Flange | 2 шт. | — | |
|
| 26 | 5TJ-82100-01-00 | Battery Assy (Ytz7s(F)) | 1 шт. | — | |
|
| 27 | BN6-82590-10-00 | Wire Harness Assy | 1 шт. | — | |
|
| 28 | 5JJ-82151-10-00 | . .Fuse (15A-Bl) | 5 шт. | — | |
|
| 29 | 5JJ-82151-30-00 | . .Fuse (10A-Bl) | 3 шт. | — | |
|
| 30 | 5JW-82151-10-00 | . .Fuse (50A) | 1 шт. | — | |
|
| 31 | 5JJ-82151-00-00 | . .Fuse (7.5A-Bl) | 6 шт. | — | |
|
| 32 | 5JJ-82151-80-00 | . .Fuse (2A-Bl) | 2 шт. | — | |
|
| 33 | 91380-06012-00 | Bolt | 1 шт. | — | |
|
| 34 | 5VK-81950-40-00 | Relay Assy (5Vk-40) | 1 шт. | — | |
|
| 35 | 1TP-81950-00-00 | Relay Assy (1Tp-00) | 1 шт. | — | |
|
| 36 | 5EA-81952-00-00 | . .Holder, Relay | 1 шт. | — | |
|
| 37 | 5PS-82576-01-00 | Sensor, Lean Angle | 1 шт. | — | |
|
| 38 | 91317-04025-00 | Bolt,Hex.Socket Head | 2 шт. | — | |
|
| 39 | 90201-042E0-00 | Washer, Plate | 2 шт. | — | |
|
| 40 | BN6-81960-00-00 | Rectifier & Regulator Assy | 1 шт. | — | |
|
| 41 | 92012-06020-00 | Bolt, Button Head | 2 шт. | — | |
|
| 42 | 1UA-82591-00-00 | Band | 2 шт. | — | |
|
| 43 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 44 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 45 | 90464-13077-00 | Clamp | 2 шт. | — | |
|
| 46 | 90464-30011-00 | Clamp | 1 шт. | — | |
|
| 47 | 90464-13227-00 | Clamp | 1 шт. | — | |
|
