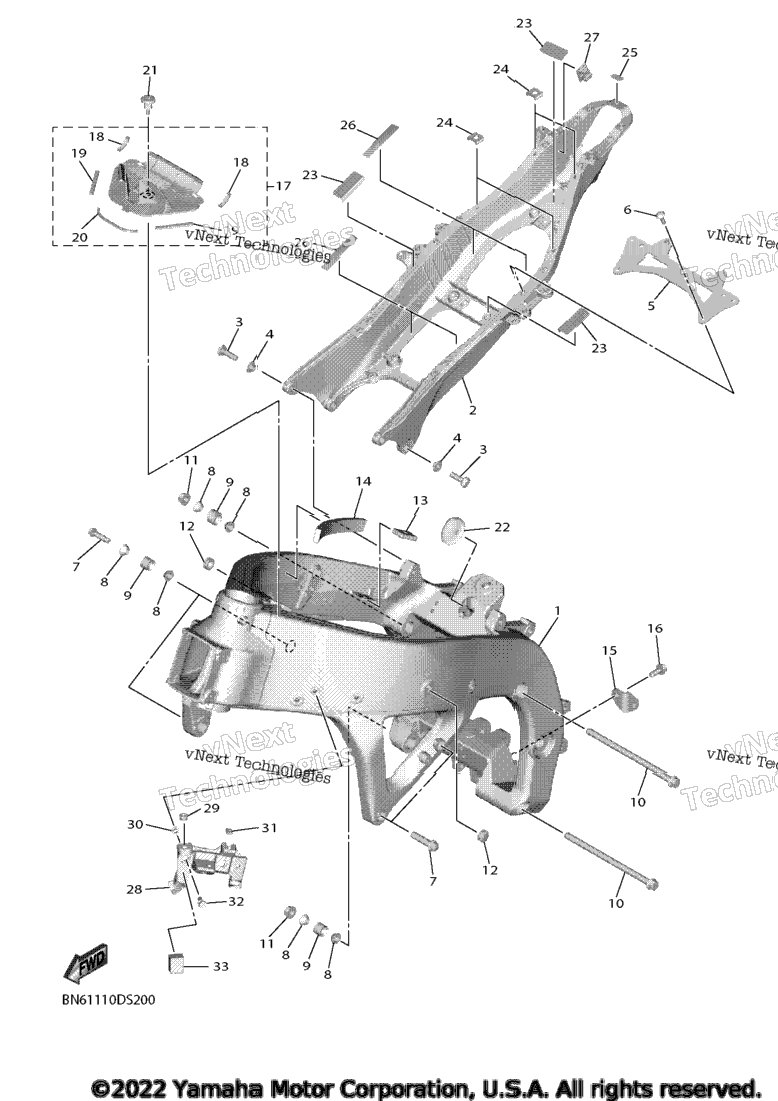

| 1 | BN6-21110-00-00 | Frame Comp | 1 шт. | — | |
|
| 2 | BN6-21190-00-00 | Rear Frame Comp | 1 шт. | — | |
|
| 3 | 90149-10002-00 | Screw | 4 шт. | — | |
|
| 4 | 2CR-21116-00-00 | Collar | 4 шт. | — | |
|
| 5 | BN6-21670-00-00 | Reinf. Comp | 1 шт. | — | |
|
| 6 | 90111-06155-00 | Bolt, Hexagon Socket Button | 4 шт. | — | |
|
| 7 | 95024-10040-00 | Bolt, Flange (Small Head) | 4 шт. | — | |
|
| 8 | 13S-21414-00-00 | Boss, Engine Mount | 8 шт. | — | |
|
| 9 | 13S-21424-00-00 | Boss, Engine Mount | 4 шт. | — | |
|
| 10 | 90105-12228-00 | Bolt, Flange | 2 шт. | — | |
|
| 11 | 90179-12004-00 | Nut | 2 шт. | — | |
|
| 12 | 90338-15004-00 | Plug | 2 шт. | — | |
|
| 13 | 2C0-24182-00-00 | Damper, Locating 2 | 2 шт. | — | |
|
| 14 | 2C0-21486-00-00 | Damper 2 | 2 шт. | — | |
|
| 15 | 13S-21435-00-00 | Bracket, Muffler 1 | 1 шт. | — | |
|
| 16 | 90105-08171-00 | Bolt, Flange | 1 шт. | — | |
|
| 17 | 13S-2110M-00-00 | Cover Assy 1 | 1 шт. | — | |
|
| 18 | 13S-2174X-00-00 | . .Damper | 2 шт. | — | |
|
| 19 | 2C0-2174Y-00-00 | . .Damper | 0 шт. | — | |
|
| 20 | 2C0-21746-00-00 | . .Damper | 1 шт. | — | |
|
| 21 | 90269-07010-00 | Plastic Screw | 1 шт. | — | |
|
| 22 | 2C0-21279-00-00 | Plug, Blind | 1 шт. | — | |
|
| 23 | 4B5-28268-00-00 | Seal 4 | 3 шт. | — | |
|
| 24 | 2CR-22875-01-00 | Seal 3 | 4 шт. | — | |
|
| 25 | 5SL-21268-00-00 | Seal | 1 шт. | — | |
|
| 26 | 4B5-28238-00-00 | Seal 3 | 4 шт. | — | |
|
| 27 | 90464-13004-00 | Clamp | 1 шт. | — | |
|
| 28 | 13S-2833A-00-00 | Bracket 7 | 1 шт. | — | |
|
| 29 | 90480-10003-00 | Grommet | 1 шт. | — | |
|
| 30 | 90387-06048-00 | Collar | 2 шт. | — | |
|
| 31 | 90183-05076-00 | Nut, Spring | 1 шт. | — | |
|
| 32 | 95D02-06020-00 | Bolt, Flange Deep Recess | 2 шт. | — | |
|
| 33 | 13S-12679-00-00 | Damper, Shroud 6 | 1 шт. | — | |
|
