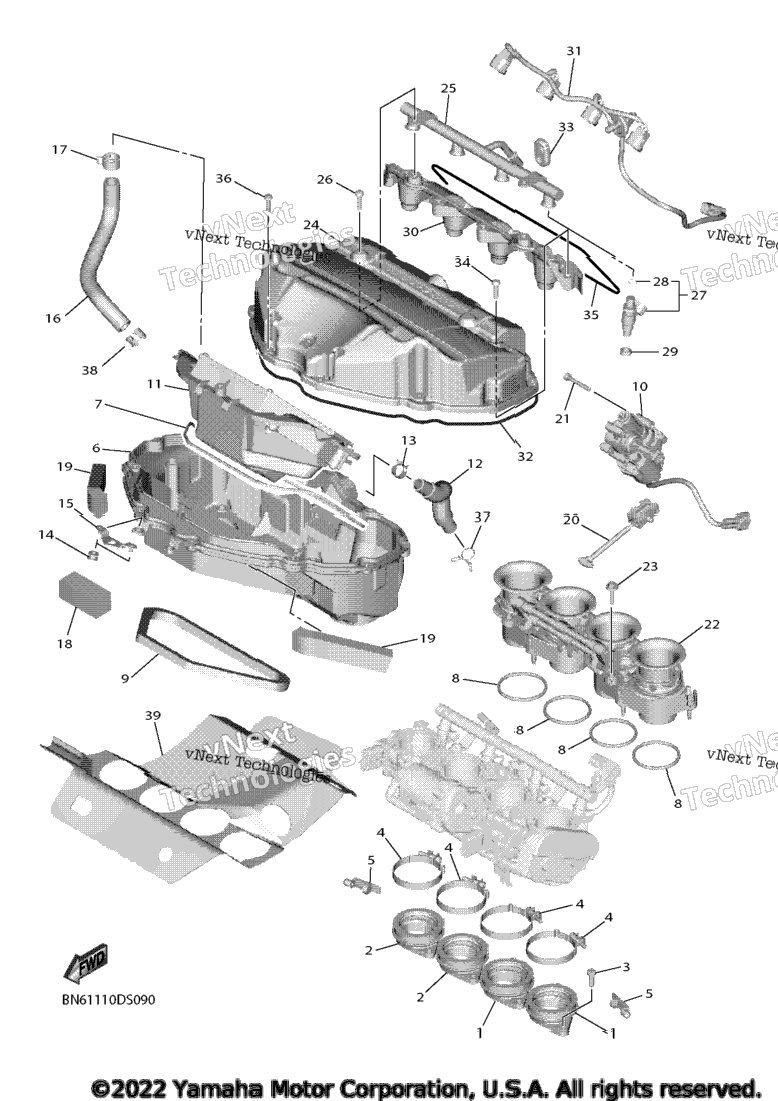

| 1 | 2C0-13586-00-00 | Joint, Carburetor 1 | 2 шт. | — | |
|
| 2 | 2C0-13596-00-00 | Joint, Carburetor 2 | 2 шт. | — | |
|
| 3 | 91312-06016-00 | Bolt, Hexagon Socket Head | 8 шт. | — | |
|
| 4 | 90450-56007-00 | Hose Clamp Assy | 4 шт. | — | |
|
| 5 | 2C0-13881-00-00 | Cover 1 | 2 шт. | — | |
|
| 6 | 13S-14411-01-00 | Case, Air Cleaner 1 | 1 шт. | — | |
|
| 7 | 13S-14462-00-00 | Seal | 1 шт. | — | |
|
| 8 | 13S-14457-00-00 | Seal | 4 шт. | — | |
|
| 9 | 2C0-14467-00-00 | Seal | 1 шт. | — | |
|
| 10 | 13S-85870-00-00 | Geared Motor Comp. 2 | 1 шт. | — | |
|
| 11 | 13S-14450-30-00 | Element Assy, Air Cleaner | 0 шт. | — | |
|
| 12 | BN6-15373-00-00 | Pipe, Breather | 1 шт. | — | |
|
| 13 | 90467-15001-00 | Clip | 1 шт. | — | |
|
| 14 | 90480-08264-00 | Grommet | 2 шт. | — | |
|
| 15 | 13S-14498-00-00 | Stay 1 | 1 шт. | — | |
|
| 16 | BN6-14882-00-00 | Hose, Bend 2 | 1 шт. | — | |
|
| 17 | 90467-180A3-00 | Clip | 1 шт. | — | |
|
| 18 | 2C0-14409-00-00 | Damper | 1 шт. | — | |
|
| 19 | 2C0-14425-00-00 | Damper 1 | 2 шт. | — | |
|
| 20 | 13S-14490-10-00 | Shaft Assy | 1 шт. | — | |
|
| 21 | 90110-05047-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 22 | 13S-1440B-10-00 | Joint Assy | 1 шт. | — | |
|
| 23 | 90159-05035-00 | Screw, With Washer | 2 шт. | — | |
|
| 24 | 13S-14421-11-00 | Case, Air Cleaner 2 | 1 шт. | — | |
|
| 25 | 13S-13938-00-00 | Pipe | 1 шт. | — | |
|
| 26 | 90111-06064-00 | Bolt,Hex. Socket Button | 2 шт. | — | |
|
| 27 | 13S-13761-00-00 | Injector | 4 шт. | — | |
|
| 28 | 5PS-14147-00-00 | . .O-Ring | 1 шт. | — | |
|
| 29 | 90430-09002-00 | Gasket | 4 шт. | — | |
|
| 30 | 13S-13767-01-00 | Cap, Injector | 1 шт. | — | |
|
| 31 | 13S-82318-00-00 | Wire, Sub-Lead | 1 шт. | — | |
|
| 32 | 2C0-14452-00-00 | Seal | 1 шт. | — | |
|
| 33 | 13S-14445-00-00 | Grommet | 1 шт. | — | |
|
| 34 | 92012-06020-00 | Bolt, Button Head | 4 шт. | — | |
|
| 35 | 13S-1446R-00-00 | Seal | 1 шт. | — | |
|
| 36 | 98902-05020-00 | Screw, Bind | 11 шт. | — | |
|
| 37 | 90467-14015-00 | Clip | 1 шт. | — | |
|
| 38 | 90467-180A3-00 | Clip | 1 шт. | — | |
|
| 39 | BN6-12682-00-00 | Protector, Heat | 1 шт. | — | |
|
