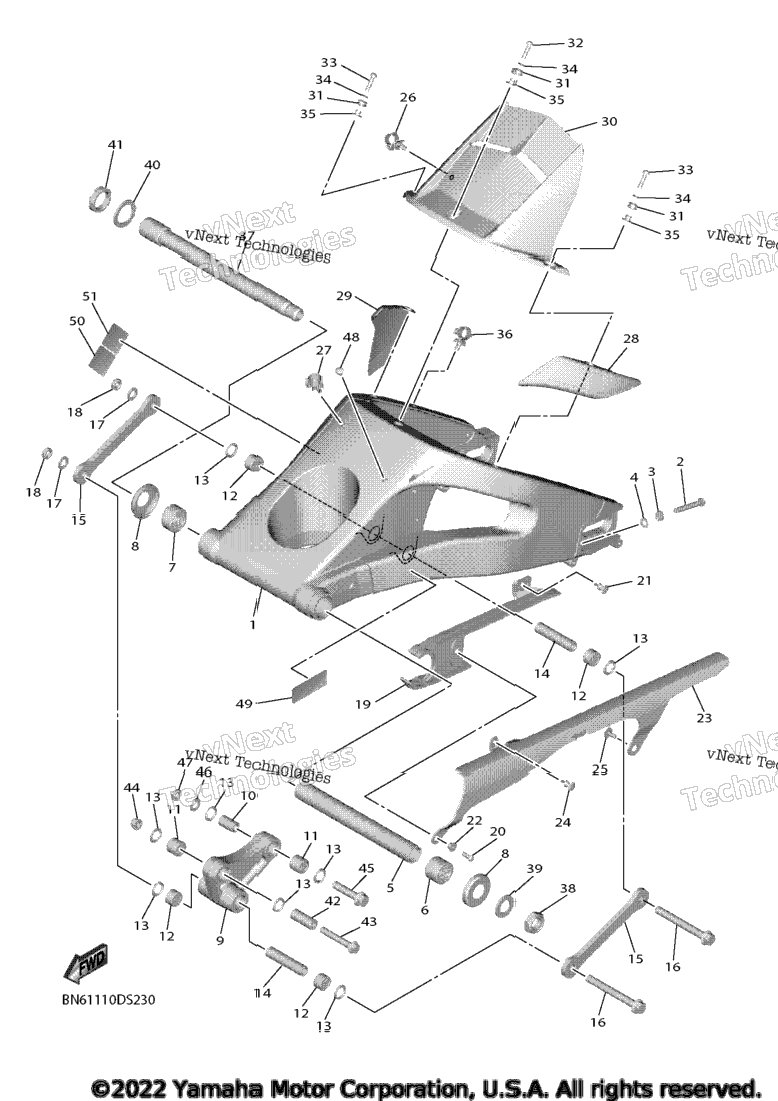

| 1 | BN6-22110-00-00 | Rear Arm Comp | 1 шт. | — | |
|
| 2 | 90101-08013-00 | Bolt | 2 шт. | — | |
|
| 3 | 95302-08600-00 | Nut, Hexagon | 2 шт. | — | |
|
| 4 | 90201-08057-00 | Washer, Plate | 2 шт. | — | |
|
| 5 | 2C0-22184-00-00 | Bush | 1 шт. | — | |
|
| 6 | 93317-330A0-00 | Bearing | 1 шт. | — | |
|
| 7 | 93317-330A1-00 | Bearing | 1 шт. | — | |
|
| 8 | 2C0-22128-00-00 | Cover, Thrust 1 | 2 шт. | — | |
|
| 9 | 2C0-2217A-00-00 | Arm, Relay | 1 шт. | — | |
|
| 10 | 90387-127W0-00 | Collar | 1 шт. | — | |
|
| 11 | 93315-31759-00 | Bearing | 2 шт. | — | |
|
| 12 | 93315-31758-00 | .Bearing | 4 шт. | — | |
|
| 13 | 93109-17071-00 | .Oil Seal | 8 шт. | — | |
|
| 14 | 90387-126Y1-00 | Collar | 2 шт. | — | |
|
| 15 | 2C0-2217M-00-00 | Arm 1 | 2 шт. | — | |
|
| 16 | 90105-12081-00 | Bolt, Flange | 2 шт. | — | |
|
| 17 | 92902-12600-00 | Washer, Plate | 2 шт. | — | |
|
| 18 | 90185-12011-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 19 | 2C0-22151-00-00 | Seal, Guard | 1 шт. | — | |
|
| 20 | 92012-06016-00 | Bolt, Button Head | 1 шт. | — | |
|
| 21 | 90269-07008-00 | Rivet | 1 шт. | — | |
|
| 22 | 90387-062X0-00 | Collar | 1 шт. | — | |
|
| 23 | 2C0-22311-00-00 | Case, Chain | 1 шт. | — | |
|
| 24 | 90269-07007-00 | Rivet | 1 шт. | — | |
|
| 25 | 90110-06200-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 26 | 90464-16012-00 | Clamp | 1 шт. | — | |
|
| 27 | 90464-16011-00 | Clamp | 1 шт. | — | |
|
| 28 | 2C0-228A0-00-00 | Cover Assy 1 | 1 шт. | — | |
|
| 29 | 2C0-228B0-00-00 | Cover Assy 2 | 1 шт. | — | |
|
| 30 | 2C0-21650-10-00 | Rear Fender Comp | 1 шт. | — | |
|
| 31 | 90480-11006-00 | Grommet | 3 шт. | — | |
|
| 32 | 92014-06020-00 | Bolt, Button Head | 1 шт. | — | |
|
| 33 | 92014-06025-00 | Bolt, Button Head | 2 шт. | — | |
|
| 34 | 90201-06016-00 | Washer, Plate | 3 шт. | — | |
|
| 35 | 90387-06078-00 | Collar | 3 шт. | — | |
|
| 36 | 90464-16012-00 | Clamp | 1 шт. | — | |
|
| 37 | 2C0-22141-10-00 | Shaft, Pivot | 1 шт. | — | |
|
| 38 | 90185-22009-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 39 | 90201-22014-00 | Washer, Plate | 1 шт. | — | |
|
| 40 | 90201-33014-00 | Washer, Plate | 1 шт. | — | |
|
| 41 | 2C0-22252-00-00 | Nut | 1 шт. | — | |
|
| 42 | 90387-1012B-00 | Collar | 1 шт. | — | |
|
| 43 | 90105-10211-00 | Bolt, Flange | 1 шт. | — | |
|
| 44 | 95602-10200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 45 | 90105-12082-00 | Bolt, Flange Deep Recess | 1 шт. | — | |
|
| 46 | 92902-12600-00 | Washer, Plate | 1 шт. | — | |
|
| 47 | 90185-12011-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 48 | 90338-06018-00 | Plug | 1 шт. | — | |
|
| 49 | 2CR-21668-00-00 | Label, Tire | 1 шт. | — | |
|
| 50 | 13S-21684-10-00 | Plate, Routing FOR CALIFORNIA | 0 шт. | — | |
|
| 51 | 13S-21686-10-00 | Plate, Routing 2 FOR CALIFORNIA | 0 шт. | — | |
|
