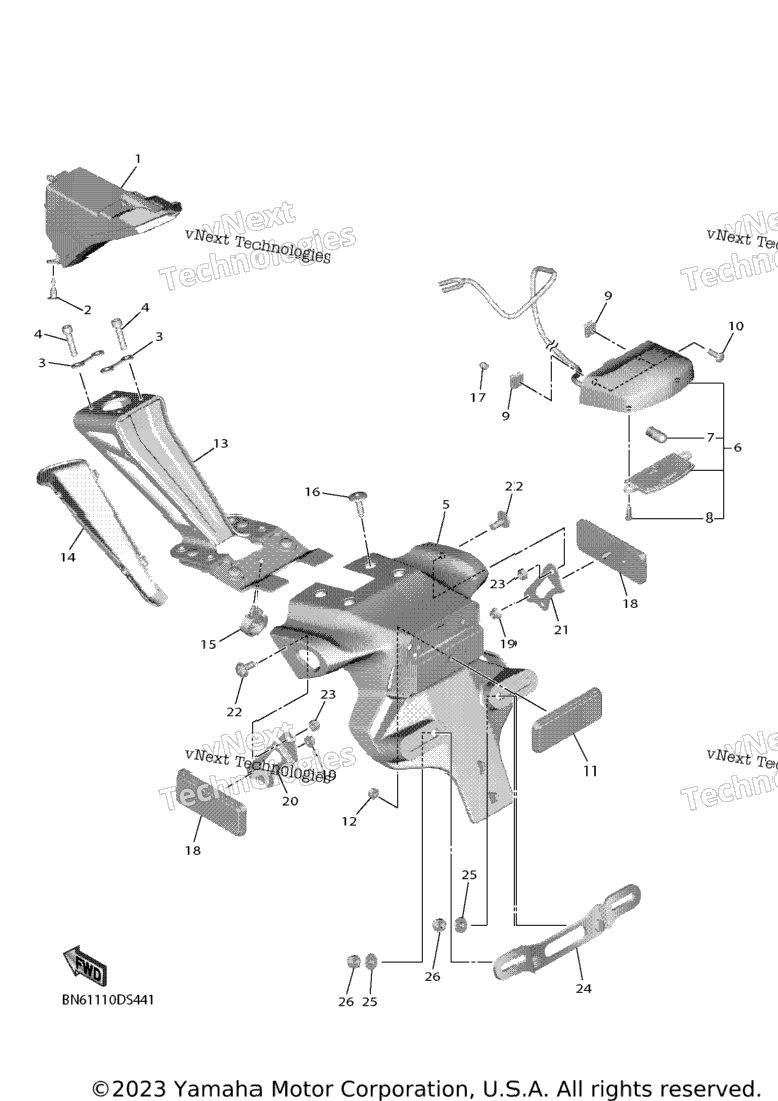

| 1 | 2CR-84710-00-00 | Taillight Unit Assy | 1 шт. | — | |
|
| 2 | 90269-06008-00 | Rivet | 2 шт. | — | |
|
| 3 | BN6-21615-00-00 | Washer, Special 1 | 2 шт. | — | |
|
| 4 | 90110-06295-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 5 | 2C0-21629-11-00 | Guard, Mud | 1 шт. | — | |
|
| 6 | 5VX-84745-01-00 | Licence Light Unit Assy | 1 шт. | — | |
|
| 7 | 4HC-84744-00-00 | . .Bulb (12V-5W) | 1 шт. | — | |
|
| 8 | 97706-04012-00 | . .Screw, Tapping | 2 шт. | — | |
|
| 9 | 90183-05061-00 | .Nut, Spring | 2 шт. | — | |
|
| 10 | 98902-05014-00 | Screw, Bind | 2 шт. | — | |
|
| 11 | 3Y6-85130-02-00 | Rear Reflector Assy | 1 шт. | — | |
|
| 12 | 95602-05200-00 | .Nut, Self-Locking | 1 шт. | — | |
|
| 13 | BN6-21640-00-00 | Rear Stay Comp | 1 шт. | — | |
|
| 14 | BN6-2163E-00-00 | Cover, Rear Fender 2 | 1 шт. | — | |
|
| 15 | 90464-14228-00 | Clamp | 1 шт. | — | |
|
| 16 | 90109-06182-00 | Bolt | 4 шт. | — | |
|
| 17 | 5VX-13569-01-00 | Plug, Blind | 1 шт. | — | |
|
| 18 | 3Y6-85130-02-00 | Rear Reflector Assy | 2 шт. | — | |
|
| 19 | 95702-05500-00 | Nut, Flange | 2 шт. | — | |
|
| 20 | 2C0-21688-00-00 | Bracket, Rear Stay | 1 шт. | — | |
|
| 21 | 2C0-21689-00-00 | Bracket, Rear Stay 2 | 1 шт. | — | |
|
| 22 | 90159-06011-00 | Screw, With Washer | 2 шт. | — | |
|
| 23 | 95602-06100-00 | Nut, Self-Locking | 2 шт. | — | |
|
| 24 | 5MT-84751-00-00 | Bracket, License | 1 шт. | — | |
|
| 25 | 90201-06057-00 | .Washer, Plate | 2 шт. | — | |
|
| 26 | 95602-06100-00 | Nut, Self-Locking | 2 шт. | — | |
|
