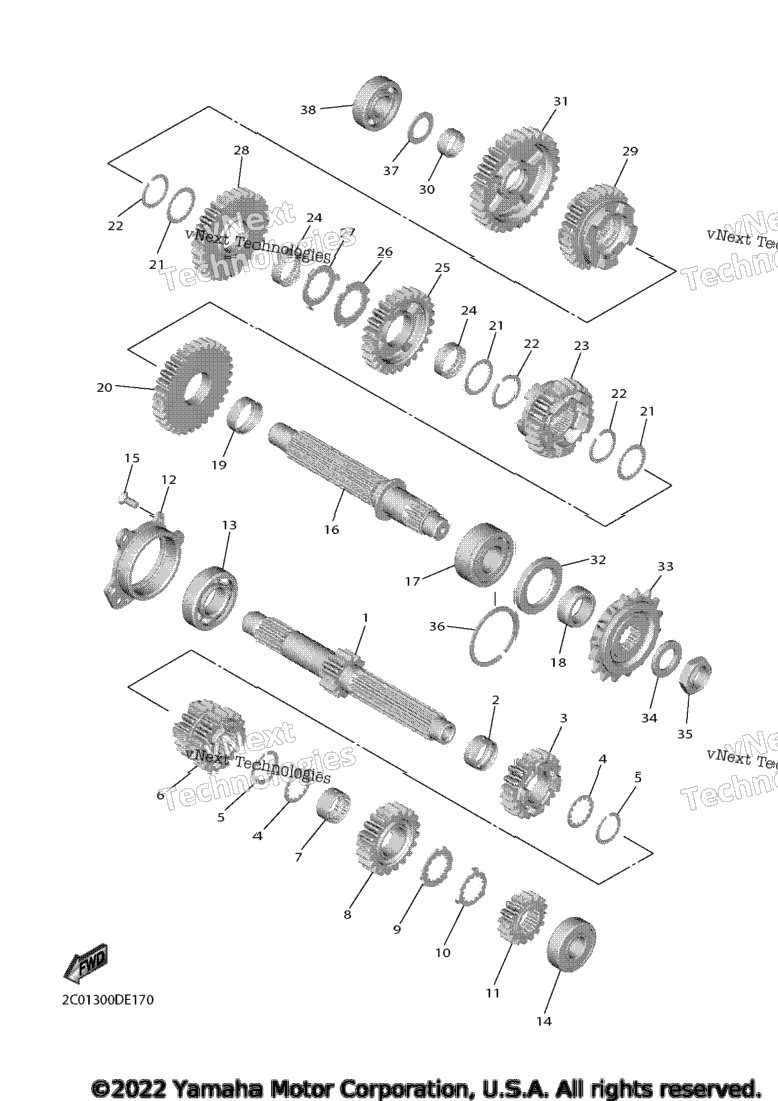

| 1 | 2C0-17411-00-00 | Axle, Main (12T) | 1 шт. | — | |
|
| 2 | 90387-250R3-00 | Collar | 1 шт. | — | |
|
| 3 | 13S-17151-00-00 | Gear, 5Th Pinion (21T) | 1 шт. | — | |
|
| 4 | 90209-21332-00 | Washer | 2 шт. | — | |
|
| 5 | 93440-25186-00 | Circlip | 2 шт. | — | |
|
| 6 | 13S-17131-00-00 | Gear, 3Rd Pinion (18T/18T) | 1 шт. | — | |
|
| 7 | 90387-21003-00 | Collar | 1 шт. | — | |
|
| 8 | 13S-17161-10-00 | Gear, 6Th Pinion (20T) | 1 шт. | — | |
|
| 9 | 90209-22352-00 | Washer | 1 шт. | — | |
|
| 10 | 90209-21351-00 | Washer | 1 шт. | — | |
|
| 11 | 13S-17121-10-00 | Gear, 2Nd Pinion (16T) | 1 шт. | — | |
|
| 12 | 2C0-15163-00-00 | Housing, Bearing 1 | 1 шт. | — | |
|
| 13 | 93306-20562-00 | Bearing | 1 шт. | — | |
|
| 14 | 93306-20464-00 | Bearing | 1 шт. | — | |
|
| 15 | 90151-06024-00 | .Screw, Countersunk | 3 шт. | — | |
|
| 16 | 13S-17421-00-00 | Axle, Drive | 1 шт. | — | |
|
| 17 | 93305-20509-00 | Bearing | 1 шт. | — | |
|
| 18 | 90387-25016-00 | Collar | 1 шт. | — | |
|
| 19 | 90387-28011-00 | Collar | 1 шт. | — | |
|
| 20 | 13S-17221-00-00 | Gear, 2Nd Wheel (32T) | 1 шт. | — | |
|
| 21 | 90209-25011-00 | Washer | 3 шт. | — | |
|
| 22 | 93440-28184-00 | Circlip | 3 шт. | — | |
|
| 23 | 2C0-17261-00-00 | Gear, 6Th Wheel (23T) | 1 шт. | — | |
|
| 24 | 90387-25015-00 | Collar | 2 шт. | — | |
|
| 25 | 2C0-17241-00-00 | Gear, 4Th Wheel (26T) | 1 шт. | — | |
|
| 26 | 90214-25004-00 | Washer, Claw | 1 шт. | — | |
|
| 27 | 90214-25003-00 | Washer, Claw | 1 шт. | — | |
|
| 28 | 2C0-17231-00-00 | Gear, 3Rd Wheel (30T) | 1 шт. | — | |
|
| 29 | 13S-17251-00-00 | Gear, 5Th Wheel (27T) | 1 шт. | — | |
|
| 30 | 90387-21004-00 | Collar | 1 шт. | — | |
|
| 31 | 2C0-17211-00-00 | Gear, 1St Wheel (31T) | 1 шт. | — | |
|
| 32 | 93102-35017-00 | Oil Seal | 1 шт. | — | |
|
| 33 | 2C0-17460-00-00 | Sprocket,Drive (16T) | 1 шт. | — | |
|
| 34 | 90201-20023-00 | Washer, Plate | 1 шт. | — | |
|
| 35 | 90179-20011-00 | Nut | 1 шт. | — | |
|
| 36 | 93440-52014-00 | Circlip | 1 шт. | — | |
|
| 37 | 90201-20278-00 | Washer, Plate | 1 шт. | — | |
|
| 38 | 93306-20464-00 | Bearing | 1 шт. | — | |
|
