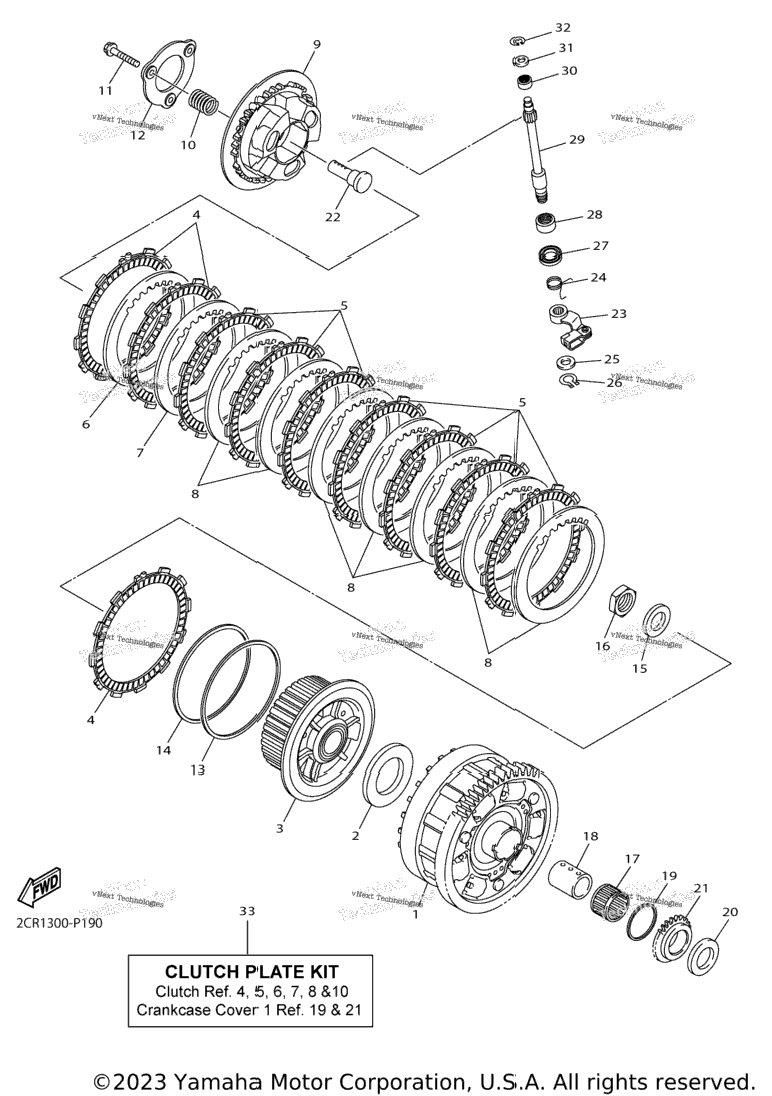

| 1 | 2CR-16150-00-00 | Primary Driven Gear Comp | 1 шт. | — | |
|
| 2 | 363-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 3 | 2CR-16371-00-00 | Boss, Clutch | 1 шт. | — | |
|
| 4 | 2CR-16330-00-00 | Plate, Friction 2 INCL. IN CLUTCH PLATE KIT | 3 шт. | — | |
|
| 5 | 2CR-16321-00-00 | Plate, Friction INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 6 | 2CR-16324-00-00 | Plate, Clutch 1 (T 2.6) INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 7 | 2CR-16325-10-00 | Plate, Clutch 2 UR (T 2.0) INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 7 | 2CR-16325-20-00 | Plate, Clutch 2 UR (T 2.6) INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 8 | 2CR-16325-00-00 | Plate, Clutch 2 (T 2.3) INCL. IN CLUTCH PLATE KIT | 7 шт. | — | |
|
| 8 | 2CR-16325-00-00 | Plate, Clutch 2 UR (T 2.3) INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 9 | BX4-16350-00-00 | Pressure Plate Assy | 1 шт. | — | |
|
| 10 | 2CR-16173-00-00 | Spring, Compression INCL. IN CLUTCH PLATE KIT | 3 шт. | — | |
|
| 11 | 2CR-16337-00-00 | Screw, Spring | 3 шт. | — | |
|
| 12 | 2CR-16352-00-00 | Plate, Pressure 2 | 1 шт. | — | |
|
| 13 | 2CR-16384-10-00 | Plate, Seat | 1 шт. | — | |
|
| 14 | 2CR-16383-00-00 | Spring.,Cushion | 1 шт. | — | |
|
| 15 | 90208-20001-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 16 | 90179-20007-00 | Nut | 1 шт. | — | |
|
| 17 | 93310-23168-00 | Bearing | 1 шт. | — | |
|
| 18 | 14B-16181-00-00 | Spacer 1 | 1 шт. | — | |
|
| 19 | 90201-44008-00 | Washer, Plate | 1 шт. | — | |
|
| 20 | 2CR-16154-00-00 | Plate, Thrust 1 | 1 шт. | — | |
|
| 21 | 14B-13354-00-00 | Sprocket, Drive | 1 шт. | — | |
|
| 22 | 1WS-16356-00-00 | Rod, Push 1 | 1 шт. | — | |
|
| 23 | 2CR-16340-00-00 | Push Lever Assy | 1 шт. | — | |
|
| 24 | 90508-16041-00 | Spring, Torsion | 1 шт. | — | |
|
| 25 | 90201-10029-00 | Washer, Plate | 1 шт. | — | |
|
| 26 | 99009-10400-00 | Circlip | 1 шт. | — | |
|
| 27 | 93102-15212-00 | .Oil Seal | 1 шт. | — | |
|
| 28 | 93315-21570-00 | .Bearing | 1 шт. | — | |
|
| 29 | 5VY-16382-10-00 | Axle, Push Lever | 1 шт. | — | |
|
| 30 | 93317-11096-00 | Bearing | 1 шт. | — | |
|
| 31 | 92907-08600-00 | Washer, Plate | 1 шт. | — | |
|
| 32 | 99001-07600-00 | Circlip | 1 шт. | — | |
|
| 33 | 2CR-W001G-00-00 | Clutch Plate Kit NOT SHOWN | 1 шт. | — | |
|
