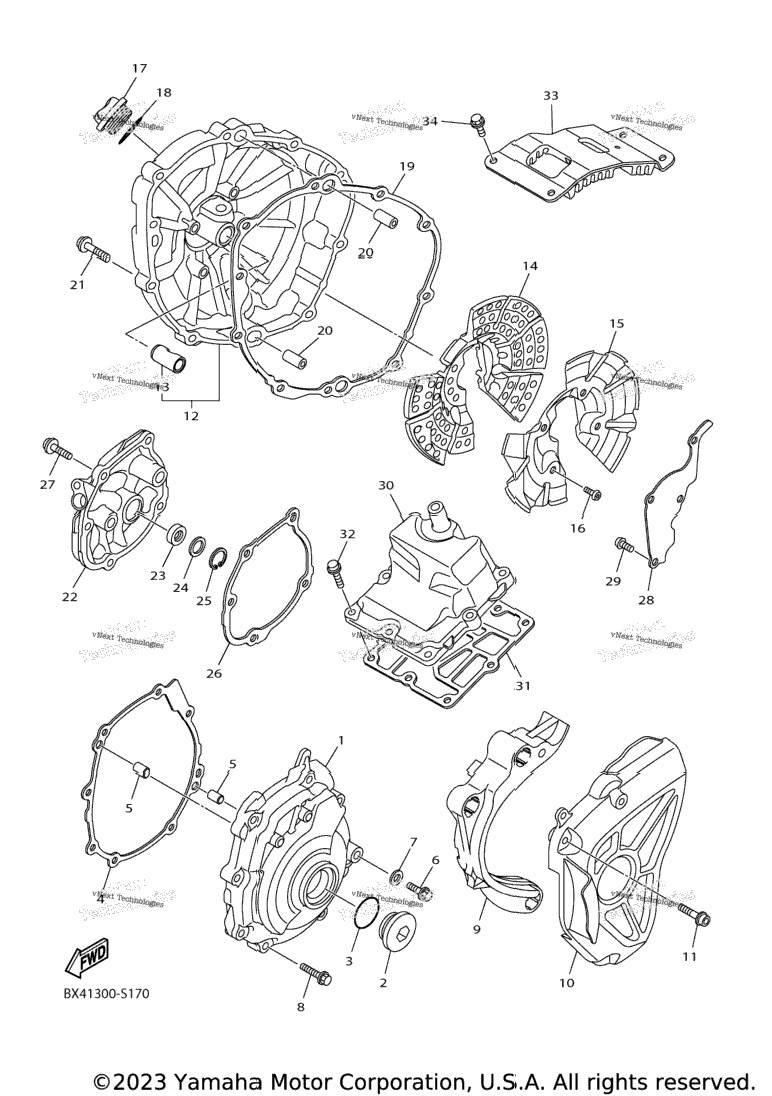

| 1 | BX4-15411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 90340-27007-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 3 | 93210-27370-00 | .O-Ring | 1 шт. | — | |
|
| 4 | 2CR-15451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 5 | 99530-08012-00 | .Pin, Dowel | 2 шт. | — | |
|
| 6 | 90109-08239-00 | Bolt | 1 шт. | — | |
|
| 7 | 90430-08143-00 | .Gasket | 1 шт. | — | |
|
| 9 | 2CR-15377-10-00 | Guide, Inlet | 1 шт. | — | |
|
| 10 | 2CR-15418-00-00 | Cover, Chain Case | 1 шт. | — | |
|
| 11 | 90110-06387-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 12 | BX4-15421-00-00 | Cover, Crankcase 2 | 1 шт. | — | |
|
| 13 | 5VY-15541-00-00 | . .Collar | 1 шт. | — | |
|
| 14 | 2CR-15316-00-00 | Damper 1 | 1 шт. | — | |
|
| 15 | 2CR-15492-00-00 | Cover | 1 шт. | — | |
|
| 17 | 2CR-15363-01-00 | Plug, Oil | 1 шт. | — | |
|
| 18 | 93210-29574-00 | O-Ring | 1 шт. | — | |
|
| 19 | 2CR-15461-00-00 | Gasket, Crankcase Cover 2 INCL. IN CLUTCH PLATE KIT | 1 шт. | — | |
|
| 20 | 91810-20002-00 | Pin, Dowel | 2 шт. | — | |
|
| 21 | 90109-06301-00 | Bolt INCL. IN CLUTCH PLATE KIT | 10 шт. | — | |
|
| 22 | BX4-15416-00-00 | Cover, Oil Pump | 1 шт. | — | |
|
| 23 | 93101-10004-00 | Oil Seal | 1 шт. | — | |
|
| 24 | 90201-12166-00 | Washer, Plate | 1 шт. | — | |
|
| 25 | 99009-19500-00 | Circlip | 1 шт. | — | |
|
| 26 | 2CR-15456-00-00 | Gasket, Oil Pump Cover 1 | 1 шт. | — | |
|
| 27 | 90109-06299-00 | Bolt | 5 шт. | — | |
|
| 28 | 2CR-11165-00-00 | Plate, Breather | 0 шт. | — | |
|
| 29 | 90149-06158-00 | Screw | 4 шт. | — | |
|
| 29 | 90149-06158-00 | Screw | 4 шт. | — | |
|
| 30 | 2CR-15413-00-00 | Cover | 1 шт. | — | |
|
| 31 | 2CR-15462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 32 | 90109-06300-00 | Bolt | 8 шт. | — | |
|
| 32 | 90109-06300-00 | Bolt | 8 шт. | — | |
|
| 33 | 2CR-15113-00-00 | Plate | 1 шт. | — | |
|
| 34 | 90110-06108-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
