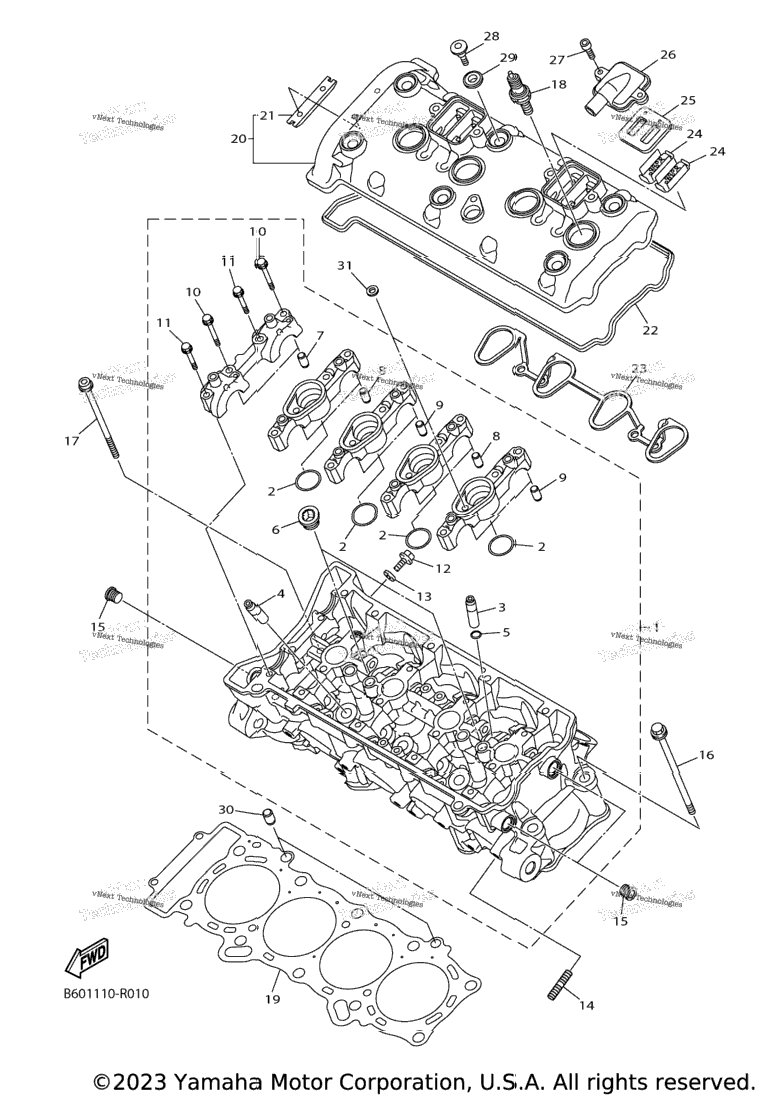

| 1 | BX4-W1101-09-00 | Cylinder Head Assy | 1 шт. | — | |
|
| 2 | 93210-26658-00 | . .O-Ring | 4 шт. | — | |
|
| 3 | 2CR-11133-10-00 | . .Guide, Valve 1 | 8 шт. | — | |
|
| 4 | 2CR-11134-10-00 | . .Guide, Valve 2 | 8 шт. | — | |
|
| 5 | 93440-10153-00 | . .Circlip | 8 шт. | — | |
|
| 6 | 90340-18004-00 | . .Plug, Straight Screw | 2 шт. | — | |
|
| 9 | 91808-16023-00 | . .Pin, Dowel | 4 шт. | — | |
|
| 9 | 91808-16023-00 | . .Pin, Dowel | 4 шт. | — | |
|
| 9 | 91808-16023-00 | . .Pin, Dowel | 2 шт. | — | |
|
| 10 | 90105-06027-00 | . .Bolt, Flange | 10 шт. | — | |
|
| 11 | 90105-06209-00 | . .Bolt, Flange | 10 шт. | — | |
|
| 12 | 95022-06012-00 | . Bolt, Flange | 1 шт. | — | |
|
| 13 | 90430-06014-00 | . .Gasket | 1 шт. | — | |
|
| 14 | 95612-08615-00 | Bolt, Stud | 8 шт. | — | |
|
| 15 | 90340-12013-00 | Plug, Straight Screw | 3 шт. | — | |
|
| 16 | 90119-09016-00 | Bolt, With Washer | 10 шт. | — | |
|
| 17 | 90110-06315-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 94701-00424-00 | Plug, Spark (Ngk Lmar9e-J) | 4 шт. | — | |
|
| 19 | 2CR-11181-00-00 | Gasket, Cylinder Head 1 | 1 шт. | — | |
|
| 20 | BX4-11191-00-00 | Cover, Cylinder Head 1 | 1 шт. | — | |
|
| 21 | 5BE-12241-00-00 | . Guide, Stopper 2 | 1 шт. | — | |
|
| 22 | 2CR-11193-00-00 | Gasket, Head Cover 1 | 1 шт. | — | |
|
| 23 | 2CR-11194-00-00 | Gasket, Head Cover 2 | 1 шт. | — | |
|
| 24 | 5VY-1482K-00-00 | Plate | 4 шт. | — | |
|
| 25 | 5SL-14890-10-00 | Reed Valve Assy | 2 шт. | — | |
|
| 26 | 14B-14899-01-00 | Cap, Case | 2 шт. | — | |
|
| 27 | 90110-06175-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 28 | 90109-066F0-00 | Bolt | 6 шт. | — | |
|
| 29 | 5VY-1111G-00-00 | Rubber, Mount 1 | 6 шт. | — | |
|
| 30 | 99530-10114-00 | Pin, Dowel | 2 шт. | — | |
|
| 31 | 90430-06166-00 | .Gasket | 4 шт. | — | |
|
