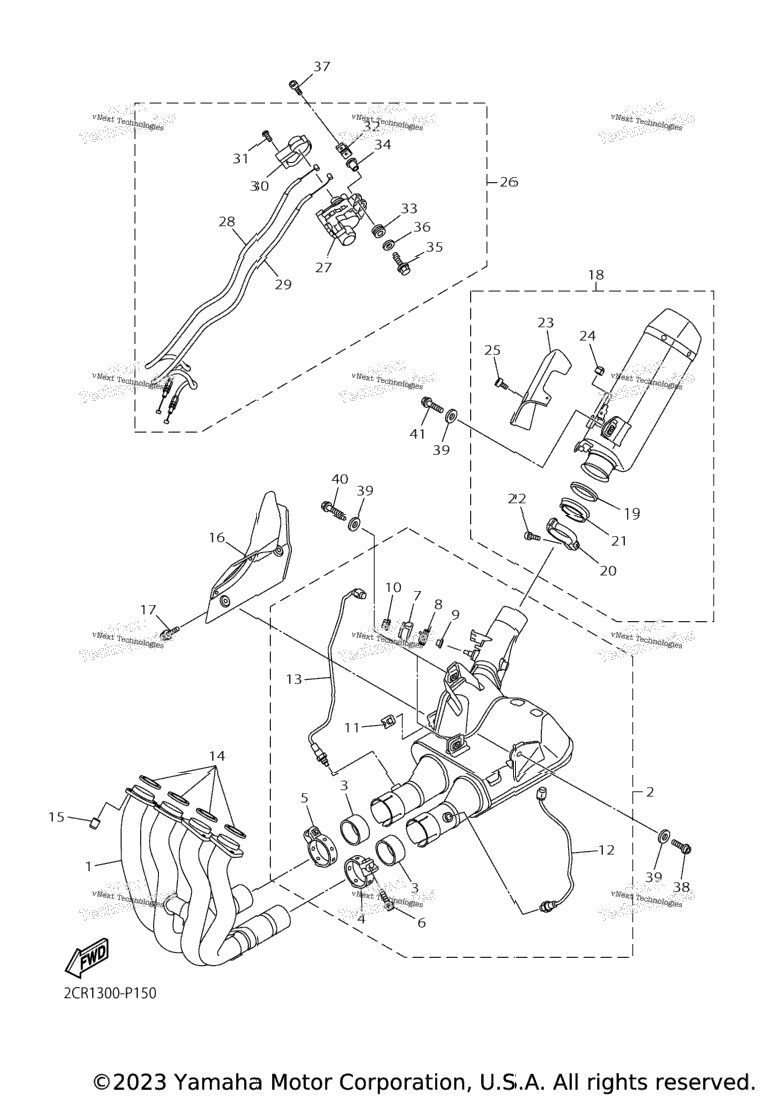

| 1 | 2CR-14602-00-00 | Exhaust Pipe Comp | 1 шт. | — | |
|
| 2 | 2CR-14730-00-00 | Chamber Assy | 1 шт. | — | |
|
| 3 | 5YU-14714-10-00 | . .Gasket, Muffler | 2 шт. | — | |
|
| 4 | 39P-14715-00-00 | . .Band, Muffler | 1 шт. | — | |
|
| 5 | 2CR-14715-00-00 | . .Band, Muffler | 1 шт. | — | |
|
| 6 | 95024-08035-00 | . .Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 7 | 2C0-14865-00-00 | . .Pulley | 1 шт. | — | |
|
| 8 | 2C0-14856-00-00 | . .Spring | 1 шт. | — | |
|
| 9 | 2D1-14843-00-00 | . .Seat, Spring | 1 шт. | — | |
|
| 10 | 90179-06063-00 | . .Nut | 1 шт. | — | |
|
| 11 | 90183-060A2-00 | . .Nut, Spring | 1 шт. | — | |
|
| 12 | 1WS-8592A-00-00 | . .Sensor, Oxygen | 1 шт. | — | |
|
| 13 | 2CR-8592A-10-00 | . .Sensor, Oxygen | 1 шт. | — | |
|
| 14 | 2CR-14613-00-00 | Gasket, Exhaust Pipe | 4 шт. | — | |
|
| 15 | 90179-08442-00 | Nut | 8 шт. | — | |
|
| 16 | 2CR-14708-00-00 | Protector Assy | 1 шт. | — | |
|
| 17 | 90111-06153-00 | .Bolt,Hex. Socket Button | 3 шт. | — | |
|
| 18 | 2CR-14750-00-00 | Silencer Assy | 1 шт. | — | |
|
| 19 | 2CR-14623-00-00 | . .Gasket, Exhaust Pipe | 1 шт. | — | |
|
| 20 | 2CR-14725-00-00 | . .Band, Muffler | 1 шт. | — | |
|
| 21 | 2CR-14618-00-00 | . .Ring, Stopper | 1 шт. | — | |
|
| 22 | 90110-06343-00 | . .Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 23 | 2CR-14718-00-00 | . .Protector, Muffler 1 | 1 шт. | — | |
|
| 24 | 5S7-14737-00-00 | . .Damper, Muffler | 2 шт. | — | |
|
| 25 | 90111-06153-00 | . .Bolt,Hex. Socket Button | 1 шт. | — | |
|
| 26 | 2CR-4616A-00-00 | Servo Motor Comp | 1 шт. | — | |
|
| 27 | 2CR-85820-00-00 | . .Servo Motor Assy | 1 шт. | — | |
|
| 28 | 2CR-1133E-00-00 | . .Cable, Pulley 1 | 1 шт. | — | |
|
| 29 | 2CR-1133F-00-00 | . .Cable, Pulley 2 | 1 шт. | — | |
|
| 30 | 5VY-85829-01-00 | . .Cover, Servo Motor | 1 шт. | — | |
|
| 31 | 97702-50514-00 | . .Screw, Tapping | 2 шт. | — | |
|
| 32 | 2CR-2116J-00-00 | . .Bracket 7 | 1 шт. | — | |
|
| 33 | 90480-14005-00 | . Grommet | 2 шт. | — | |
|
| 34 | 90387-063E6-00 | . Collar | 2 шт. | — | |
|
| 35 | 95022-06020-00 | . Bolt, Flange | 2 шт. | — | |
|
| 36 | 90201-06M31-00 | . Washer, Plate | 2 шт. | — | |
|
| 37 | 90110-06106-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 38 | 90110-08099-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 39 | 90201-087G2-00 | Washer, Plate | 4 шт. | — | |
|
| 40 | 90109-08238-00 | Bolt | 2 шт. | — | |
|
| 41 | 90110-08071-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
