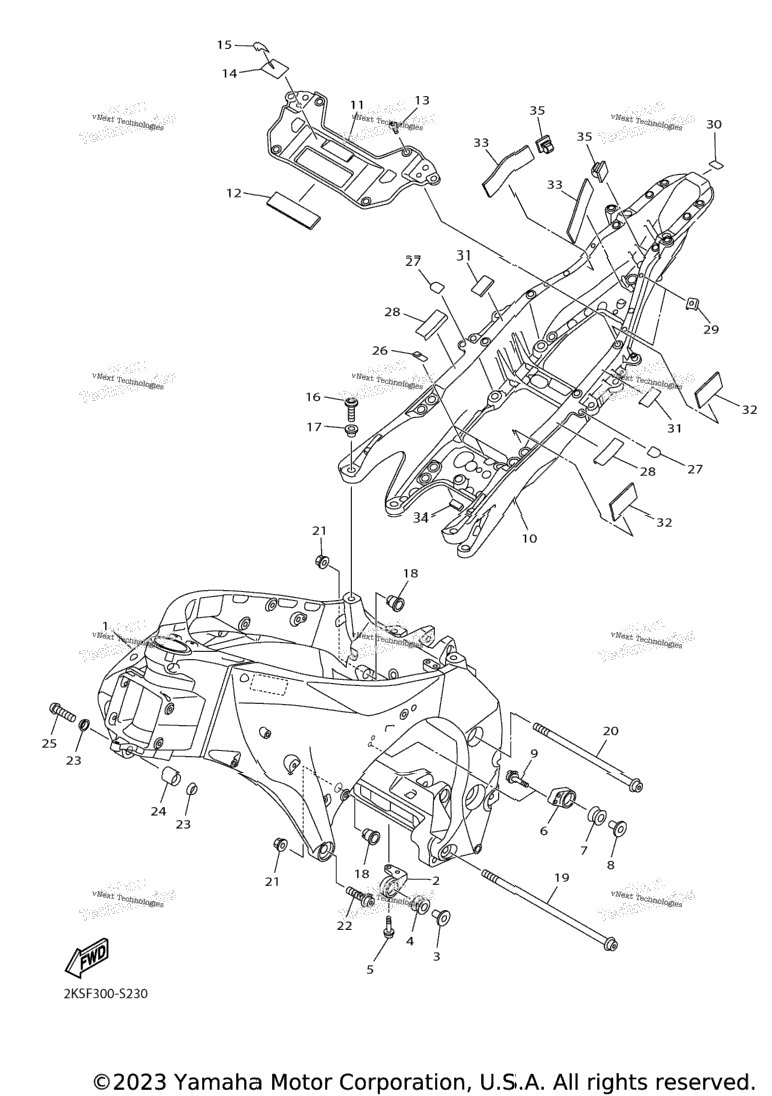

| 1 | 2CR-21110-00-00 | Frame Comp | 1 шт. | — | |
|
| 2 | 2CR-21435-00-00 | Bracket, Muffler 1 | 1 шт. | — | |
|
| 3 | 90387-08021-00 | Collar | 1 шт. | — | |
|
| 4 | 5VY-14747-00-00 | Damper, Muffler | 1 шт. | — | |
|
| 5 | 90110-06248-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 6 | 2CR-21436-00-00 | Brkt., Muff. 2 | 1 шт. | — | |
|
| 7 | 5VY-14747-00-00 | Damper, Muffler | 1 шт. | — | |
|
| 8 | 90387-08021-00 | Collar | 1 шт. | — | |
|
| 9 | 91312-06016-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 10 | 2CR-21190-10-00 | Rear Frame Comp | 1 шт. | — | |
|
| 11 | 2CR-21214-00-00 | Reinf., Frame Rr | 1 шт. | — | |
|
| 12 | 90520-06007-00 | Damper, Plate | 1 шт. | — | |
|
| 13 | 90111-06155-00 | Bolt,Hex. Socket Button | 4 шт. | — | |
|
| 14 | 2CR-22877-00-00 | Seal, 5 | 1 шт. | — | |
|
| 15 | 2CR-22878-00-00 | Seal 6 | 1 шт. | — | |
|
| 16 | 90149-10002-00 | Screw | 4 шт. | — | |
|
| 17 | 2CR-21116-00-00 | Collar | 4 шт. | — | |
|
| 18 | 5YU-21495-00-00 | Bolt, Engine Adjusting | 2 шт. | — | |
|
| 19 | 90110-12010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 20 | 90110-12008-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 21 | 90179-12004-00 | Nut | 2 шт. | — | |
|
| 22 | 90110-12007-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 23 | 14B-21414-00-00 | Boss, Engine Mount | 2 шт. | — | |
|
| 24 | 14B-21424-00-00 | Boss, Engine Mount | 1 шт. | — | |
|
| 25 | 90111-12003-00 | Bolt,Hex. Socket Button | 1 шт. | — | |
|
| 26 | 7TG-2214F-00-00 | Damper 1 | 3 шт. | — | |
|
| 27 | 2CR-22873-00-00 | Seal 1 | 2 шт. | — | |
|
| 28 | 2CR-22874-00-00 | Seal 2 | 2 шт. | — | |
|
| 29 | 2CR-22875-01-00 | Seal 3 | 4 шт. | — | |
|
| 30 | 5SL-21268-00-00 | .Seal | 1 шт. | — | |
|
| 31 | 2CR-22876-00-00 | Seal 4 | 2 шт. | — | |
|
| 32 | 5JW-2164K-00-00 | Patch 5 | 2 шт. | — | |
|
| 33 | 5TH-21268-01-00 | Seal | 2 шт. | — | |
|
| 34 | 13S-28415-00-00 | Damper 1 | 1 шт. | — | |
|
| 35 | 90464-13004-00 | Clamp | 2 шт. | — | |
|
