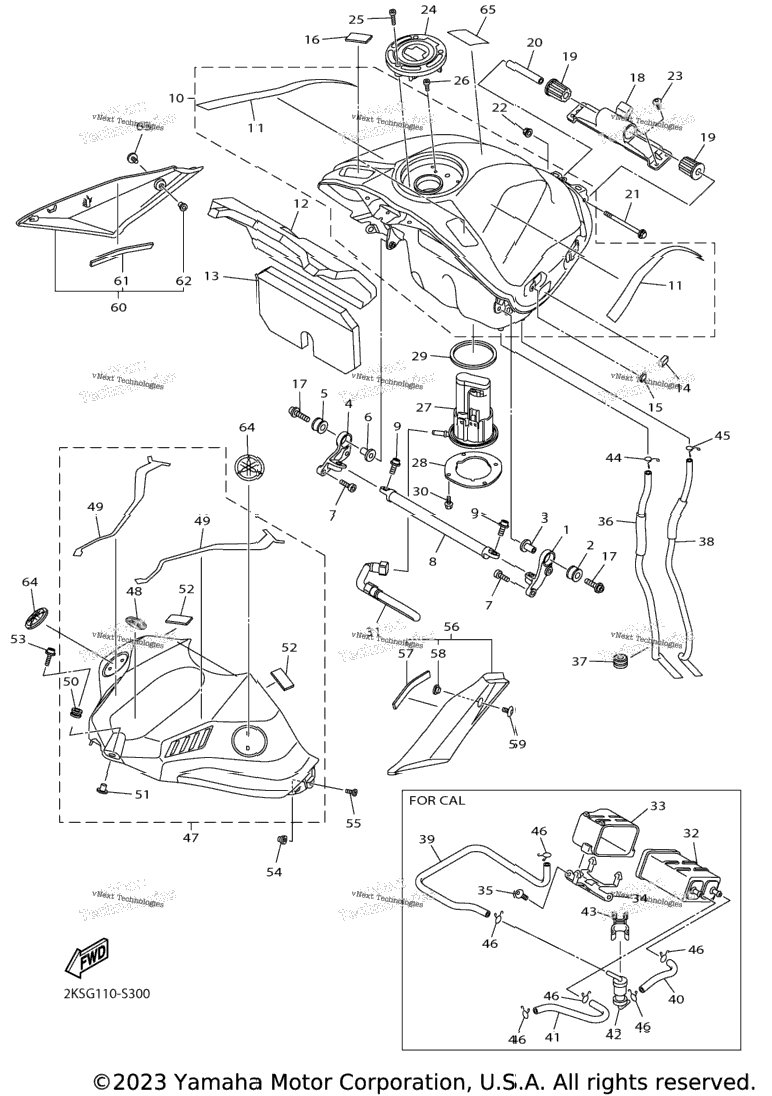

| 1 | 2CR-24191-00-00 | Bracket, Fuel Tank 1 | 1 шт. | — | |
|
| 2 | 90480-18008-00 | .Grommet | 1 шт. | — | |
|
| 3 | 90387-06091-00 | Collar | 1 шт. | — | |
|
| 4 | 2CR-24192-00-00 | Bracket, Fuel Tank 2 | 1 шт. | — | |
|
| 5 | 90480-18008-00 | .Grommet | 1 шт. | — | |
|
| 6 | 90387-06091-00 | Collar | 1 шт. | — | |
|
| 7 | 91312-06025-00 | Bolt, Hexagon Socket Head | 4 шт. | — | |
|
| 8 | 2CR-2142V-00-00 | Cross Bar | 1 шт. | — | |
|
| 9 | 90110-08097-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 10 | 2KS-Y2410-10-01 | Fuel Tank Comp SMX | 1 шт. | — | |
|
| 11 | 2KS-24240-00-00 | . .Graphic Set | 1 шт. | — | |
|
| 12 | 2CR-2414H-00-00 | Damper, Plate 1 | 1 шт. | — | |
|
| 13 | 2CR-2414J-00-00 | Damper, Plate 2 | 1 шт. | — | |
|
| 14 | 13S-21639-00-00 | Damper 2 | 2 шт. | — | |
|
| 15 | 5PW-2411J-01-00 | Damper, Side Cover | 2 шт. | — | |
|
| 16 | 2PP-2411G-00-00 | Hook, Side Cover 1 | 2 шт. | — | |
|
| 17 | 90110-06346-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 18 | 2CR-2413Y-00-00 | Bracket, Tank Fitting | 1 шт. | — | |
|
| 19 | 5SL-24183-00-00 | Damper, Locating 3 | 2 шт. | — | |
|
| 20 | 90387-06055-00 | Collar | 1 шт. | — | |
|
| 21 | 95812-06090-00 | Bolt, Flange | 1 шт. | — | |
|
| 22 | 95702-06500-00 | Nut, Flange | 1 шт. | — | |
|
| 23 | 90111-06071-00 | Bolt,Hex. Socket Button | 4 шт. | — | |
|
| 24 | 2CR-24602-00-00 | Cap Assy | 1 шт. | — | |
|
| 25 | 90110-05112-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 26 | 91312-05010-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 27 | 2CR-13907-00-00 | Fuel Pump Comp | 1 шт. | — | |
|
| 28 | 2CR-24491-00-00 | Bracket, Fuel Pump | 1 шт. | — | |
|
| 29 | 1RC-24486-00-00 | O-Ring | 1 шт. | — | |
|
| 30 | 90119-05015-00 | Bolt, With Washer | 4 шт. | — | |
|
| 31 | 2CR-13971-00-00 | Pipe, Fuel 1 | 1 шт. | — | |
|
| 32 | 2CR-24170-00-00 | Canister Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 33 | 2CR-24182-00-00 | Damper, Locating 2 FOR CALIFORNIA | 0 шт. | — | |
|
| 34 | 2CR-2419F-00-00 | Bracket, Canistor FOR CALIFORNIA | 0 шт. | — | |
|
| 35 | 90149-06084-00 | Screw FOR CALIFORNIA | 0 шт. | — | |
|
| 36 | 2CR-24312-00-00 | Pipe 2 | 1 шт. | — | |
|
| 37 | 90480-14032-00 | Grommet FOR CALIFORNIA | 0 шт. | — | |
|
| 38 | 2CR-24313-00-00 | Pipe 3 | 1 шт. | — | |
|
| 39 | 2CR-24314-00-00 | Pipe 4 FOR CALIFORNIA | 0 шт. | — | |
|
| 40 | 2CR-24315-00-00 | Pipe 5 FOR CALIFORNIA | 0 шт. | — | |
|
| 41 | 2CR-24316-00-00 | Pipe 6 FOR CALIFORNIA | 0 шт. | — | |
|
| 42 | 2C0-24180-00-00 | Roll Over Valve Assy FOR CALIFORNIA | 0 шт. | — | |
|
| 43 | 90464-15001-00 | Clamp FOR CALIFORNIA | 0 шт. | — | |
|
| 44 | 90467-11106-00 | Clip | 1 шт. | — | |
|
| 45 | 90467-090A2-00 | Clip | 1 шт. | — | |
|
| 46 | 90467-090A2-00 | Clip FOR CALIFORNIA | 0 шт. | — | |
|
| 47 | 2CR-Y217F-80-1X | Cover, Top (Fuel Tank) BWM2/SMX | 1 шт. | — | |
|
| 48 | 2KS-2416B-00-00 | . .Emblem | 1 шт. | — | |
|
| 49 | 2KS-24230-00-00 | . .Graphic Set 1 | 1 шт. | — | |
|
| 50 | 90480-12023-00 | . Grommet | 1 шт. | — | |
|
| 51 | 90387-06203-00 | . .Collar | 1 шт. | — | |
|
| 52 | 5XT-2411G-00-00 | . .Hook, Side Cover 1 | 2 шт. | — | |
|
| 53 | 90110-06233-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 54 | 90179-05523-00 | Nut | 2 шт. | — | |
|
| 55 | 98902-05014-00 | Screw, Bind | 2 шт. | — | |
|
| 56 | 2CR-24106-00-00 | Tank Side Cover Assy 1 | 1 шт. | — | |
|
| 57 | 90520-03016-00 | . .Damper, Plate | 1 шт. | — | |
|
| 58 | 90387-05035-00 | . Collar | 1 шт. | — | |
|
| 59 | 90111-05019-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 60 | 2CR-24108-00-00 | Tank Side Cover Assy 2 | 1 шт. | — | |
|
| 61 | 90520-03016-00 | . .Damper, Plate | 1 шт. | — | |
|
| 62 | 90387-05035-00 | . Collar | 1 шт. | — | |
|
| 63 | 90111-05019-00 | Bolt, Hex. Socket Button | 1 шт. | — | |
|
| 64 | 1RC-2413B-00-00 | Emblem | 2 шт. | — | |
|
| 65 | 29P-2816R-00-00 | Label, Warning General Info | 1 шт. | — | |
|
