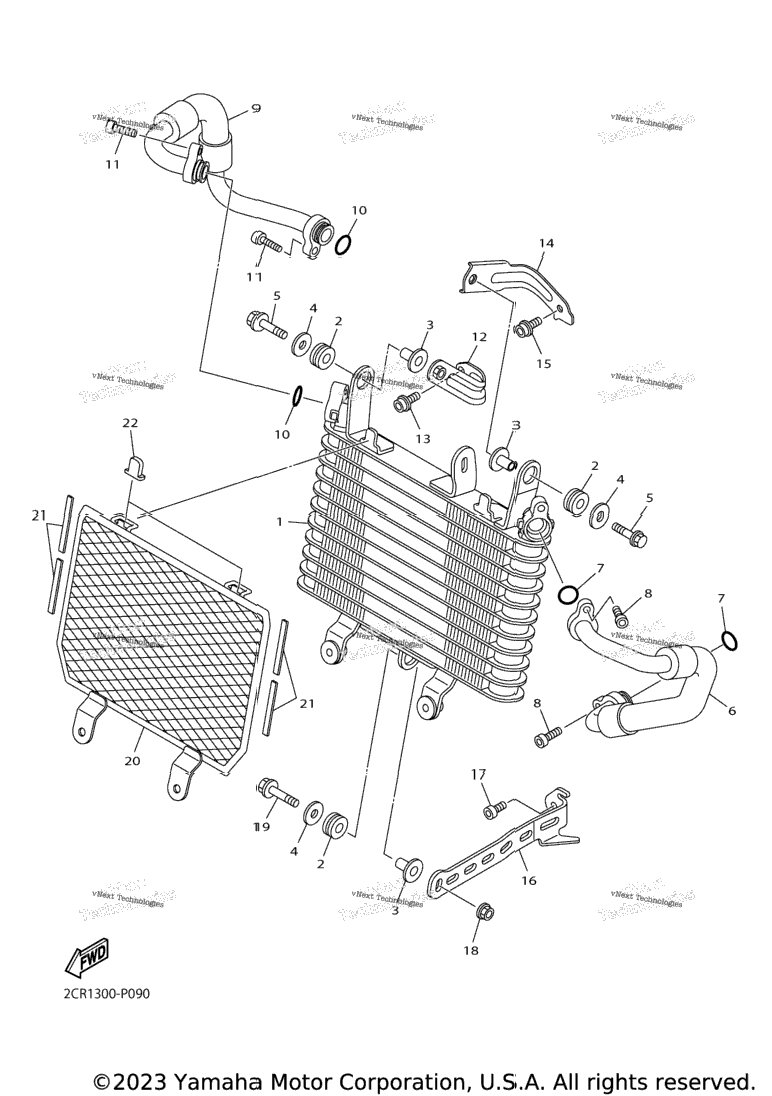

| 1 | 2CR-13470-00-00 | Oil Cooler Assy | 1 шт. | — | |
|
| 2 | 90480-15363-00 | Grommet | 3 шт. | — | |
|
| 3 | 90387-0614M-00 | Collar | 3 шт. | — | |
|
| 4 | 90201-06071-00 | .Washer, Plate | 3 шт. | — | |
|
| 5 | 90110-06346-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 6 | 2CR-13464-00-00 | Hose, Oil 1 | 1 шт. | — | |
|
| 9 | 2CR-13465-00-00 | Hose, Oil 2 | 1 шт. | — | |
|
| 10 | 93210-13657-00 | O-Ring | 2 шт. | — | |
|
| 10 | 93210-13657-00 | O-Ring | 2 шт. | — | |
|
| 11 | 90110-06211-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 11 | 90110-06211-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 12 | 2CR-13151-00-00 | Stay | 1 шт. | — | |
|
| 14 | 2CR-13152-00-00 | Stay 2 | 1 шт. | — | |
|
| 16 | 2CR-13782-00-00 | Stay | 1 шт. | — | |
|
| 17 | 90110-06341-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 17 | 90110-06341-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 17 | 90110-06341-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 18 | 95607-06200-00 | Nut, Self U-Flange | 1 шт. | — | |
|
| 19 | 95827-06030-00 | Bolt, Flange | 1 шт. | — | |
|
| 20 | 2CR-13463-00-00 | Cover, Oil Cooler | 1 шт. | — | |
|
| 21 | 2CR-13381-00-00 | Damper | 4 шт. | — | |
|
| 22 | 2CR-2411J-00-00 | Damper, Side Cover | 2 шт. | — | |
|
