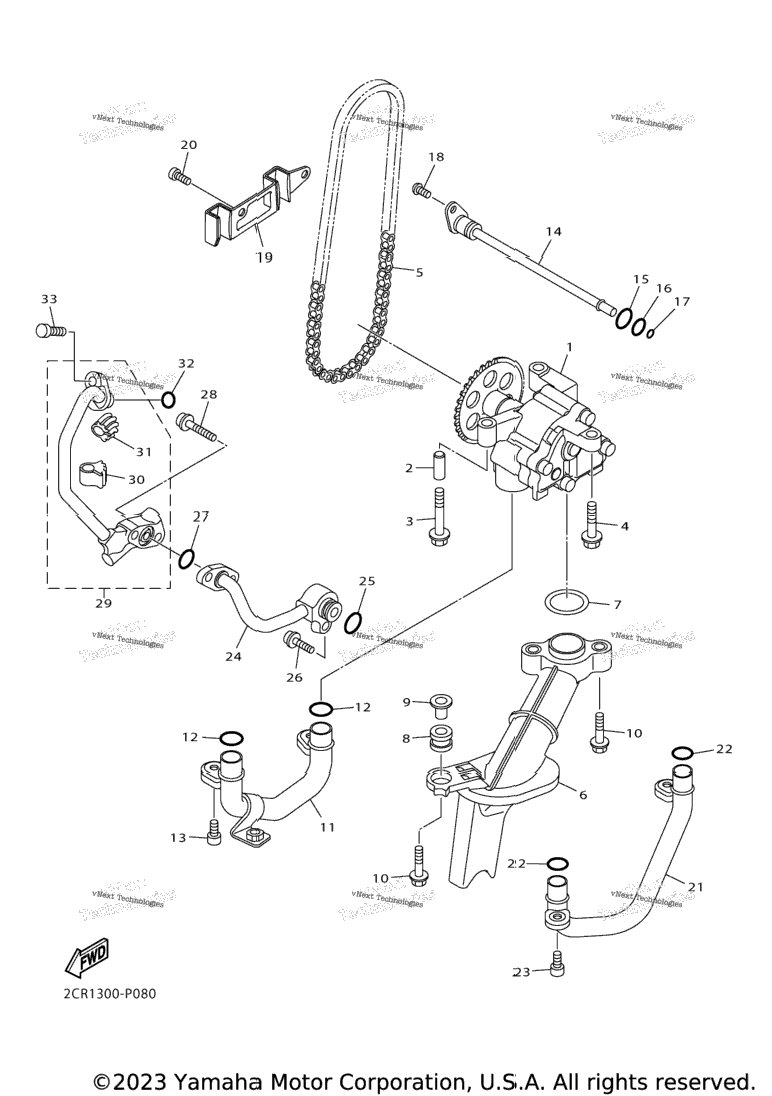

| 1 | 2CR-13300-00-00 | Oil Pump Assy | 1 шт. | — | |
|
| 2 | 91808-22019-00 | Pin, Dowel | 2 шт. | — | |
|
| 3 | 95817-06035-00 | Bolt, Flange | 2 шт. | — | |
|
| 4 | 95817-06025-00 | Bolt, Flange | 0 шт. | — | |
|
| 5 | 94580-31080-00 | Chain | 1 шт. | — | |
|
| 6 | 2CR-13410-00-00 | Strainer Housing Assy | 1 шт. | — | |
|
| 7 | 93210-22M93-00 | O-Ring | 1 шт. | — | |
|
| 8 | 90480-13010-00 | Grommet | 1 шт. | — | |
|
| 9 | 5VY-13117-10-00 | Collar, Distance | 1 шт. | — | |
|
| 10 | 90110-06173-00 | Bolt, Hexagon Socket Head | 3 шт. | — | |
|
| 11 | 2CR-13416-00-00 | Pipe, Oil 1 | 1 шт. | — | |
|
| 12 | 93210-14003-00 | O-Ring | 2 шт. | — | |
|
| 14 | 2CR-1316E-00-00 | Pipe, Delivery 5 | 1 шт. | — | |
|
| 15 | 93210-12010-00 | O-Ring | 1 шт. | — | |
|
| 16 | 93210-09525-00 | O-Ring | 1 шт. | — | |
|
| 17 | 93210-06667-00 | O-Ring | 1 шт. | — | |
|
| 18 | 90149-06158-00 | Screw | 1 шт. | — | |
|
| 19 | 2CR-13898-00-00 | Holder | 1 шт. | — | |
|
| 21 | 2CR-13171-00-00 | Pipe, Delivery 2 | 1 шт. | — | |
|
| 22 | 93210-13361-00 | O-Ring | 2 шт. | — | |
|
| 23 | 90110-06182-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 23 | 90110-06182-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 23 | 90110-06182-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 24 | 2CR-13405-00-00 | Oil Pipe Comp. 1 | 1 шт. | — | |
|
| 26 | 90110-06395-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 27 | 93210-12790-00 | .O-Ring | 1 шт. | — | |
|
| 27 | 93210-12790-00 | .O-Ring | 1 шт. | — | |
|
| 28 | 90110-06389-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 29 | 2CR-13170-00-00 | Delivery Pipe Assy 2 | 1 шт. | — | |
|
| 30 | 2CR-13159-00-00 | . .Damper | 1 шт. | — | |
|
| 31 | 2CR-13593-00-00 | . .Damper | 1 шт. | — | |
|
| 32 | 93210-09754-00 | O-Ring | 1 шт. | — | |
|
| 33 | 90110-06295-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
