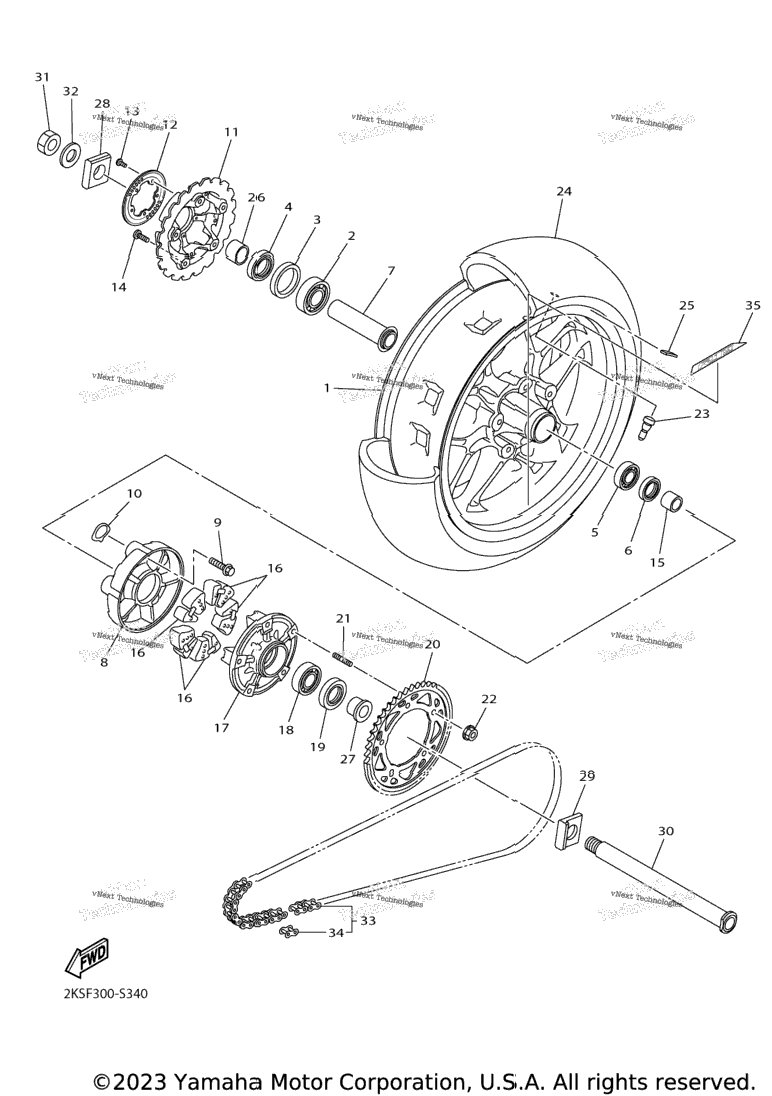

| 1 | 2CR-25338-00-P0 | Cast Wheel, Rear DPBM15 | 1 шт. | — | |
|
| 2 | 93306-27802-00 | Bearing | 1 шт. | — | |
|
| 3 | 2CR-2538E-00-00 | Nut, Adjusting | 1 шт. | — | |
|
| 4 | 93106-40001-00 | Oil Seal | 1 шт. | — | |
|
| 5 | 93306-07806-00 | Bearing | 1 шт. | — | |
|
| 6 | 93106-35042-00 | Oil Seal | 1 шт. | — | |
|
| 7 | 2CR-253W0-00-00 | Spacer Assy | 1 шт. | — | |
|
| 8 | 2CR-2531F-00-00 | Hub 2 | 1 шт. | — | |
|
| 9 | 90105-10450-00 | Bolt, Flange | 5 шт. | — | |
|
| 10 | 2CR-25319-00-00 | Seal, Hub Dust | 5 шт. | — | |
|
| 11 | 2CR-2581A-00-00 | Plate, Disk | 1 шт. | — | |
|
| 12 | 1SD-2517G-00-00 | Rotor, Sensor | 1 шт. | — | |
|
| 13 | 90149-05029-00 | Screw | 5 шт. | — | |
|
| 14 | 90111-08085-00 | Bolt,Hex. Socket Button | 5 шт. | — | |
|
| 15 | 90387-28022-00 | Collar | 1 шт. | — | |
|
| 16 | 2CR-25364-00-00 | Damper | 5 шт. | — | |
|
| 17 | 2CR-25366-00-00 | Clutch, Hub | 1 шт. | — | |
|
| 18 | 93306-20531-00 | Bearing | 1 шт. | — | |
|
| 19 | 93106-40013-00 | Oil Seal | 1 шт. | — | |
|
| 20 | 2CR-25441-00-00 | Sprocket, Driven (41T) | 1 шт. | — | |
|
| 21 | 90116-10048-00 | Bolt, Stud | 5 шт. | — | |
|
| 22 | 90185-10011-00 | Nut, Self-Locking | 5 шт. | — | |
|
| 23 | 93900-00030-00 | Valve, Rim (Tr412) TAIHEIYO | 1 шт. | — | |
|
| 24 | 94120-17011-00 | Tire (200/55 Zr17 M/C 78W) BRIDGESTONE | 1 шт. | — | |
|
| 25 | 2CR-25398-00-00 | Balancer, Wheel (5G) UN | 1 шт. | — | |
|
| 26 | 90387-28023-00 | Collar | 1 шт. | — | |
|
| 27 | 90387-28024-00 | Collar | 1 шт. | — | |
|
| 28 | 5VY-25388-00-00 | Puller, Chain 1 | 1 шт. | — | |
|
| 29 | 5VY-25389-01-00 | Puller, Chain 2 | 1 шт. | — | |
|
| 30 | 2CR-25381-00-00 | Axle, Wheel | 1 шт. | — | |
|
| 31 | 90185-24007-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 32 | 90201-25020-00 | Washer, Plate | 1 шт. | — | |
|
| 33 | 94582-40114-00 | Chain (Did 525Vz-114Ll) | 1 шт. | — | |
|
| 34 | 94682-40031-00 | . .Joint, Chain (Did525vz Zj) | 1 шт. | — | |
|
| 35 | 2KS-251G3-00-00 | Emblem | 2 шт. | — | |
|
