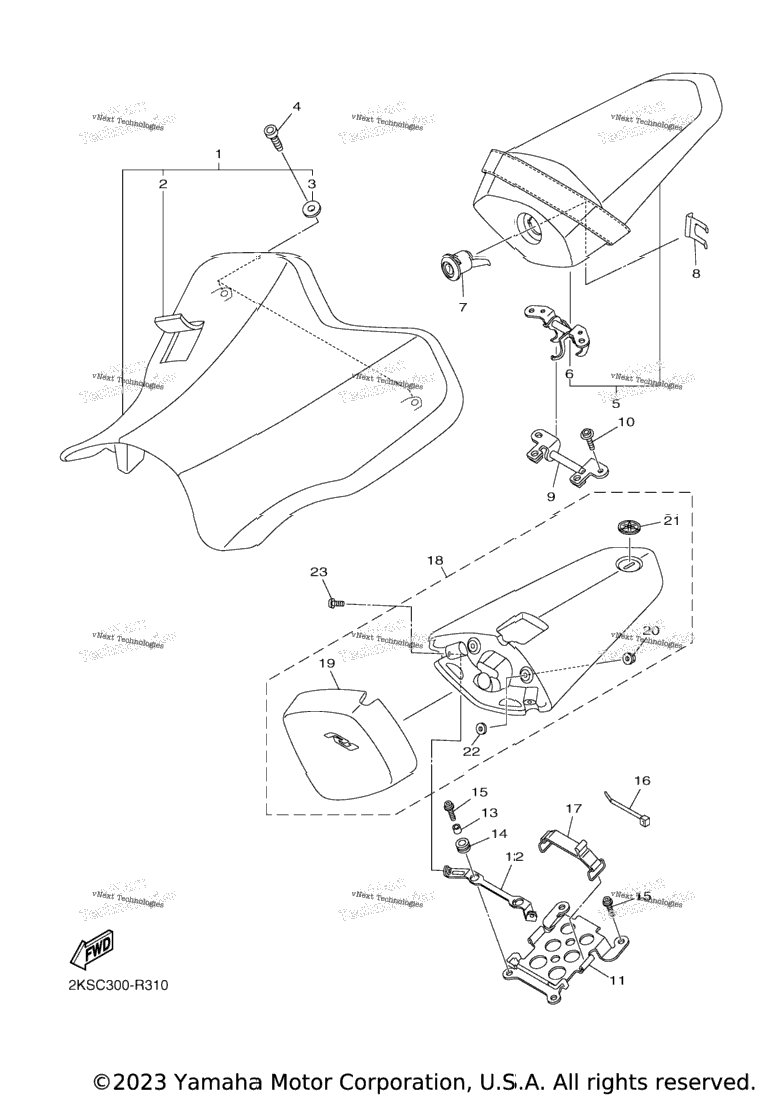

| 1 | 2CR-24710-00-00 | Single Seat Assy | 1 шт. | — | |
|
| 2 | 2CR-24711-00-00 | . .Cover, Single Seat | 1 шт. | — | |
|
| 3 | 90387-06066-00 | . Collar | 2 шт. | — | |
|
| 4 | 90110-06258-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 5 | 2CR-24750-00-00 | Tandem Seat Assy | 1 шт. | — | |
|
| 6 | 2CR-2478R-00-00 | . .Seat Lock Comp | 1 шт. | — | |
|
| 7 | 2CR-W2470-00-00 | Rotor Set | 1 шт. | — | |
|
| 8 | 5VY-2176V-00-00 | Spring, Lock 2 | 1 шт. | — | |
|
| 9 | 2CR-2478X-00-00 | Bracket, Seat Lock | 1 шт. | — | |
|
| 10 | 90110-06163-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 11 | 2KS-2475U-00-00 | Bracket, Tail Cover | 1 шт. | — | |
|
| 12 | 2KS-2475V-00-00 | Bracket, Tail Cover 2 | 1 шт. | — | |
|
| 13 | 90387-06023-00 | Collar | 2 шт. | — | |
|
| 14 | 90480-12237-00 | .Grommet | 2 шт. | — | |
|
| 15 | 90110-06163-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 16 | 1UA-82591-00-00 | Band | 1 шт. | — | |
|
| 17 | 55K-2811G-00-00 | Band | 1 шт. | — | |
|
| 18 | 2KS-2477A-00-00 | Seat Cover Assy | 1 шт. | — | |
|
| 19 | 2KS-24753-00-00 | . .Cushion | 1 шт. | — | |
|
| 20 | 95602-06200-00 | . Nut, Self-Locking | 2 шт. | — | |
|
| 21 | 8GC-2836B-02-00 | . Tuning Fork Mark | 1 шт. | — | |
|
| 22 | 90201-063A5-00 | . .Washer, Plate | 2 шт. | — | |
|
| 23 | 90149-06250-00 | Screw | 2 шт. | — | |
|
