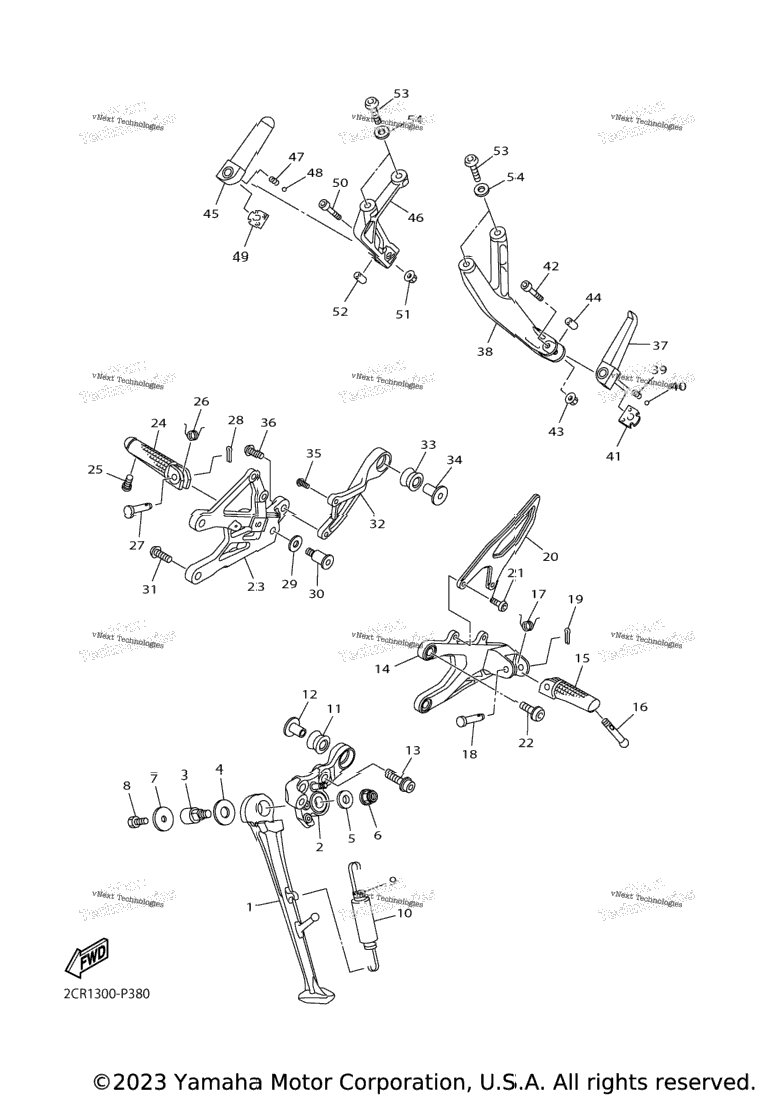

| 1 | 2CR-27311-00-00 | Stand, Side | 1 шт. | — | |
|
| 2 | 2CR-27321-00-00 | Bracket, Side Stand | 1 шт. | — | |
|
| 3 | 2C0-27351-00-00 | Guide, Side Stand | 1 шт. | — | |
|
| 4 | 90201-146F9-00 | Washer, Plate | 1 шт. | — | |
|
| 5 | 90201-10035-00 | Washer, Plate | 1 шт. | — | |
|
| 6 | 95602-10200-00 | Nut, S/L Flange | 1 шт. | — | |
|
| 7 | 90201-08050-00 | Washer, Plate | 1 шт. | — | |
|
| 8 | 90101-08662-00 | Bolt | 1 шт. | — | |
|
| 9 | 90506-18008-00 | Spring, Tension | 1 шт. | — | |
|
| 10 | 90445-19002-00 | Hose (L60) | 1 шт. | — | |
|
| 11 | 5VY-14747-00-00 | Damper, Muffler | 1 шт. | — | |
|
| 12 | 90387-08021-00 | Collar | 1 шт. | — | |
|
| 13 | 90109-10002-00 | Bolt | 2 шт. | — | |
|
| 14 | 2CR-27442-00-00 | Bracket 2 | 1 шт. | — | |
|
| 15 | 1KB-27451-00-00 | Footrest 3 | 1 шт. | — | |
|
| 16 | 90109-086F8-00 | Bolt | 1 шт. | — | |
|
| 17 | 90508-18134-00 | Spring, Torsion | 1 шт. | — | |
|
| 18 | 90240-08084-00 | Pin, Clevis | 1 шт. | — | |
|
| 19 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 20 | 2CR-27445-00-00 | Plate 1 | 1 шт. | — | |
|
| 21 | 90149-06233-00 | Screw | 2 шт. | — | |
|
| 22 | 90109-085G6-00 | Bolt | 2 шт. | — | |
|
| 23 | 2CR-27443-00-00 | Bracket 3 | 1 шт. | — | |
|
| 24 | 1KB-27461-00-00 | Footrest 4 | 1 шт. | — | |
|
| 25 | 90109-086F8-00 | Bolt | 1 шт. | — | |
|
| 26 | 90508-18135-00 | Spring, Torsion | 1 шт. | — | |
|
| 27 | 90240-08084-00 | Pin, Clevis | 1 шт. | — | |
|
| 28 | 91402-25015-00 | Pin, Cotter | 1 шт. | — | |
|
| 29 | 90201-08103-00 | Washer, Plate | 1 шт. | — | |
|
| 30 | 4C8-27434-00-00 | Bolt | 1 шт. | — | |
|
| 31 | 90109-085G6-00 | Bolt | 2 шт. | — | |
|
| 32 | 2CR-2148W-00-00 | Brkt.,3 | 1 шт. | — | |
|
| 33 | 5VY-14747-00-00 | Damper, Muffler | 1 шт. | — | |
|
| 34 | 90387-08021-00 | Collar | 1 шт. | — | |
|
| 35 | 92017-06014-00 | Bolt, Button Head | 1 шт. | — | |
|
| 36 | 92017-08016-00 | Bolt, Button Head | 1 шт. | — | |
|
| 37 | 5JJ-27431-10-00 | Footrest, Rear 1 | 1 шт. | — | |
|
| 38 | 2CR-2741L-00-00 | Bracket 4 | 1 шт. | — | |
|
| 39 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 40 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 41 | 5JJ-27437-01-00 | Washer, Special | 1 шт. | — | |
|
| 42 | 91312-06035-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 43 | 95602-06200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 44 | 90387-06697-00 | Collar | 1 шт. | — | |
|
| 45 | 5JJ-27441-10-00 | Footrest, Rear 2 | 1 шт. | — | |
|
| 46 | 2CR-2742L-00-00 | Bracket 5 | 0 шт. | — | |
|
| 47 | 90501-12743-00 | Spring, Compression | 1 шт. | — | |
|
| 48 | 93501-04011-00 | Ball | 1 шт. | — | |
|
| 49 | 5JJ-27437-01-00 | Washer, Special | 1 шт. | — | |
|
| 50 | 91312-06035-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 51 | 95602-06200-00 | Nut, Self-Locking | 1 шт. | — | |
|
| 52 | 90387-06697-00 | Collar | 1 шт. | — | |
|
| 53 | 90111-08066-00 | Bolt,Hex. Socket Button | 4 шт. | — | |
|
| 54 | 13S-27417-00-00 | Washer, Footrest | 4 шт. | — | |
|
