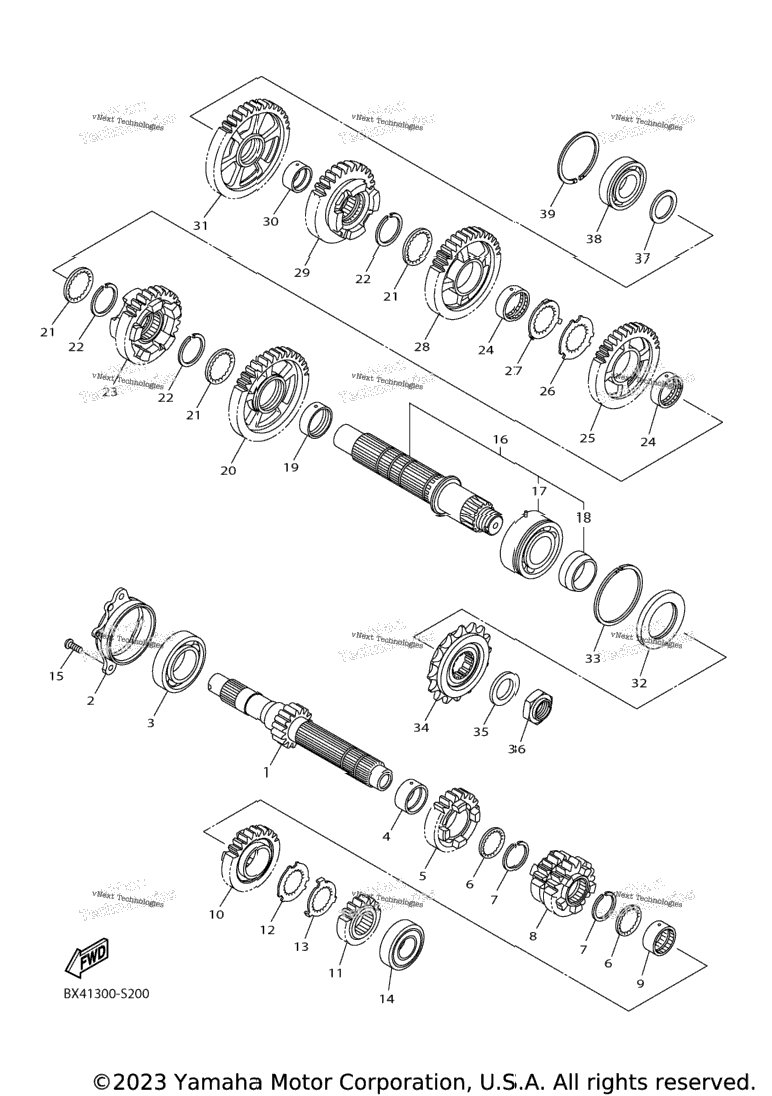

| 1 | 2CR-17411-00-00 | Axle, Main (15T) | 1 шт. | — | |
|
| 2 | 2CR-15163-00-00 | Housing, Bearing 1 | 1 шт. | — | |
|
| 3 | 93306-20652-00 | Bearing | 1 шт. | — | |
|
| 4 | 90387-28003-00 | Collar | 1 шт. | — | |
|
| 5 | 2CR-17151-00-00 | Gear, 5Th Pinion (21T) | 1 шт. | — | |
|
| 6 | 90209-25011-00 | Washer | 2 шт. | — | |
|
| 7 | 93440-28184-00 | Circlip | 2 шт. | — | |
|
| 8 | 2CR-17131-01-00 | Gear, 3Rd Pinion (19/19T) | 1 шт. | — | |
|
| 9 | 90387-25023-00 | Collar | 1 шт. | — | |
|
| 10 | 2CR-17161-00-00 | Gear, 6Th Pinion (24T) | 1 шт. | — | |
|
| 11 | BW8-17121-00-00 | Gear, 2Nd Pinion (17T) | 1 шт. | — | |
|
| 12 | 90214-25004-00 | Washer, Claw | 1 шт. | — | |
|
| 13 | 90214-25003-00 | Washer, Claw | 1 шт. | — | |
|
| 14 | 93306-27214-00 | Bearing | 1 шт. | — | |
|
| 15 | 90149-06082-00 | Screw | 3 шт. | — | |
|
| 16 | 2CR-17402-00-00 | Drive Axle Assy | 1 шт. | — | |
|
| 17 | 93305-20605-00 | . .Bearing | 1 шт. | — | |
|
| 18 | 90387-30012-00 | . Collar | 1 шт. | — | |
|
| 19 | 90387-31003-00 | Collar | 1 шт. | — | |
|
| 20 | BW8-17221-00-00 | Gear, 2Nd Wheel (37T) | 1 шт. | — | |
|
| 21 | 90209-28008-00 | Washer | 3 шт. | — | |
|
| 22 | 93440-31187-00 | Circlip | 3 шт. | — | |
|
| 23 | 2CR-17261-00-00 | Gear, 6Th Wheel (30T) | 1 шт. | — | |
|
| 24 | 90387-28004-00 | Collar | 2 шт. | — | |
|
| 25 | 2CR-17241-01-00 | Gear, 4Th Wheel (30T) | 1 шт. | — | |
|
| 26 | 90214-29002-00 | Washer, Claw | 1 шт. | — | |
|
| 27 | 90214-28002-00 | Washer, Claw | 1 шт. | — | |
|
| 28 | B67-17231-01-00 | Gear, 3Rd Wheel (35T) | 1 шт. | — | |
|
| 29 | 2CR-17251-00-00 | Gear, 5Th Wheel (29T) | 1 шт. | — | |
|
| 30 | 90387-25008-00 | Collar | 1 шт. | — | |
|
| 31 | B60-17211-00-00 | Gear, 1St Wheel (39T) | 1 шт. | — | |
|
| 32 | 93102-40330-00 | Oil Seal | 1 шт. | — | |
|
| 33 | 93440-62032-00 | .Circlip | 1 шт. | — | |
|
| 34 | 2CR-17460-00-00 | Sprocket, Drive (16T) | 1 шт. | — | |
|
| 35 | 90208-22002-00 | Washer, Conical Spring | 1 шт. | — | |
|
| 36 | 90179-22018-00 | Nut | 1 шт. | — | |
|
| 37 | 90201-257H0-00 | Washer, Plate | 1 шт. | — | |
|
| 38 | 93306-205A2-00 | Bearing | 1 шт. | — | |
|
| 39 | 93440-52009-00 | Circlip | 1 шт. | — | |
|
