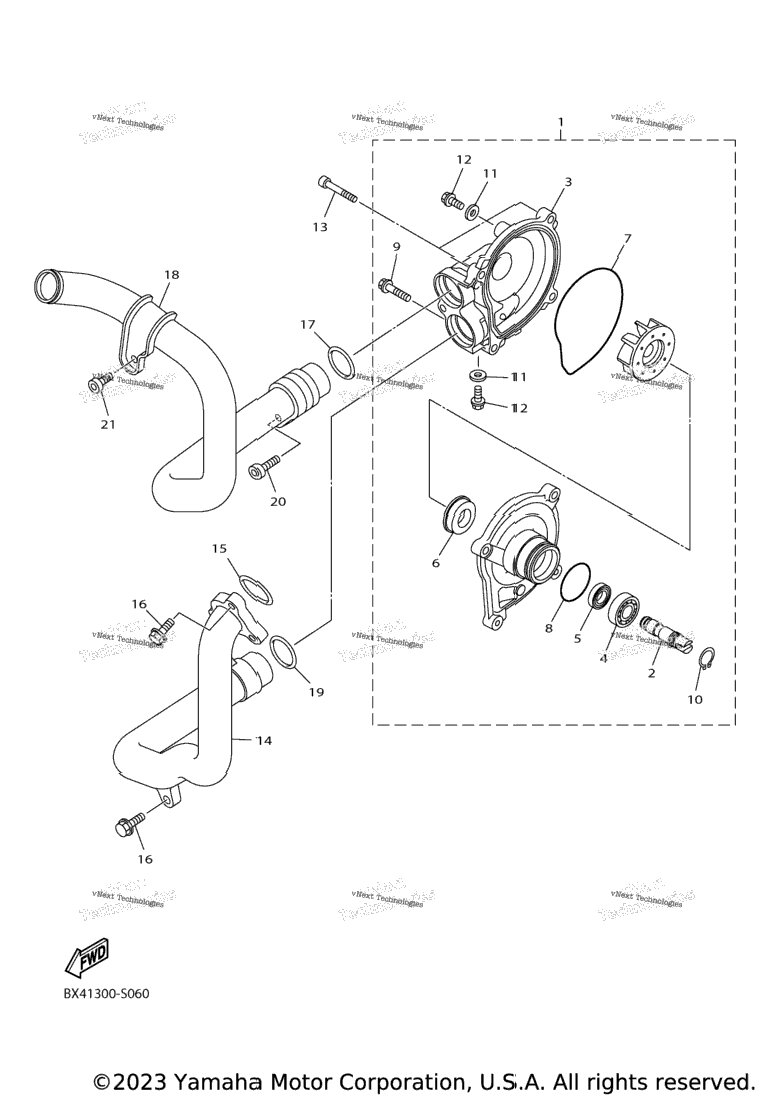

| 1 | B67-12420-00-00 | Water Pump Assy | 1 шт. | — | |
|
| 2 | 2CR-12450-01-00 | . .Impeller Shaft Assy | 1 шт. | — | |
|
| 3 | B67-12422-00-00 | . .Cover, Housing | 1 шт. | — | |
|
| 4 | 93306-00106-00 | . .Bearing | 1 шт. | — | |
|
| 5 | 2CR-13338-00-00 | . .Seal | 1 шт. | — | |
|
| 6 | 5VK-12438-00-00 | . .Seal, Mechanical | 1 шт. | — | |
|
| 7 | 4XV-12439-00-00 | . .O-Ring | 1 шт. | — | |
|
| 8 | 93210-33133-00 | . O-Ring | 1 шт. | — | |
|
| 9 | 95024-06025-00 | . Bolt, Flange (Small Head) | 2 шт. | — | |
|
| 10 | 99009-12400-00 | . .Circlip | 1 шт. | — | |
|
| 11 | 90430-06166-00 | . .Gasket | 2 шт. | — | |
|
| 12 | 95824-06010-00 | . Bolt, Flange | 2 шт. | — | |
|
| 13 | 91314-06035-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 14 | 2CR-12481-00-00 | Pipe 1 | 1 шт. | — | |
|
| 15 | 93210-27194-00 | O-Ring | 1 шт. | — | |
|
| 16 | 90105-06127-00 | Bolt, Flange | 4 шт. | — | |
|
| 17 | 93210-26006-00 | O-Ring | 1 шт. | — | |
|
| 18 | B67-12484-00-00 | Pipe 4 | 1 шт. | — | |
|
| 19 | 93210-26006-00 | O-Ring | 1 шт. | — | |
|
| 20 | 90110-06246-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
| 21 | 91312-06014-00 | Bolt, Hexagon Socket Head | 1 шт. | — | |
|
