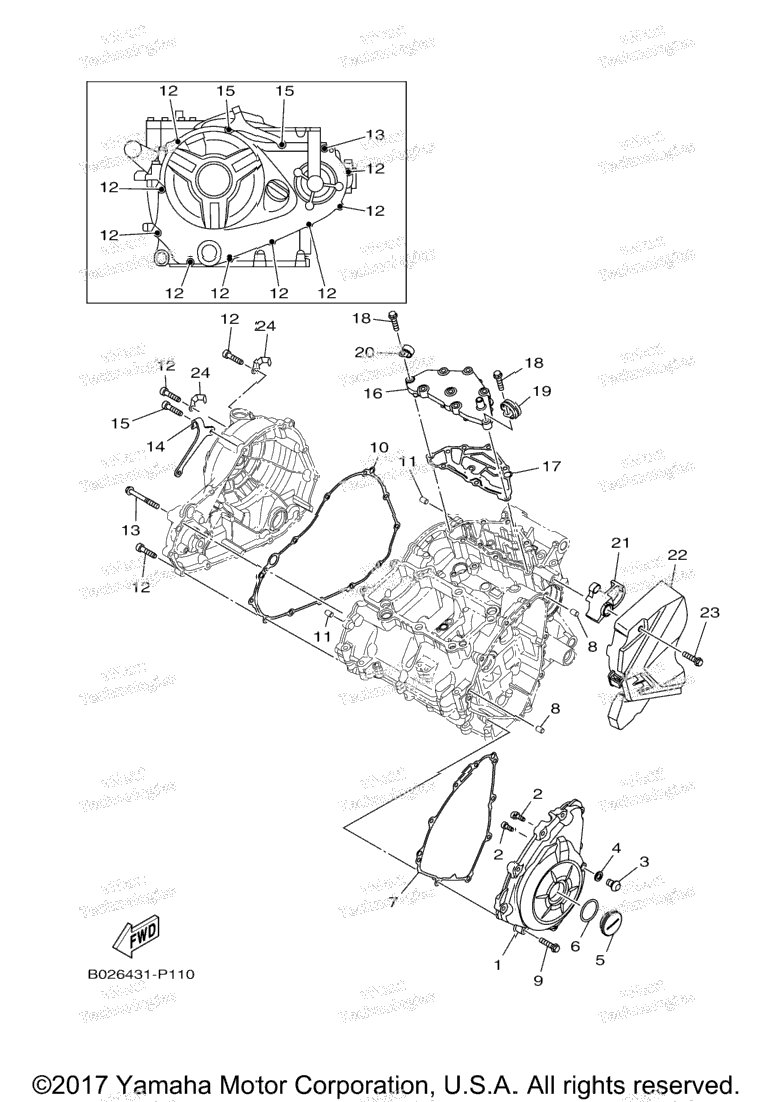

| 1 | 1WD-E5411-00-00 | Cover, Crankcase 1 | 1 шт. | — | |
|
| 2 | 91312-05012-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 3 | 92014-08012-00 | Bolt, Button Head | 1 шт. | — | |
|
| 4 | 90430-08143-00 | Gasket | 1 шт. | — | |
|
| 5 | 90340-32819-00 | Plug, Straight Screw | 1 шт. | — | |
|
| 6 | 93210-32816-00 | O-Ring | 1 шт. | — | |
|
| 7 | 1WD-E5451-00-00 | Gasket, Crankcase Cover 1 | 1 шт. | — | |
|
| 10 | 1WD-E5461-00-00 | Gasket, Crankcase Cover 2 INCL. IN CLUTCH KIT | 1 шт. | — | |
|
| 11 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 11 | 99530-08012-00 | Pin, Dowel | 2 шт. | — | |
|
| 13 | 95022-06050-00 | Bolt, Flange | 1 шт. | — | |
|
| 14 | 2MS-E5441-00-00 | Holder, Clutch Cable | 1 шт. | — | |
|
| 15 | 91312-06025-00 | Bolt, Hexagon Socket Head | 2 шт. | — | |
|
| 16 | 1WD-E5413-10-00 | Cover | 0 шт. | — | |
|
| 17 | 1WD-E5462-00-00 | Gasket, Crankcase Cover 3 | 1 шт. | — | |
|
| 19 | 90462-08812-00 | Clamp | 1 шт. | — | |
|
| 20 | 90462-08806-00 | Clamp | 1 шт. | — | |
|
| 21 | 1WD-E5377-00-00 | Guide, Inlet | 1 шт. | — | |
|
| 22 | 1WD-E5418-00-00 | Cover, Chain Case | 1 шт. | — | |
|
| 23 | 95022-06025-00 | Bolt, Flange | 8 шт. | — | |
|
| 23 | 95022-06025-00 | Bolt, Flange | 9 шт. | — | |
|
| 23 | 95022-06025-00 | Bolt, Flange | 2 шт. | — | |
|
| 23 | 95022-06025-00 | Bolt, Flange | 9 шт. | — | |
|
| 24 | 90462-08225-00 | Clamp | 2 шт. | — | |
|
