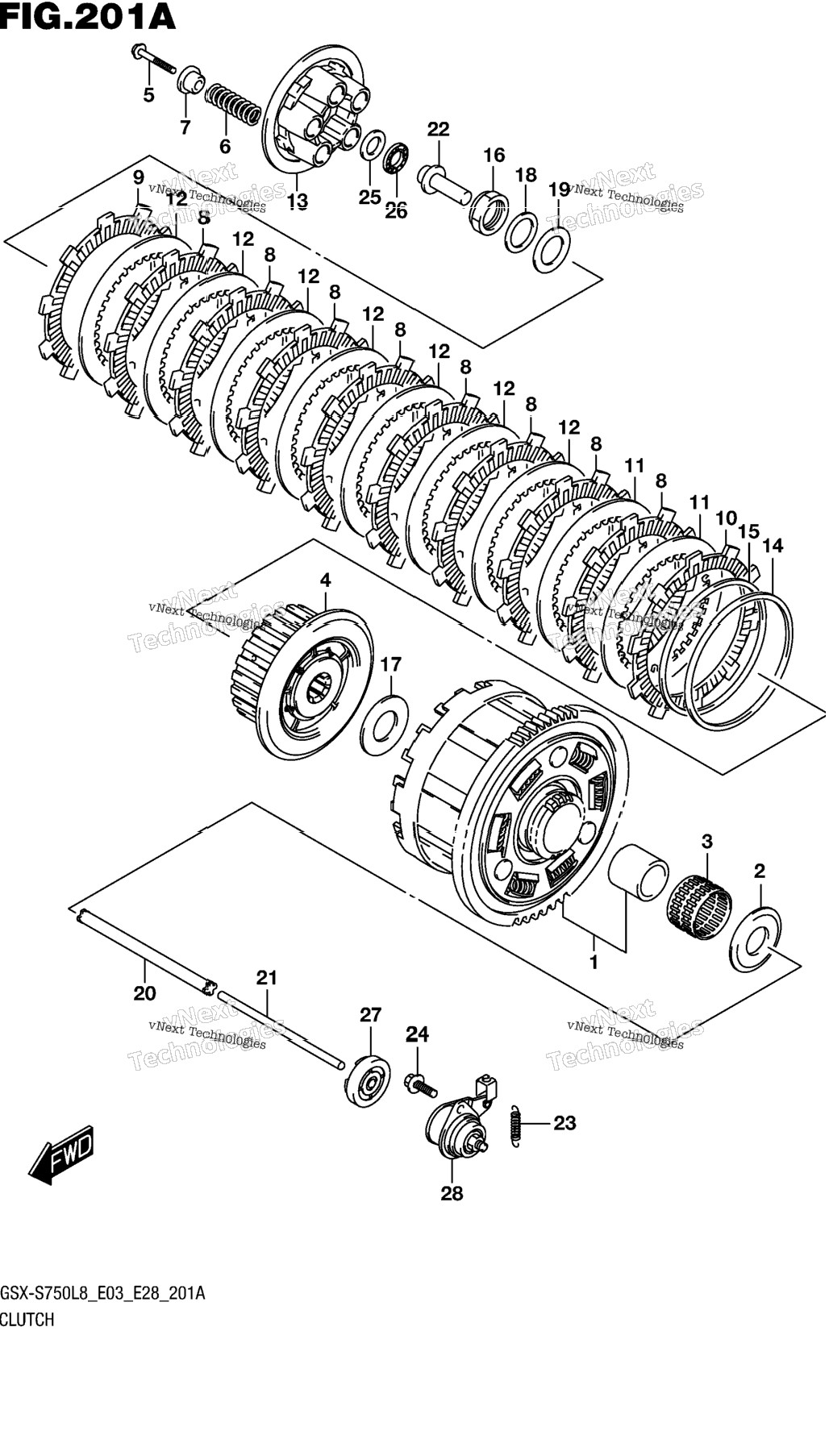

| 1 | 21200-35830 | GEAR ASSY, PRIMARY DRIVEN | 1 шт. | — | |
|
| 1 | 21200-35830 | (NT:78) | 0 шт. | — | |
|
| 2 | 09160-25073 | WASHER (25X54X2.4) | 1 шт. | — | |
|
| 3 | 09263-35036 | BEARING (35X40X29.8) | 1 шт. | — | |
|
| 4 | 21410-35F20 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21482-40F00 | BOLT,CLUTCH SPRING | 5 шт. | — | |
|
| 6 | 21413-08J00 | SPRING,CLUTCH | 5 шт. | — | |
|
| 7 | 21414-29F00 | WASHER, CLUTCH SPRING | 5 шт. | — | |
|
| 8 | 21441-31EA0 | PLATE, CLUTCH DRIVE NO.1 | 8 шт. | — | |
|
| 8 | 21441-31EA0 | (T:3.0) | 0 шт. | — | |
|
| 9 | 21441-31E60 | PLATE, CLUTCH DRIVE NO.2 | 1 шт. | — | |
|
| 9 | 21441-31E60 | (T:3.0) | 0 шт. | — | |
|
| 10 | 21442-31E21 | PLATE, CLUTCH DRIVE NO.3 | 1 шт. | — | |
|
| 10 | 21442-31E21 | (T:3.0) | 0 шт. | — | |
|
| 11 | 21451-31E00 | PLATE, CLUTCH DRIVEN NO.1 | 2 шт. | — | |
|
| 11 | 21451-31E00 | (T:1.6) | 0 шт. | — | |
|
| 12 | 21451-31E10 | PLATE, CLUTCH DRIVEN NO.2 | 7 шт. | — | |
|
| 12 | 21451-31E10 | (T:2.0) | 0 шт. | — | |
|
| 13 | 21462-35F00 | DISC, CLUTCH PRESSURE | 1 шт. | — | |
|
| 14 | 21471-31E20 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 15 | 21472-39F00 | WASHER,CLUTCH PLATE | 1 шт. | — | |
|
| 16 | 09159-24010 | NUT | 1 шт. | — | |
|
| 17 | 09160-25056 | WASHER (25X50X2.5) | 1 шт. | — | |
|
| 18 | 09164-24008 | WASHER | 1 шт. | — | |
|
| 19 | 09181-25223 | SHIM (25X38X1) | 1 шт. | — | |
|
| 20 | 23110-27A00 | ROD, CLUTCH | 1 шт. | — | |
|
| 21 | 23111-35F00 | ROD,CLUTCH PUSH,L | 1 шт. | — | |
|
| 22 | 23121-31E00 | PIECE, CLUTCH PUSH | 1 шт. | — | |
|
| 23 | 09443-09051 | SPRING | 1 шт. | — | |
|
| 24 | 01550-0616A | BOLT | 2 шт. | — | |
|
| 25 | 09160-15045 | WASHER (15.5X28X1) | 1 шт. | — | |
|
| 26 | 09263-15003 | BEARING (15X28X2) | 1 шт. | — | |
|
| 27 | 09283-06010 | OIL SEAL (6X34X10.5) | 1 шт. | — | |
|
| 28 | 23200-35F01 | SCREW ASSY, CLUTCH RELEASE | 1 шт. | — | |
|
