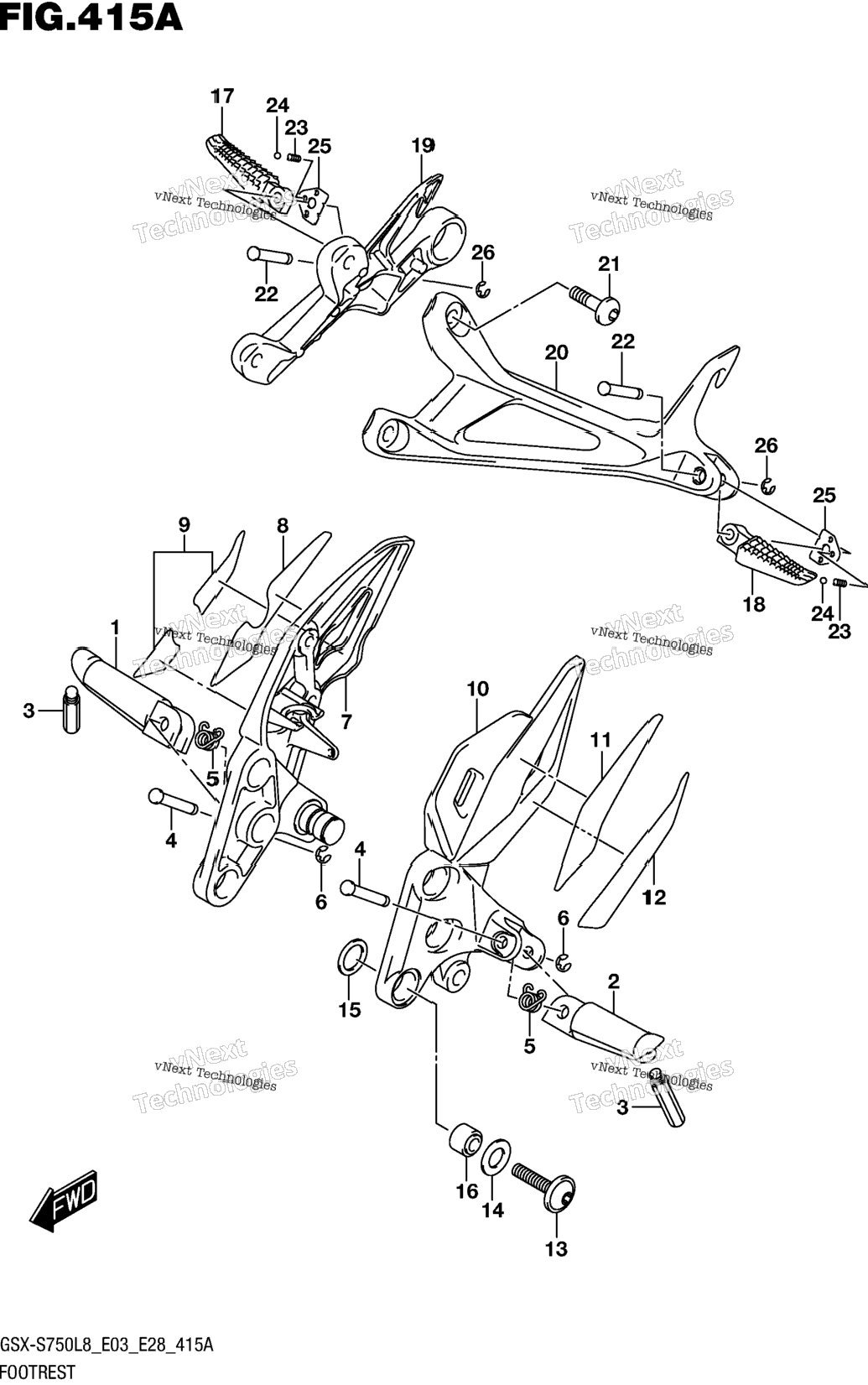

| 1 | 43516-35F20 | BAR,FRONT FOOTREST,R | 1 шт. | — | |
|
| 2 | 43526-35F20 | BAR,FRONT FOOTREST,L | 1 шт. | — | |
|
| 3 | 43576-48B60 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 4 | 09208-08019 | PIN | 2 шт. | — | |
|
| 5 | 43581-13K00 | SPRING, FRONT FOOTREST | 2 шт. | — | |
|
| 7 | 43510-08J10 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 8 | 43571-13K00 | TAPE, FR FOOTREST NO.1 RH | 1 шт. | — | |
|
| 9 | 43573-13K00 | TAPE, FR FOOTREST NO.2 RH | 1 шт. | — | |
|
| 10 | 43521-08J10 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 11 | 43572-13K00 | TAPE, FR FOOTREST NO.1 LH | 1 шт. | — | |
|
| 12 | 43574-13K00 | TAPE, FR FOOTREST NO.2 LH | 1 шт. | — | |
|
| 13 | 09106-08147 | BOLT (8X30) | 6 шт. | — | |
|
| 14 | 09161-13004 | WASHER (13.7X24X2) | 6 шт. | — | |
|
| 15 | 09161-17002 | WASHER (17.2X24X2.2) | 6 шт. | — | |
|
| 16 | 09319-08045 | BUSH (8.4X20X16) | 6 шт. | — | |
|
| 17 | 43611-37H30 | BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 18 | 43621-37H30 | BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 19 | 43811-08J00-YAP | (BLACK) | 0 шт. | — | |
|
| 19 | 43811-08J00-YAP | BRACKET, PILLION FOOTREST RH | 1 шт. | — | |
|
| 20 | 43821-08J00-YAP | (BLACK) | 0 шт. | — | |
|
| 20 | 43821-08J00-YAP | BRACKET, PILLION FOOTREST LH | 1 шт. | — | |
|
| 21 | 09106-08186 | BOLT (8X23) | 4 шт. | — | |
|
| 22 | 09208-08020 | PIN | 2 шт. | — | |
|
| 23 | 09440-05003 | SPRING | 2 шт. | — | |
|
| 24 | 06111-07004 | BALL | 2 шт. | — | |
|
| 25 | 43816-01H20 | PLATE,PILLION FOOTREST | 2 шт. | — | |
|
| 26 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 26 | 08332-1106A | E-RING | 2 шт. | — | |
|
