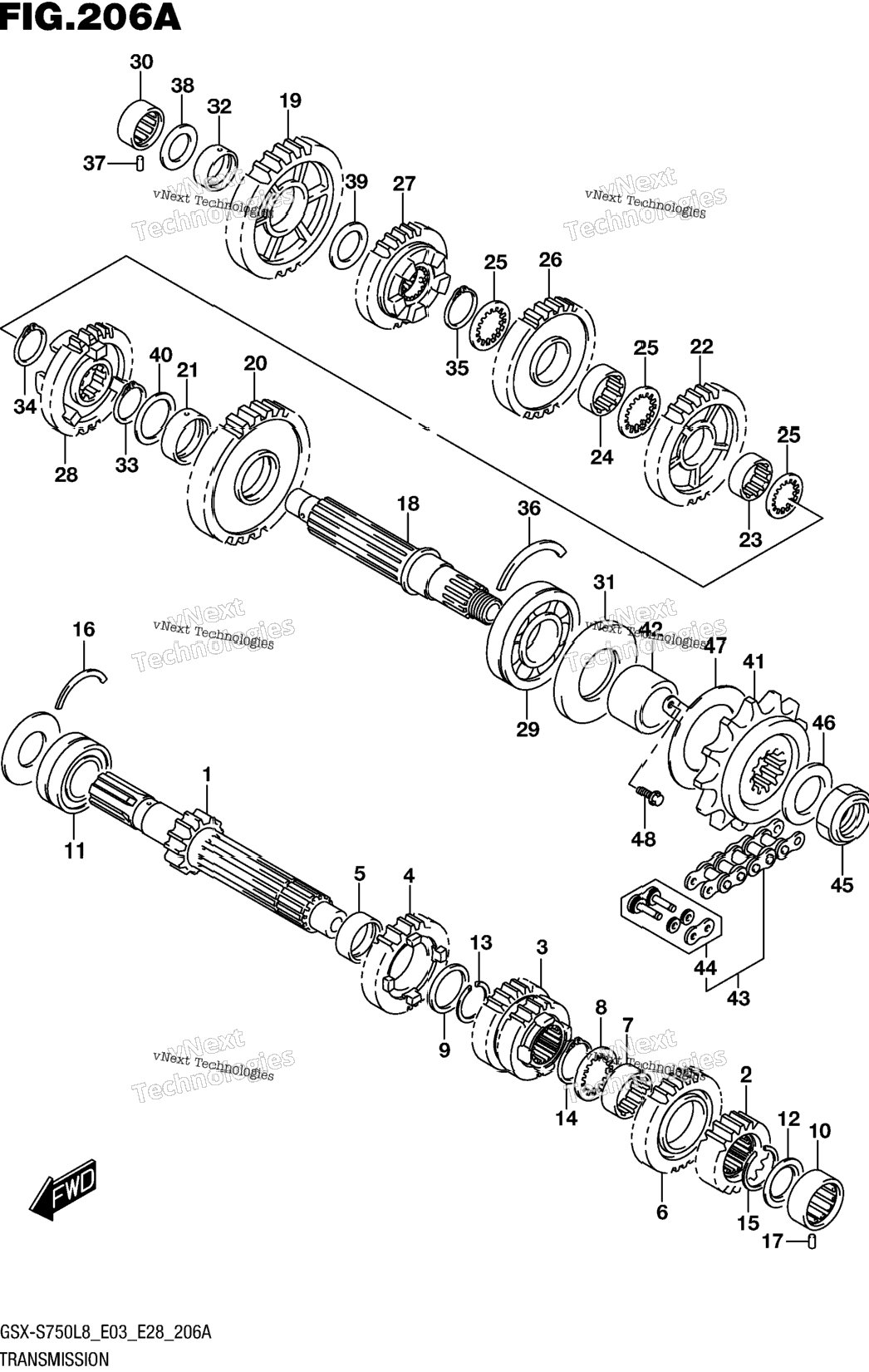

| 1 | 24120-35F30 | SHAFT, COUNTER (NT:14) | 0 шт. | — | |
|
| 2 | 24221-35F00 | GEAR,2ND DRIVE (NT:19) | 1 шт. | — | |
|
| 3 | 24231-35F01 | GEAR, 3RD & 4TH DRIVE | 1 шт. | — | |
|
| 4 | 24231-35F01 | (NT:20/22) | 0 шт. | — | |
|
| 5 | 24251-35F30 | GEAR, 5TH DRIVE (NT:23) | 1 шт. | — | |
|
| 6 | 24252-35F00 | BUSH 5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24261-35F30 | GEAR, 6TH DRIVE (NT:27) | 1 шт. | — | |
|
| 8 | 24262-35F10 | BUSH, 6TH DRIVE GEAR | 1 шт. | — | |
|
| 9 | 09167-27003 | LOCK WASHER (27X36X2.5) | 1 шт. | — | |
|
| 10 | 09181-27014 | SHIM (27X36X2.5) | 1 шт. | — | |
|
| 11 | 09263-20087 | BEARING (20X34X13.5) LH | 1 шт. | — | |
|
| 12 | 09267-25013 | BEARING (25X52X20.6) RH | 1 шт. | — | |
|
| 13 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 14 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 15 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 16 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 17 | 09390-58001 | C-RING RH | 1 шт. | — | |
|
| 18 | 09261-06003 | PIN (6X10) LH | 1 шт. | — | |
|
| 19 | 24131-35F30 | SHAFT, DRIVE | 0 шт. | — | |
|
| 20 | 24311-35F20 | GEAR,1ST DRIVEN (NT:39) | 1 шт. | — | |
|
| 21 | 24321-35F11 | GEAR,2ND DRIVEN (NT:39) | 1 шт. | — | |
|
| 22 | 24322-35F00 | BUSH, 2ND DRIVEN GEAR | 1 шт. | — | |
|
| 23 | 24331-35F10 | GEAR,3RD DRIVEN (NT:37) | 1 шт. | — | |
|
| 24 | 24332-35F00 | BUSH, 3RD DRIVEN GEAR | 1 шт. | — | |
|
| 25 | 24332-35F00 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 26 | 24333-02F00 | WASHER, 3RD & 4TH DRIVEN GEAR | 3 шт. | — | |
|
| 27 | 24341-35F10 | GEAR,4TH DRIVEN (NT:29) | 1 шт. | — | |
|
| 28 | 24351-35F10 | GEAR,5TH DRIVEN (NT:30) | 1 шт. | — | |
|
| 29 | 24361-35F30 | GEAR, 6TH DRIVEN (NT:31) | 1 шт. | — | |
|
| 30 | 09262-28025 | BEARING (28X70X18) LH | 1 шт. | — | |
|
| 31 | 09263-20087 | BEARING (20X34X13.5) RH | 1 шт. | — | |
|
| 32 | 09283-36008 | OIL SEAL (34.8X70X6) | 1 шт. | — | |
|
| 33 | 09300-22008 | BUSH (22X26X9) | 1 шт. | — | |
|
| 34 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 35 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 36 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 37 | 09390-70001 | C-RING (67.6X75X2) LH | 1 шт. | — | |
|
| 38 | 09261-06003 | PIN (6X10) RH | 1 шт. | — | |
|
| 39 | 09181-20251 | SHIM (20X34X1) | 1 шт. | — | |
|
| 40 | 09181-22223 | SHIM (22X34X1) | 1 шт. | — | |
|
| 41 | 09160-27008 | WASHER (27X36X1) | 1 шт. | — | |
|
| 42 | 27510-20A20 | SPROCKET, ENGINE (NT:17) | 1 шт. | — | |
|
| 43 | 27531-35F01 | SPACER,ENGINE SPROCKET | 1 шт. | — | |
|
| 44 | 27600-06G40-114 | CHAIN ASSY (RK 525SMOZ8) | 1 шт. | — | |
|
| 45 | 27620-06G40 | .JOINT SET, CHAIN | 1 шт. | — | |
|
| 46 | 09159-20004 | NUT | 1 шт. | — | |
|
| 47 | 09160-25009 | WASHER (25X41X3) | 1 шт. | — | |
|
| 48 | 24751-04K00 | RETAINER, DRIVE SHAFT OIL SEA | 1 шт. | — | |
|
| 49 | 09103-06236 | BOLT (6X12) | 2 шт. | — | |
|
