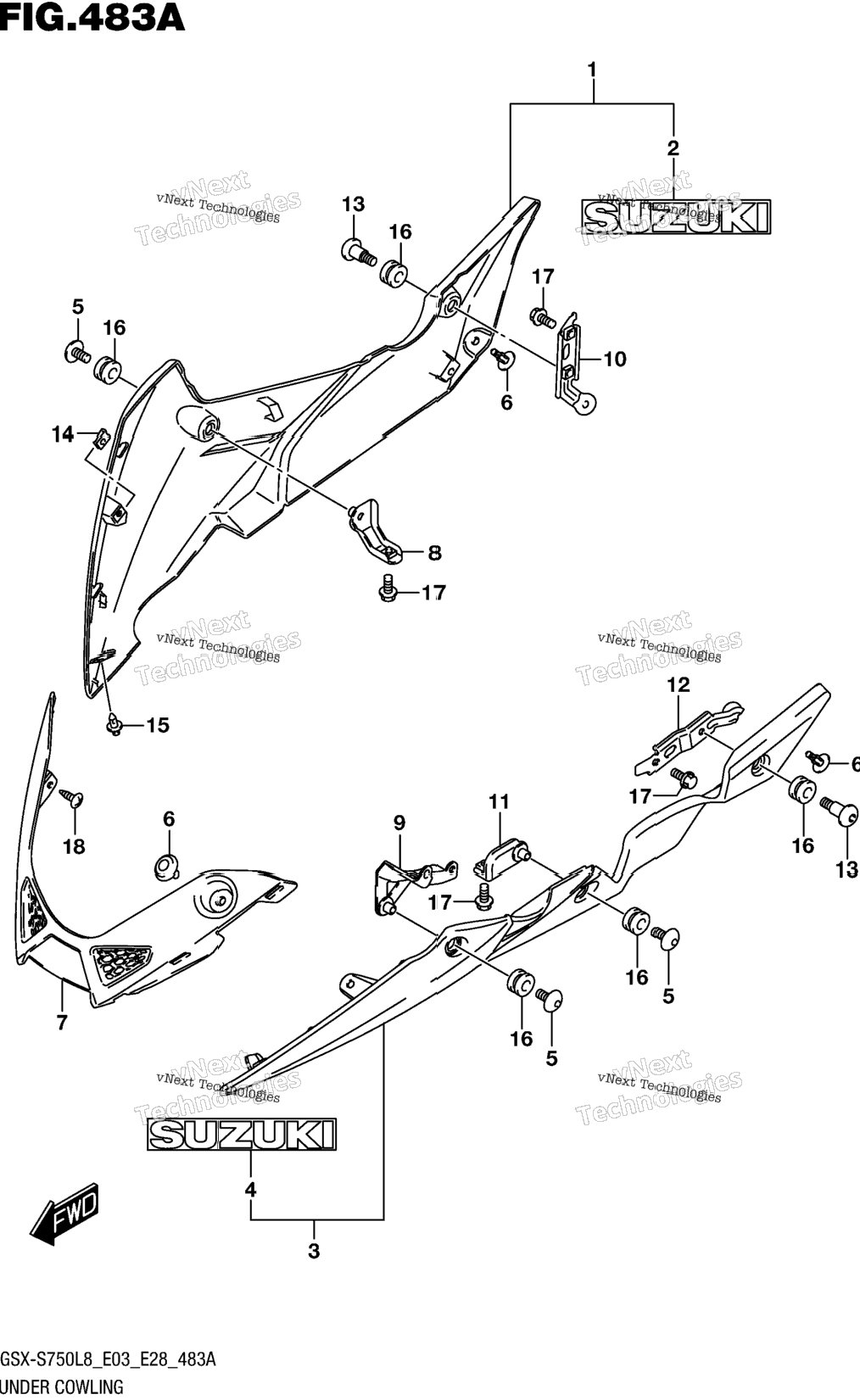

| 1 | 94470-13K00-YVZ | COWLING, UNDER RH (RED) FOR YVZ | 1 шт. | — | |
|
| 2 | 94470-13K00-YSF | COWLING, UNDER RH (BLUE) FOR KEL | 1 шт. | — | |
|
| 3 | 94470-13K00-YKV | COWLING, UNDER RH (BLACK) FOR YKV | 1 шт. | — | |
|
| 4 | 68111-47C10-YES | .EMBLEM, "SUZUKI" (SILVER) FOR YVZ,YSF | 1 шт. | — | |
|
| 5 | 68111-47C10-YUL | .EMBLEM, "SUZUKI" (RED) FOR YKV | 1 шт. | — | |
|
| 6 | 94480-13K00-YVZ | COWLING, UNDER LH (RED) FOR YVZ | 1 шт. | — | |
|
| 7 | 94480-13K00-YSF | COWLING, UNDER LH (BLUE) FOR KEL | 0 шт. | — | |
|
| 8 | 94480-13K00-YKV | COWLING, UNDER LH (BLACK) FOR YKV | 1 шт. | — | |
|
| 9 | 68111-47C10-YES | .EMBLEM, "SUZUKI" (SILVER) FOR YVZ,YSF | 1 шт. | — | |
|
| 10 | 68111-47C10-YUL | .EMBLEM, "SUZUKI" (RED) FOR YKV | 1 шт. | — | |
|
| 11 | 09106-06136 | BOLT (6X12) | 3 шт. | — | |
|
| 12 | 94479-35F00 | CLIP | 3 шт. | — | |
|
| 13 | 94491-13K00 | COWLING,UNDER CTR | 1 шт. | — | |
|
| 14 | 94510-13K00 | BRACKET, UNDER COWL NO.1 RH | 1 шт. | — | |
|
| 15 | 94520-13K00 | BRACKET,UNDER COWL NO.1 LH | 1 шт. | — | |
|
| 16 | 94530-08J00 | BRACKET,UNDER COWL RR RH | 1 шт. | — | |
|
| 17 | 94530-13K00 | BRACKET,UNDER COWL NO.2 LH | 1 шт. | — | |
|
| 18 | 94540-08J00 | BRACKET,UNDER COWL RR LH | 1 шт. | — | |
|
| 19 | 09139-06190 | SCREW (6X20) | 2 шт. | — | |
|
| 20 | 09148-05038 | NUT | 1 шт. | — | |
|
| 21 | 09409-06314-5PK | CLIP (BLACK) | 2 шт. | — | |
|
| 22 | 09320-09016 | CUSHION (9X18X9.5) | 5 шт. | — | |
|
| 23 | 01550-0612A | BOLT | 4 шт. | — | |
|
| 24 | 03541-0516B | SCREW | 1 шт. | — | |
|
| 25 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
| 26 | SPECIAL NOTE | KEL=YSF(BLUE),YVB(BLACK) | 0 шт. | — | |
|
