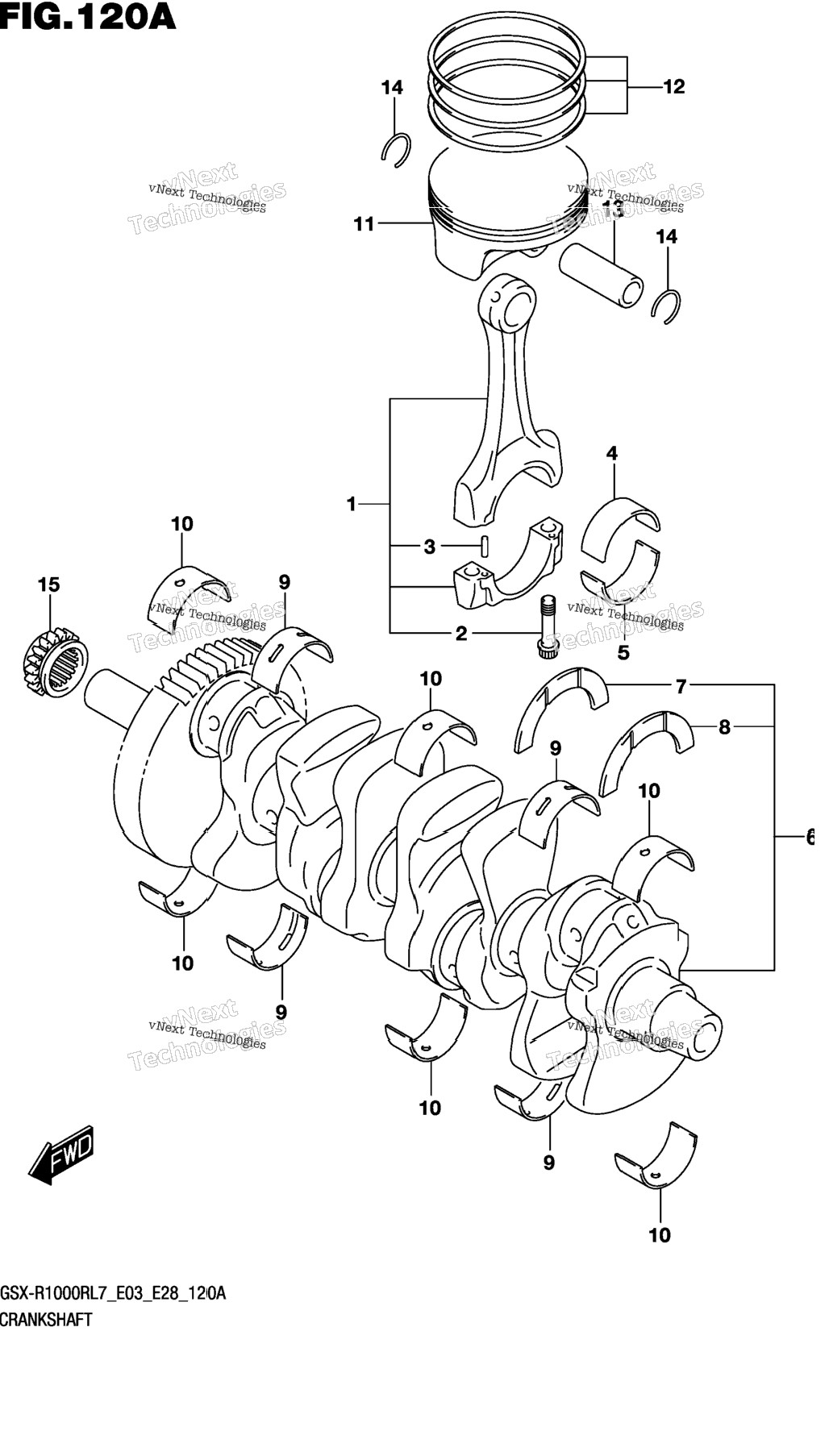

| 1 | 12160-17K00 | CONNROD ASSY | 4 шт. | — | |
|
| 2 | 12163-17K00 | .BOLT,CONNROD | 8 шт. | — | |
|
| 3 | 04221-03059 | .PIN | 8 шт. | — | |
|
| 4-1 | 12164-17K00-0A0 | BEARING, CRANK PIN UPPER | 4 шт. | — | |
|
| 4-1 | 12164-17K00-0A0 | (GREEN) | 0 шт. | — | |
|
| 4-2 | 12164-17K00-0B0 | BEARING, CRANK PIN UPPER | 4 шт. | — | |
|
| 4-2 | 12164-17K00-0B0 | (BLACK) | 0 шт. | — | |
|
| 4-3 | 12164-17K00-0C0 | BEARING, CRANK PIN UPPER | 4 шт. | — | |
|
| 4-3 | 12164-17K00-0C0 | (BROWN) | 0 шт. | — | |
|
| 4-4 | 12164-17K00-0D0 | BEARING, CRANK PIN UPPER | 4 шт. | — | |
|
| 4-4 | 12164-17K00-0D0 | (YELLOW) | 0 шт. | — | |
|
| 5-1 | 12164-17K10-0A0 | BEARING, CRANK PIN LOWER | 4 шт. | — | |
|
| 5-1 | 12164-17K10-0A0 | (GREEN) | 0 шт. | — | |
|
| 5-2 | 12164-17K10-0B0 | BEARING, CRANK PIN LOWER | 4 шт. | — | |
|
| 5-2 | 12164-17K10-0B0 | (BLACK) | 0 шт. | — | |
|
| 5-3 | 12164-17K10-0C0 | BEARING, CRANK PIN LOWER | 4 шт. | — | |
|
| 5-3 | 12164-17K10-0C0 | (BROWN) | 0 шт. | — | |
|
| 5-4 | 12164-17K10-0D0 | BEARING, CRANK PIN LOWER | 4 шт. | — | |
|
| 5-4 | 12164-17K10-0D0 | (YELLOW) | 0 шт. | — | |
|
| 6 | 12000-17860 | CRANKSHAFT SET | 1 шт. | — | |
|
| 8-1 | 12228-48B00-0B0 | .BEARING, THRUST LH (BROWN) | 1 шт. | — | |
|
| 8-2 | 12228-48B00-0C0 | .BEARING, THRUST LH (RED) | 1 шт. | — | |
|
| 8-3 | 12228-48B00-0D0 | .BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 8-4 | 12228-48B00-0E0 | .BEARING, THRUST LH (GREEN) | 1 шт. | — | |
|
| 8-4 | 12228-48B00-0E0 | .BEARING, THRUST RH (GREEN) | 1 шт. | — | |
|
| 8-5 | 12228-48B00-0F0 | .BEARING, THRUST LH (BLUE) | 1 шт. | — | |
|
| 8-6 | 12228-48B00-0G0 | .BEARING, THRUST LH (ORANGE) | 1 шт. | — | |
|
| 8-7 | 12228-48B00-0H0 | .BEARING, THRUST LH (BLACK) | 1 шт. | — | |
|
| 9-1 | 12229-17K00-0A0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 9-2 | 12229-17K00-0B0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 9-3 | 12229-17K00-0C0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 9-4 | 12229-17K00-0D0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 9-5 | 12229-17K00-0E0 | BEARING,CRANKSHAFT | 4 шт. | — | |
|
| 10-1 | 12229-17K10-0A0 | BEARING,CRANKSHAFT | 6 шт. | — | |
|
| 10-2 | 12229-17K10-0B0 | BEARING,CRANKSHAFT | 6 шт. | — | |
|
| 10-3 | 12229-17K10-0C0 | BEARING,CRANKSHAFT | 6 шт. | — | |
|
| 10-4 | 12229-17K10-0D0 | BEARING,CRANKSHAFT | 6 шт. | — | |
|
| 10-5 | 12229-17K10-0E0 | BEARING,CRANKSHAFT | 6 шт. | — | |
|
| 11 | 12111-17K00-0F0 | PISTON | 4 шт. | — | |
|
| 12 | 12140-17K00 | RING SET,PISTON | 4 шт. | — | |
|
| 13 | 12151-17K00 | PIN,PISTON | 4 шт. | — | |
|
| 14 | 12152-17K00 | CIRCLIP | 8 шт. | — | |
|
| 15 | 12731-47H00 | SPROCKET, CAM CHAIN (NT:17) | 1 шт. | — | |
|
