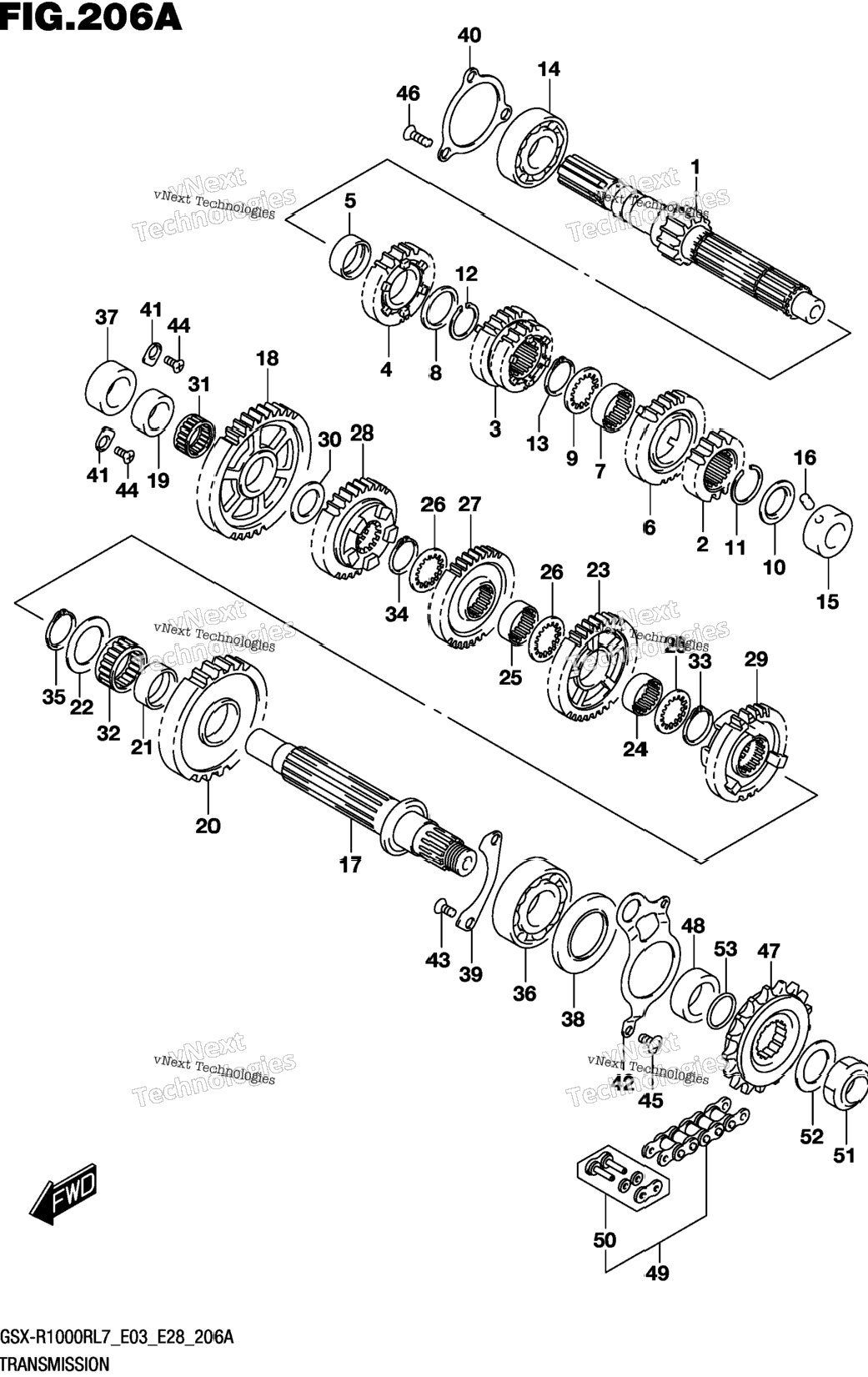

| 1 | 24120-17K00 | SHAFT, CNTR (NT:16) | 1 шт. | — | |
|
| 2 | 24221-40F30 | GEAR,2ND DRIVE (NT:19) | 1 шт. | — | |
|
| 3 | 24231-47H10 | GEAR, 3RD & 4TH DRIVE | 1 шт. | — | |
|
| 4 | 24231-47H10 | (NT:21/24) | 0 шт. | — | |
|
| 5 | 24251-47H20 | GEAR,5TH DRIVE (NT:25) | 1 шт. | — | |
|
| 6 | 24252-24F20 | BUSH,5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24261-47H20 | GEAR,6TH DRIVE (NT:26) | 1 шт. | — | |
|
| 8 | 24262-24F20 | BUSH,6TH DRIVE GEAR | 1 шт. | — | |
|
| 9 | 09160-27008 | WASHER (27X36X1) | 1 шт. | — | |
|
| 10 | 09167-27001 | WASHER,LOCK (27X36X1) | 1 шт. | — | |
|
| 11 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 12 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 13 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 14 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 15 | 09262-25001 | BEARING RH | 1 шт. | — | |
|
| 16 | 09263-20114 | BEARING LH | 1 шт. | — | |
|
| 17 | 04221-07129 | PIN | 1 шт. | — | |
|
| 18 | 24131-17K00 | SHAFT,DRIVE | 1 шт. | — | |
|
| 19 | 24311-47H00 | GEAR,1ST DRIVEN (NT:41) | 1 шт. | — | |
|
| 20 | 24315-17K00 | SPACER, IST DRIVEN GEAR | 1 шт. | — | |
|
| 21 | 24321-17K00 | GEAR,2ND DRIVEN (NT:39) | 1 шт. | — | |
|
| 22 | 24322-17K00 | BUSH,2ND DRIVEN GEAR | 1 шт. | — | |
|
| 23 | 24323-17K00 | WASHER,2ND DRIVEN GEAR | 1 шт. | — | |
|
| 24 | 24331-47H20 | GEAR,3RD DRIVEN (NT:36) | 1 шт. | — | |
|
| 25 | 24332-24F20 | BUSH, 3RD DRIVEN GEAR | 1 шт. | — | |
|
| 26 | 24332-24F20 | BUSH, 4TH DRIVEN GEAR | 1 шт. | — | |
|
| 27 | 24333-47H00 | WASHER, 3RD & 4TH DRIVEN | 3 шт. | — | |
|
| 28 | 24341-47H10 | GEAR,4TH DRIVEN (NT:36) | 1 шт. | — | |
|
| 29 | 24351-47H00 | GEAR,5TH DRIVEN (NT:34) | 1 шт. | — | |
|
| 30 | 24361-17K00 | GEAR,6TH DRIVEN (NT:33) | 1 шт. | — | |
|
| 31 | 09181-24005 | SHIM (24X34X1) | 1 шт. | — | |
|
| 32 | 09263-24030 | BEARING (24X28X13) | 1 шт. | — | |
|
| 33 | 09263-35045 | BEARING (35X40X12) | 1 шт. | — | |
|
| 34 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 35 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 36 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 37 | 09262-30001 | BEARING LH | 1 шт. | — | |
|
| 38 | 09263-22074 | BEARING RH | 1 шт. | — | |
|
| 39 | 09283-40043 | OIL SEAL | 1 шт. | — | |
|
| 40 | 24741-06G00 | RETAINER, DRIVE SHAFT BEARING | 1 шт. | — | |
|
| 41 | 24741-17K00 | RETAINER,COUNTER SHAFT BRG | 1 шт. | — | |
|
| 42 | 24741-20A00 | RETAINER | 2 шт. | — | |
|
| 43 | 24751-17K00 | RETAINER,CL PUSH ROD OIL SEAL | 1 шт. | — | |
|
| 44 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 45 | 09126-06011 | SCREW (6X12) | 2 шт. | — | |
|
| 46 | 09139-06153 | SCREW (6X13) | 2 шт. | — | |
|
| 47 | 09139-06159 | SCREW (6X20) | 3 шт. | — | |
|
| 48 | 27510-17K00 | SPROCKET,ENGINE (NT:17) | 1 шт. | — | |
|
| 49 | 27531-17K00 | SPACER,ENGINE SPROCKET | 1 шт. | — | |
|
| 50 | 27600-17K00-120 | CHAIN ASSY,DRIVE (DID525HV3) | 1 шт. | — | |
|
| 51 | 27620-17K00 | .JOINT SET (DID525HV3) | 1 шт. | — | |
|
| 52 | 09159-22008 | NUT | 1 шт. | — | |
|
| 53 | 09181-27016 | SHIM (27X42X1.5) | 1 шт. | — | |
|
| 54 | 09280-26005 | O RING (D:2.4,ID:26.2) | 1 шт. | — | |
|
