Front Wheel (Gsx-R750:(E03,E28,E33))

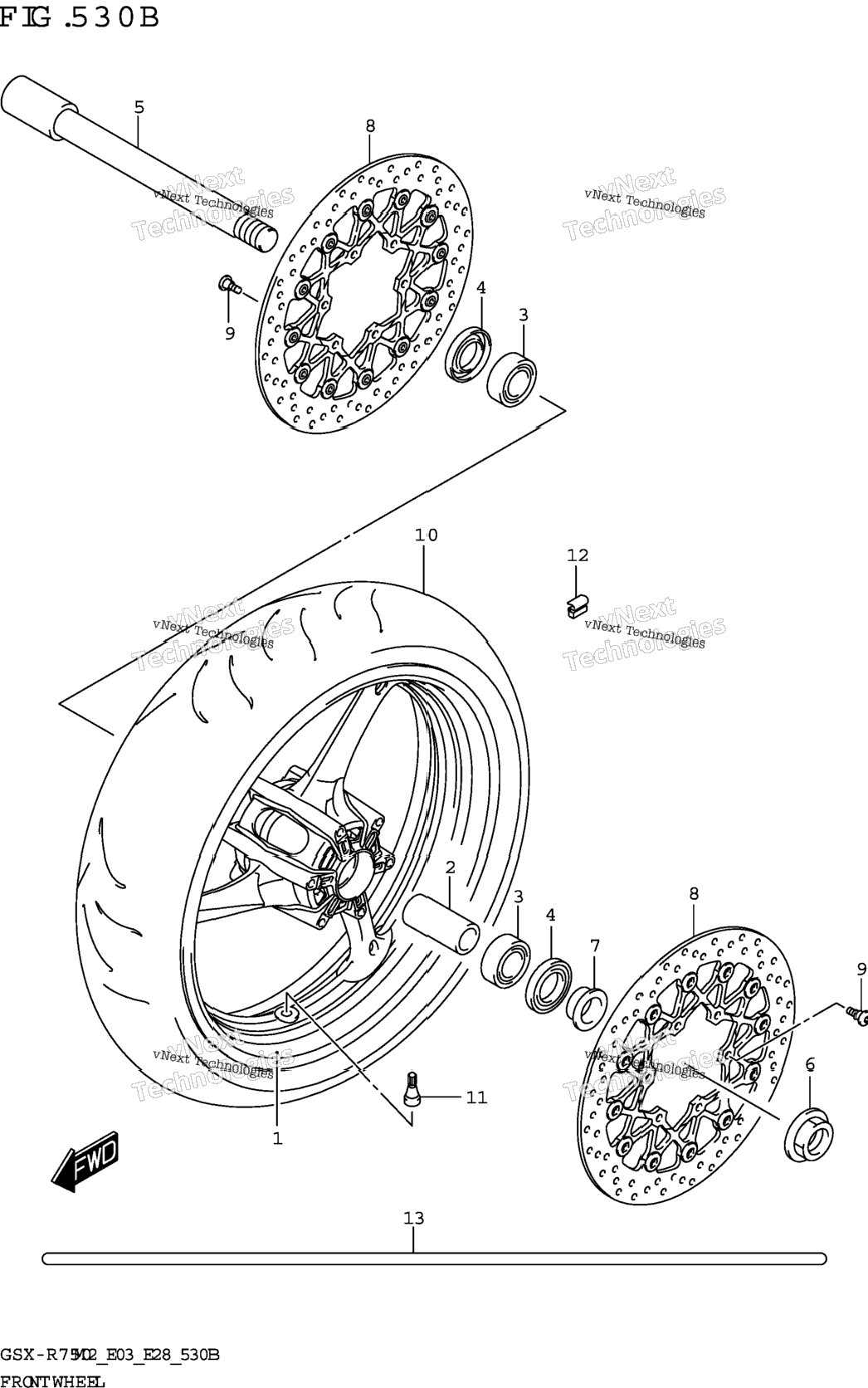

Схема Front Wheel (Gsx-R750:(E03,E28,E33))
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 54111-14J00-019 | WHEEL,FRONT (17M/CXMT3.50,BLA | 1 шт. | — | |
| 2 | 54731-14J00 | SPACER,FR HUB BEARING | 1 шт. | — | |
| 3 | 09262-22049 | BEARING | 2 шт. | — | |
| 4 | 09283-28028 | SEAL,OIL | 2 шт. | — | |
| 5 | 54711-14J00 | AXLE,FR | 1 шт. | — | |
| 6 | 62994-47H00 | NUT,RR SHOCK ABS BRACKET | 1 шт. | — | |
| 7 | 54751-14J00 | SPACER,FR AXLE,L | 1 шт. | — | |
| 8 | 59210-37H01 | DISC,FRONT BRAKE | 2 шт. | — | |
| 9 | 09106-06124 | BOLT (6X21) | 12 шт. | — | |
| 10 | 55110-15J00 | TIRE,FRONT (120/70ZR17M/C, 58 ) | 1 шт. | — | |
| 11 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
| 12-1 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
| 12-2 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
| 12-3 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
| 13-1 | 68251-14J10-B86 | TAPE,WHEEL (ORANGE,BLACK) | 2 шт. | — | |
| 13-2 | 68251-14J10-GY8 | TAPE,WHEEL (YELLOW/BLACK) | 2 шт. | — | |
