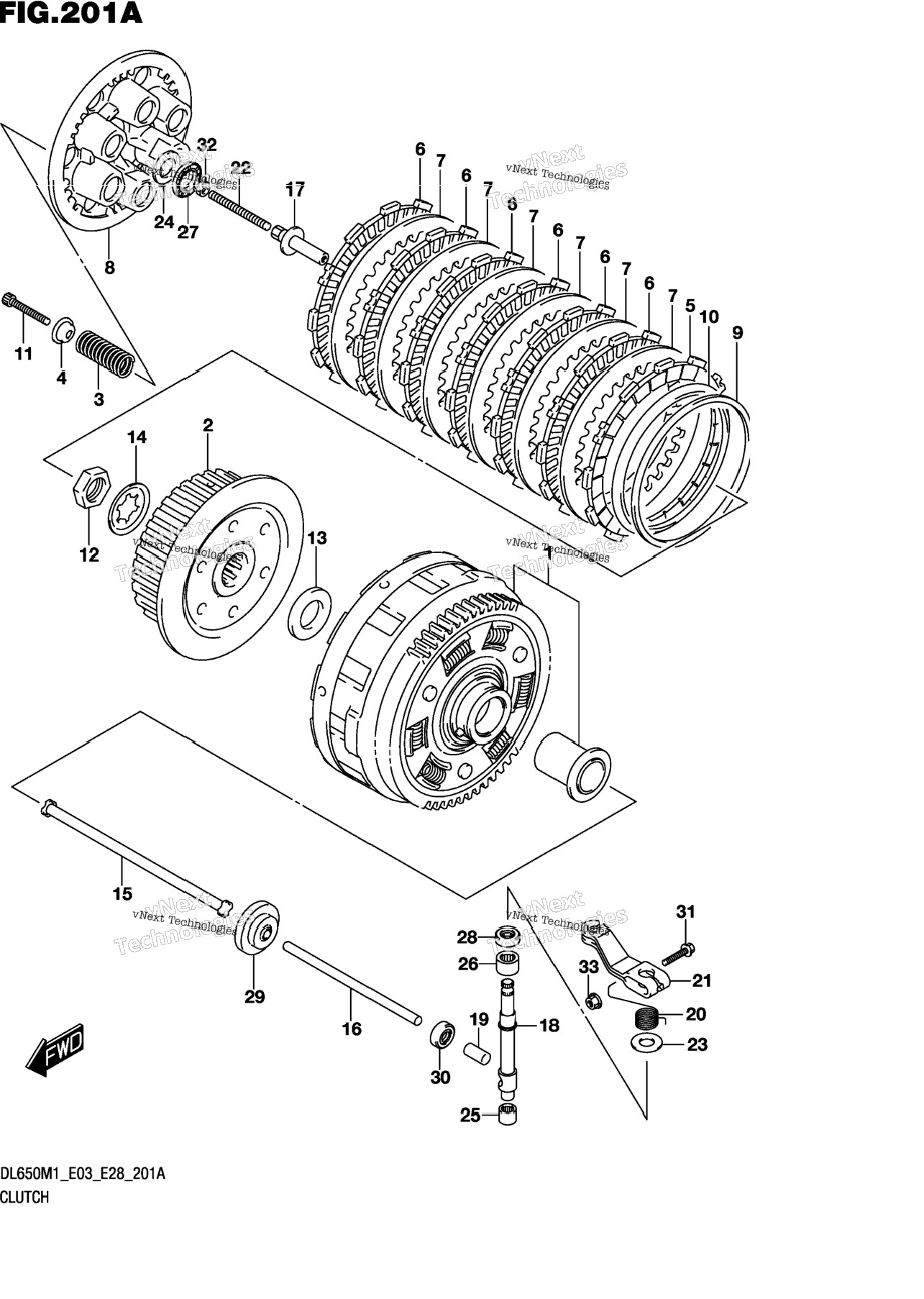

| 1 | 21200-44860-000 | GEAR ASSY,PRIMARY DRIVEN (NT: 1) | 0 шт. | — | |
|
| 2 | 21411-44101-000 | HUB,CLUTCH SLEEVE | 0 шт. | — | |
|
| 3 | 21413-17G10-000 | SPRING,CLUTCH | 0 шт. | — | |
|
| 4 | 21414-29F00-000 | WASHER | 0 шт. | — | |
|
| 5 | 21442-29F10-000 | PLATE,CLUTCH DRIVE NO.2 (T:3. ) | 0 шт. | — | |
|
| 6 | 21441-29F30-000 | PLATE,CLUTCH DRIVE (T:3.0) | 0 шт. | — | |
|
| 7 | 21451-28C31-000 | PLATE,CLUTCH DRIVEN (T:1.6) | 0 шт. | — | |
|
| 8 | 21462-14301-000 | DISC,CLUTCH PRESSURE | 0 шт. | — | |
|
| 9 | 21471-17G00-000 | SEAT,WAVE WASHER | 0 шт. | — | |
|
| 10 | 21472-17G00-000 | WASHER,CLUTCH PLATE WAVE | 0 шт. | — | |
|
| 11 | 21482-41G10-000 | BOLT,CLUTCH SPRING | 0 шт. | — | |
|
| 12 | 09140-20001-000 | NUT | 0 шт. | — | |
|
| 13 | 09160-20067-000 | WASHER (20X36X3) | 0 шт. | — | |
|
| 14 | 09167-20006-000 | WASHER,LOCK | 0 шт. | — | |
|
| 15 | 23110-44111-000 | ROD,PUSH RH | 0 шт. | — | |
|
| 16 | 23111-15501-000 | ROD,CLUTCH PUSH LH | 0 шт. | — | |
|
| 17 | 23121-44H00-000 | PIECE,CLUTCH PUSH | 0 шт. | — | |
|
| 18 | 23122-44H00-000 | CAMSHAFT,CLUTCH RELEASE | 0 шт. | — | |
|
| 19 | 23123-41G00-000 | CAP,CLUTCH PUSH ROD | 0 шт. | — | |
|
| 20 | 23125-11J00-000 | SPRING,CLUTCH RELEASE RETURN | 0 шт. | — | |
|
| 21 | 23271-44H21-000 | ARM,CLUTCH RELEASE | 0 шт. | — | |
|
| 22 | 09134-06015-000 | SCREW (6X73) | 0 шт. | — | |
|
| 23 | 09160-10020-000 | WASHER,10.5X24X1 (10.5X24X1.0 | 0 шт. | — | |
|
| 24 | 09160-15045-000 | WASHER (15.5X28X1) | 0 шт. | — | |
|
| 25 | 09263-10014-000 | BEARING (10X14X10) | 0 шт. | — | |
|
| 26 | 09263-12027-000 | BEARING (12X18X12) | 0 шт. | — | |
|
| 27 | 09263-15003-000 | BEARING (15X28X2) | 0 шт. | — | |
|
| 28 | 09282-10012-000 | SEAL,OIL (10X20X6) | 0 шт. | — | |
|
| 29 | 09283-06008-000 | OIL SEAL (6X34X10.5) | 0 шт. | — | |
|
| 30 | 09285-10004-000 | OIL SEAL (10X17X5) | 0 шт. | — | |
|
| 31 | 01550-0625A-000 | BOLT (6X25) | 0 шт. | — | |
|
| 32 | 08310-0006A-000 | NUT | 0 шт. | — | |
|
| 33 | 08316-1006A-000 | NUT (6X12) | 0 шт. | — | |
|
