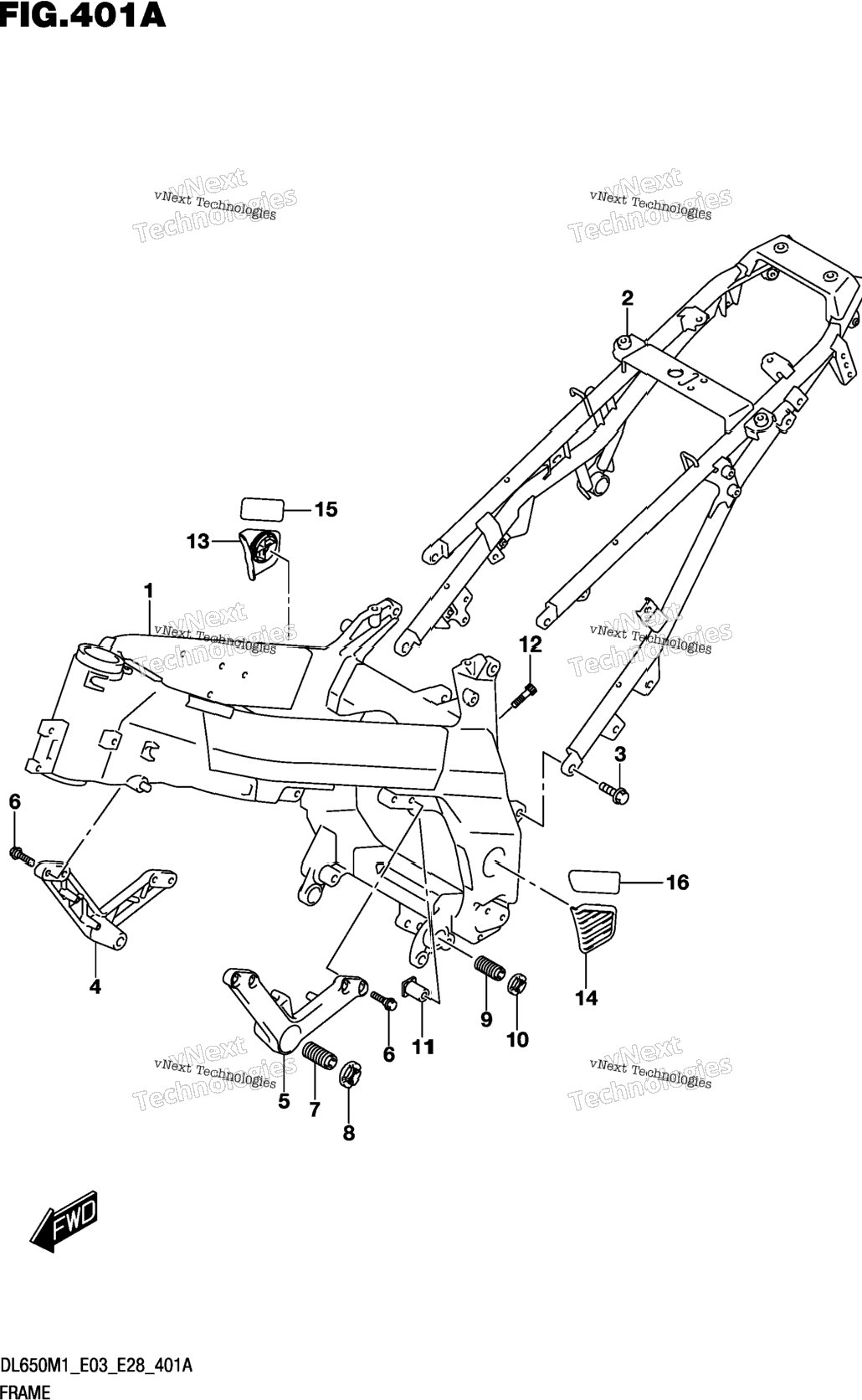

| 1 | 41100-27GB0-YAP | FRAME | 1 шт. | — | |
|
| 2 | 41200-28K01-000 | RAIL,SEAT | 0 шт. | — | |
|
| 3 | 09103-10379-000 | BOLT (10X30) | 0 шт. | — | |
|
| 4 | 41911-06G90-YAP | BRACKET, ENG MTG RH | 1 шт. | — | |
|
| 5 | 41912-06G90-YAP | BRACKET, ENG MTG LH | 1 шт. | — | |
|
| 6 | 09106-08193-000 | BOLT (8X30) | 0 шт. | — | |
|
| 7 | 41923-16G00-000 | BOLT,CRANK CASE ADJUST CTR | 0 шт. | — | |
|
| 8 | 41922-19F20-000 | NUT,CRANK CASE ADJUST CTR | 0 шт. | — | |
|
| 9 | 41921-16G00-000 | BOLT,CASE LWR & RR HEAD ADJ | 0 шт. | — | |
|
| 10 | 41922-33E20-000 | NUT,CRANK CASE ADJUST LWR | 0 шт. | — | |
|
| 11 | 41941-19F01-000 | SPACER,MOUNTING REAR UPPER RH | 0 шт. | — | |
|
| 12 | 09106-08168-000 | BOLT (8X38) | 0 шт. | — | |
|
| 13 | 43585-27G10-000 | COVER,PIVOT RH | 0 шт. | — | |
|
| 14 | 43595-27G00-000 | COVER,PIVOT LH | 0 шт. | — | |
|
| 15 | 43585-28K00-000 | TAPE,FRAME PIVOT RH | 0 шт. | — | |
|
| 16 | 43595-28K00-000 | TAPE,FRAME PIVOT LH | 0 шт. | — | |
|
