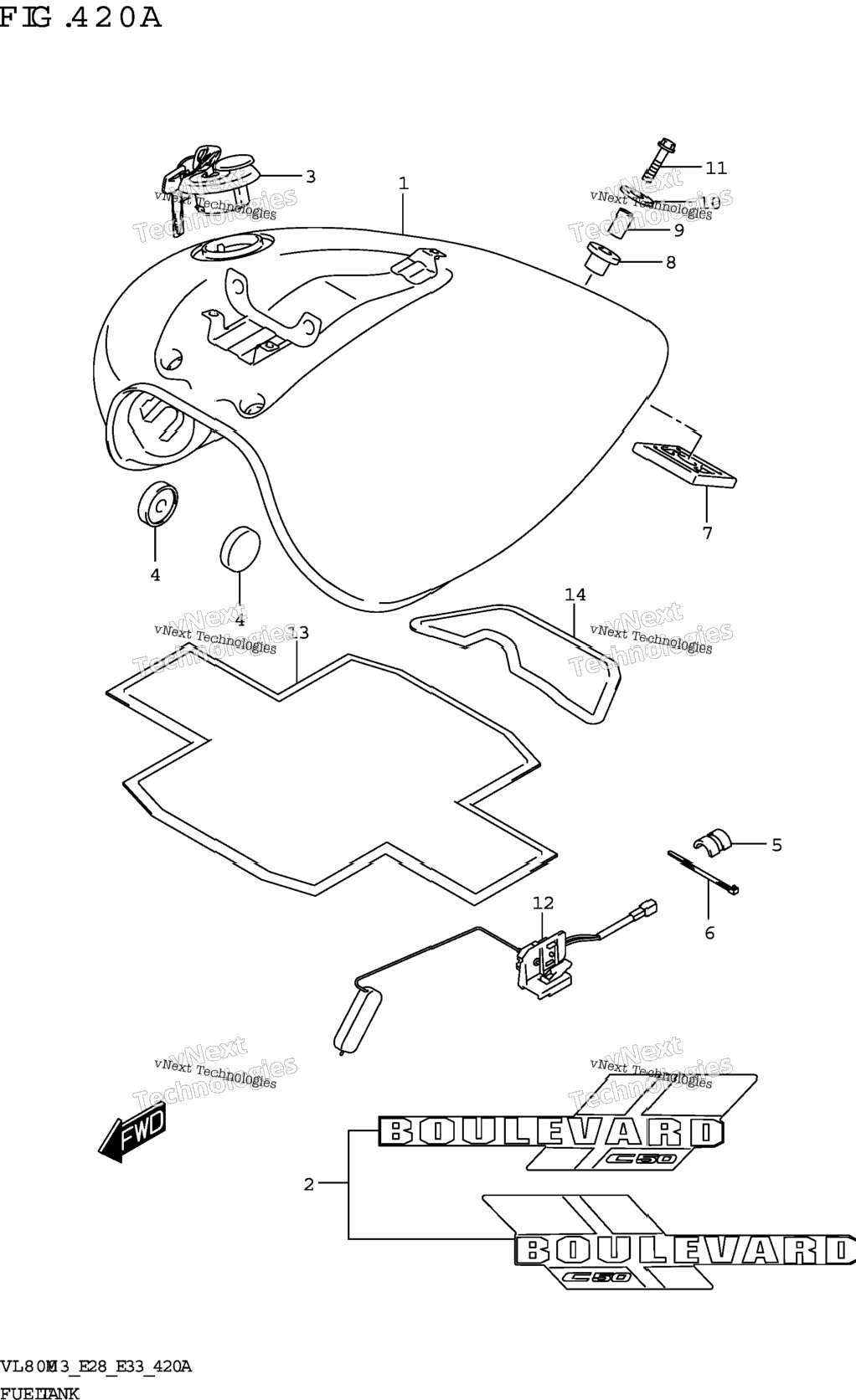

| 1-1 | 44100-43H50-YUD | TANK ASSY,FUEL (GRAY) BODY COLOR:YUD | 1 шт. | — | |
|
| 1-2 | 44100-43H50-YYG | TANK ASSY,FUEL (RED) BODY COLOR:YYG | 1 шт. | — | |
|
| 2-1 | 68110-43H10-B89 | .EMBLEM SET,FUEL TANK BODY COLOR:YUD | 1 шт. | — | |
|
| 2-2 | 68110-43H10-B9A | .EMBLEM SET,FUEL TANK BODY COLOR:YYG | 1 шт. | — | |
|
| 3 | 44200-41841 | CAP SET,FUEL TANK FILLER | 1 шт. | — | |
|
| 4 | 09329-10026 | CUSHION | 2 шт. | — | |
|
| 5 | 44541-14F11 | CUSHION,FUEL TANK LWR | 2 шт. | — | |
|
| 6 | 09407-20405 | CLAMP (L:202) | 2 шт. | — | |
|
| 7 | 44542-41F01 | CUSHION,FUEL TANK RR LWR | 1 шт. | — | |
|
| 8 | 44541-41F02 | CUSHION,FUEL TANK RR UPR | 1 шт. | — | |
|
| 9 | 09180-08227 | SPACER (8.2X12.5X23.5) | 1 шт. | — | |
|
| 10 | 09160-08140 | WASHER (8.5X33X1.6) | 1 шт. | — | |
|
| 11 | 01550-0835A | BOLT | 1 шт. | — | |
|
| 12 | 34810-41F11 | GAUGE ASSY,FUEL LEVEL SENDER | 1 шт. | — | |
|
| 13 | 44192-39G00 | SHIELD,FUEL TANK HEAT | 1 шт. | — | |
|
| 14 | 44191-43H00 | SHIELD,FUEL TANK HEAT NO.2 | 1 шт. | — | |
|
