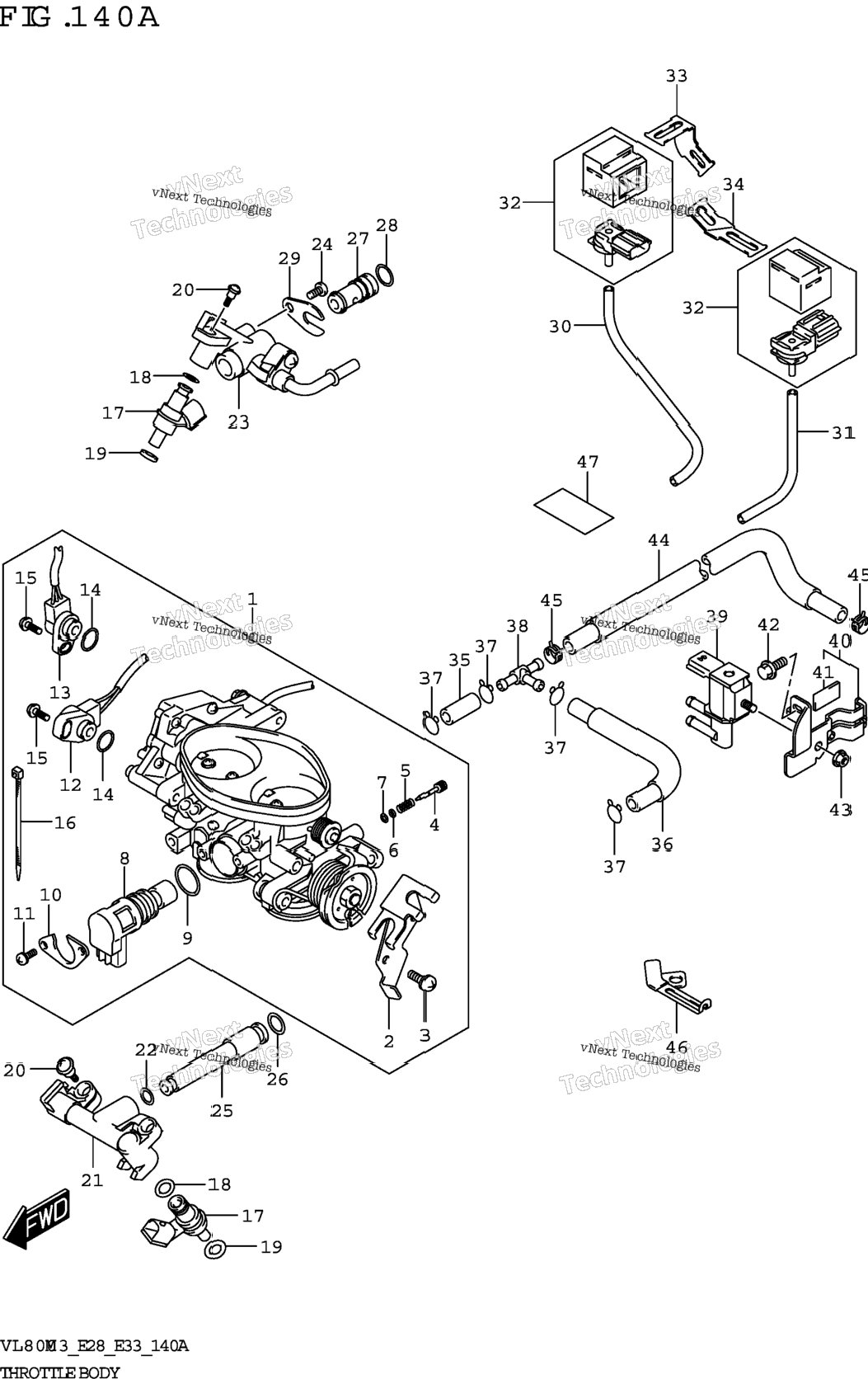

| 1 | 13401-41F51 | BODY ASSY,THROTTLE | 1 шт. | — | |
|
| 2 | 13565-41F20 | .PLATE,STAY | 0 шт. | — | |
|
| 3 | 13601-21H00 | .SCREW | 0 шт. | — | |
|
| 4 | 13269-18G00 | .SCREW,AIR ADJUST | 2 шт. | — | |
|
| 5 | 13271-43E00 | .SPRING | 0 шт. | — | |
|
| 6 | 13291-26E00 | .WASHER | 2 шт. | — | |
|
| 7 | 13295-26E00 | .O RING | 2 шт. | — | |
|
| 8 | 18117-15H12 | .VALVE ASSY, ISC | 1 шт. | — | |
|
| 9 | 18119-05H00 | .O-RING | 1 шт. | — | |
|
| 10 | 13428-15H00 | .PLATE,ISC VALVE | 0 шт. | — | |
|
| 11 | 13605-15H00 | .SCREW | 2 шт. | — | |
|
| 12 | 13580-40F21 | .SENSOR ASSY,THROTTLE NO.1 | 1 шт. | — | |
|
| 13 | 13580-41F01 | .SENSOR ASSY,THROTTLESUB | 1 шт. | — | |
|
| 14 | 13575-40F00 | .O-RING | 2 шт. | — | |
|
| 15 | 13605-40F00 | .SCREW | 2 шт. | — | |
|
| 16 | 09407-14407 | CLAMP (L:145) | 1 шт. | — | |
|
| 17 | 15710-26GB0 | INJECTOR ASSY,FUEL | 2 шт. | — | |
|
| 18 | 15721-21H00 | .O-RING | 2 шт. | — | |
|
| 19 | 15722-21H00 | .RING,SEAL | 2 шт. | — | |
|
| 20 | 13602-34F50 | SCREW,THROTTLE COVER | 4 шт. | — | |
|
| 21 | 13473-41FA0 | PIPE SET,FUEL FR | 1 шт. | — | |
|
| 22 | 15721-24F00 | .O-RING | 1 шт. | — | |
|
| 23 | 13473-41FB0 | PIPE SET,FUEL RR | 1 шт. | — | |
|
| 24 | 13602-10F10 | SCREW | 1 шт. | — | |
|
| 25 | 13473-41FC0 | JOINT | 1 шт. | — | |
|
| 26 | 15721-10G00 | O-RING | 1 шт. | — | |
|
| 27 | 13474-41F20 | PLUG,STRAIGHT | 1 шт. | — | |
|
| 28 | 15721-41F20 | O-RING | 1 шт. | — | |
|
| 29 | 13475-41F20 | PLATE,STAY | 1 шт. | — | |
|
| 30 | 13683-41FA0 | HOSE | 1 шт. | — | |
|
| 31 | 13683-41FD1 | TUBE,RUBBER | 1 шт. | — | |
|
| 32 | 18590-32G00 | SENSOR,AIR PRESSURE | 2 шт. | — | |
|
| 33 | 18598-41F00 | BRACKET,BOOST SENSOR FR | 1 шт. | — | |
|
| 34 | 18599-39G00 | BRACKET,BOOST SENSOR RR | 0 шт. | — | |
|
| 35 | 13683-41FC2 | HOSE | 1 шт. | — | |
|
| 36 | 13682-41F31 | TUBE,RUBBER | 1 шт. | — | |
|
| 37 | 13693-24F00 | CLIP | 4 шт. | — | |
|
| 38 | 13685-48B00 | .NIPPLE | 1 шт. | — | |
|
| 39 | 18117-52G00 | VALVE ASSY,DUTY FOR PURGE | 1 шт. | — | |
|
| 40 | 18119-39G00 | BRACKET,PURGE VALVE | 0 шт. | — | |
|
| 41 | 44894-24A00 | CUSHION (10X30X2) | 1 шт. | — | |
|
| 42 | 01550-0612A | BOLT | 1 шт. | — | |
|
| 43 | 08316-1006A | NUT (6X12) | 1 шт. | — | |
|
| 44 | 13680-39G00 | HOSE,CANISTER PURGE | 0 шт. | — | |
|
| 45 | 09401-10409 | CLIP (ID:10.5,H:8) | 2 шт. | — | |
|
| 46 | 44480-41F00 | CLAMP,EVAP HOSE | 0 шт. | — | |
|
| 47 | 36611-16G00 | TAPE, HARNESS (28X50X0.13) | 1 шт. | — | |
|
