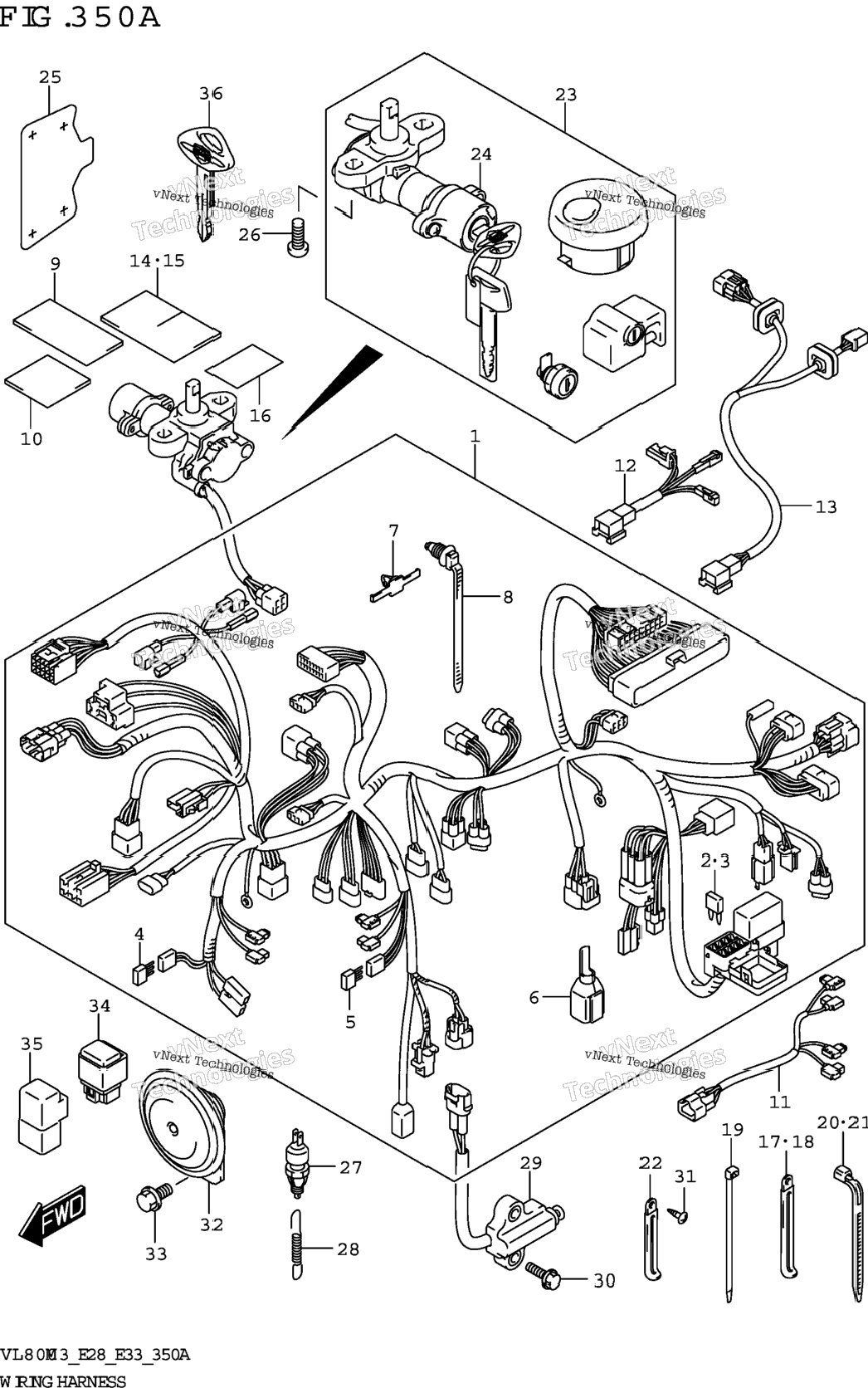

| 1 | 36610-43H70 | HARNESS, WIRING | 1 шт. | — | |
|
| 2 | 09481-10501 | .FUSE (10A) | 5 шт. | — | |
|
| 3 | 09481-20501 | .FUSE (20A) | 0 шт. | — | |
|
| 4 | 32800-16A00 | .RECTIFIER ASSY | 1 шт. | — | |
|
| 5 | 36611-38A10 | .DIODE | 1 шт. | — | |
|
| 6 | 36717-41F00 | .BOOT | 0 шт. | — | |
|
| 7 | 09407-05410 | .CLAMP | 0 шт. | — | |
|
| 8 | 09407-17403 | CLAMP (L:170) | 4 шт. | — | |
|
| 9 | 36611-16G00 | TAPE, HARNESS (28X50X0.13) | 2 шт. | — | |
|
| 10 | 36611-41F00 | PROTECTOR,WIRING HARNESS (30X 0X3) | 0 шт. | — | |
|
| 11 | 36854-39G01 | WIRE,IGNITION COIL LEAD | 1 шт. | — | |
|
| 12 | 36856-41F00 | WIRE,REAR COMB NO.2 | 1 шт. | — | |
|
| 13 | 36858-41F01 | WIRE,RR COMB | 1 шт. | — | |
|
| 14 | 36920-33C00 | PROTECTOR,HARNESS (30X50X3) | 0 шт. | — | |
|
| 15 | 36920-33C00 | PROTECTOR,HARNESS (30X50X3) | 0 шт. | — | |
|
| 16 | 94474-17H00 | PROTECTOR,COWL UNDER (30X20X0 13) | 1 шт. | — | |
|
| 17 | 09404-06030 | CLAMP (L:80) | 0 шт. | — | |
|
| 18 | 09404-06435 | CLAMP (L:135) | 1 шт. | — | |
|
| 19 | 09407-14407 | CLAMP (L:145) | 4 шт. | — | |
|
| 20 | 09407-18402 | CLAMP (L:165) | 1 шт. | — | |
|
| 21 | 09407-19401 | CLAMP (L:190) | 1 шт. | — | |
|
| 22 | 09404-06429 | CLAMP (L:45) | 1 шт. | — | |
|
| 23 | 37102-41881 | LOCK SET | 1 шт. | — | |
|
| 24 | 37100-41F70 | .LOCK ASSY,STEERING | 1 шт. | — | |
|
| 25 | 37187-41F10 | PROTECTOR,IGNITION SW | 1 шт. | — | |
|
| 26 | 09139-08016 | BOLT (8X20) | 2 шт. | — | |
|
| 27 | 37740-24A00 | SWITCH ASSY,STOP LAMP | 1 шт. | — | |
|
| 28 | 09443-06073 | SPRING | 1 шт. | — | |
|
| 29 | 37840-41F01 | SWITCH ASSY,SIDE STAND | 1 шт. | — | |
|
| 30 | 01550-0620A | BOLT | 2 шт. | — | |
|
| 31 | 03541-0512A | SCREW | 1 шт. | — | |
|
| 32 | 38500-41F30 | HORN ASSY | 1 шт. | — | |
|
| 33 | 01550-0816A | BOLT | 1 шт. | — | |
|
| 34 | 38740-24A00 | RELAY ASSY HEAD LAMP | 1 шт. | — | |
|
| 35 | 38740-24X50 | RELAY ASSY | 1 шт. | — | |
|
| 36 | 37146-41FA0 | KEY,BLANK "BOULEVARD" OPT | 1 шт. | — | |
|
